SRMBR - Mini Barbed Rivets
Showing 1-3 of 3
Per page:1-3 of 3

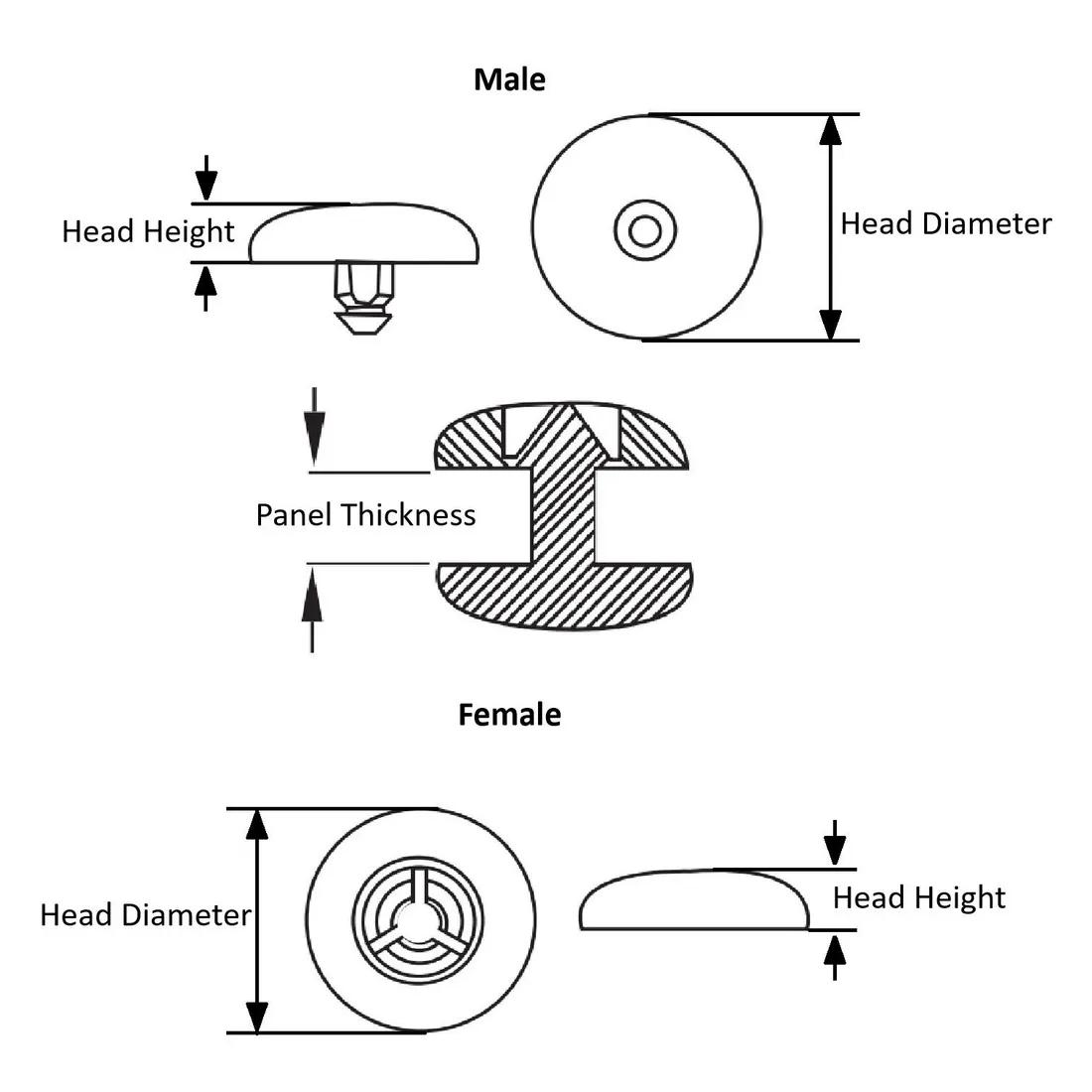

Item Code | Material Flammability Standard | Color | Rivet Type | Hole Diameter | Anchor Length | Head Diameter | Head Height | Panel Thickness | Maximum Operating Temperature | Minimum Operating Temperature | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
MBRP1-100-01 | UL94 V-2 | Natural | Male | 0.125 in | .203 in | 0.400 | 0.090 | 0.100 | 185 °F | -40 °F | Nylon | |
MBRP1-250-01 | UL94 V-2 | Natural | Male | 0.125 in | .353 in | 0.400 | 0.090 | 0.250 | 185 °F | -40 °F | Nylon | |
MBRR1-01 | UL94 V-2 | Natural | Female | - | - | 0.400 | 0.100 | - | 185 °F | -40 °F | Nylon |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
MBRP1-100-01
Material Flammability Standard
UL94 V-2
Color
Natural
Rivet Type
Male
Hole Diameter
0.125 in
MBRP1-250-01
Material Flammability Standard
UL94 V-2
Color
Natural
Rivet Type
Male
Hole Diameter
0.125 in
MBRR1-01
Material Flammability Standard
UL94 V-2
Color
Natural
Rivet Type
Female
Head Diameter
0.400
