SR27STM - Snap Tacks
Showing 1-8 of 8
Per page:1-8 of 8

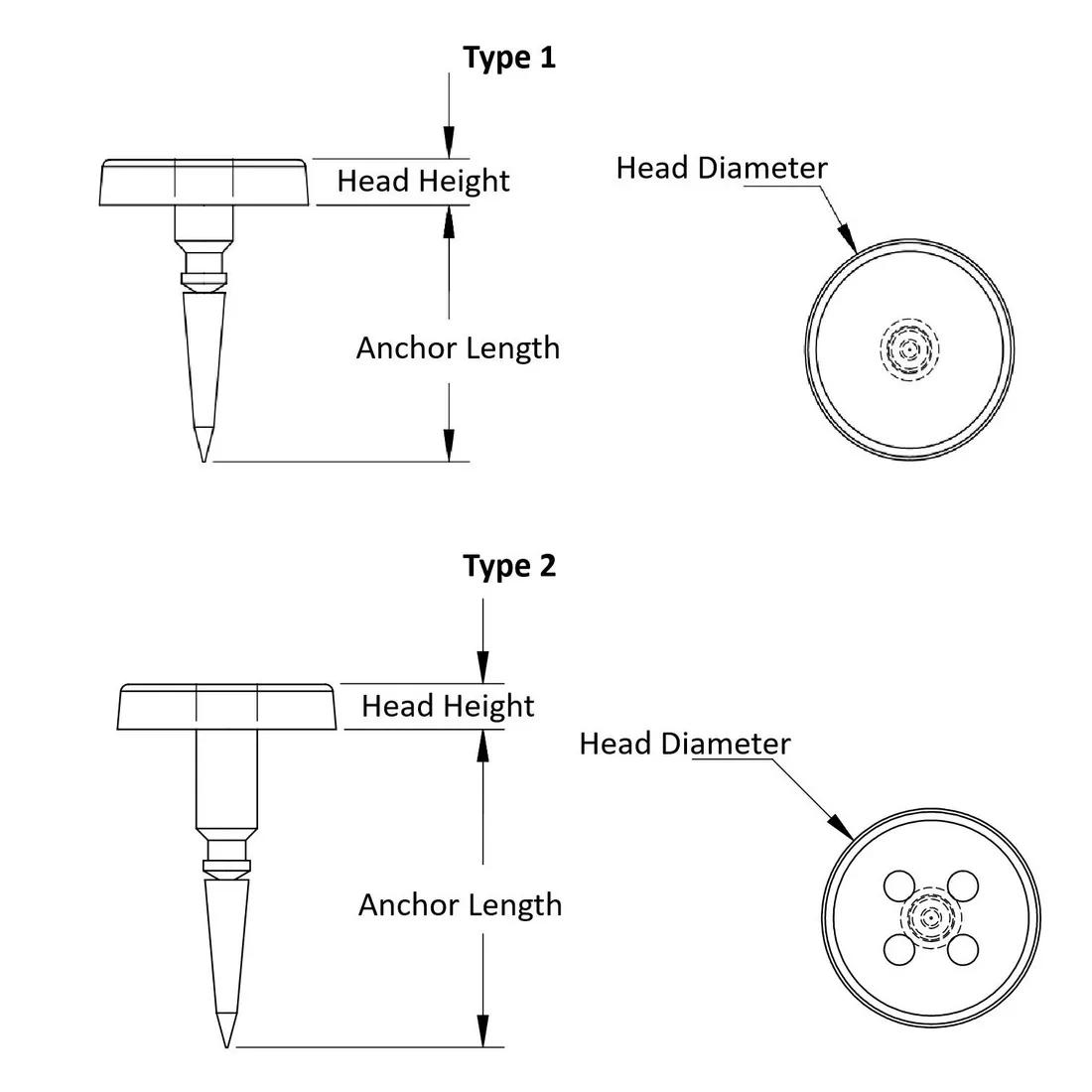

Item Code | Material Flammability Standard | Color | Tack Material | Anchor Length | Head Diameter | Head Height | Panel Thickness | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|
27STM430062B | UL94 V-2 | Black | Acetal | 0.500 in | 0.438 in | 0.094 in | 0.062 in | 1 | |
27STM430125B | UL94 V-2 | Black | Acetal | 0.562 in | 0.438 in | 0.094 in | 0.125 in | 1 | |
27STM430188B | UL94 V-2 | Black | Acetal | 0.625 in | 0.438 in | 0.094 in | 0.188 in | 1 | |
27STMB430188B | UL94 V-2 | Black | Acetal | 0.625 in | 0.438 in | 0.094 in | 0.188 in | 2 | |
27STM430062 | UL94 V-2 | Natural | Acetal | 0.500 in | 0.438 in | 0.094 in | 0.062 in | 1 | |
27STM430125 | UL94 V-2 | Natural | Acetal | 0.562 in | 0.438 in | 0.094 in | 0.125 in | 1 | |
27STM430188 | UL94 V-2 | Natural | Acetal | 0.625 in | 0.438 in | 0.094 in | 0.188 in | 1 | |
27STMB430188 | UL94 V-2 | Natural | Acetal | 0.625 in | 0.438 in | 0.094 in | 0.188 in | 2 |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
27STM430062B
Material Flammability Standard
UL94 V-2
Color
Black
Tack Material
Acetal
Anchor Length
0.500 in
27STM430125B
Material Flammability Standard
UL94 V-2
Color
Black
Tack Material
Acetal
Anchor Length
0.562 in
27STM430188B
Material Flammability Standard
UL94 V-2
Color
Black
Tack Material
Acetal
Anchor Length
0.625 in
27STMB430188B
Material Flammability Standard
UL94 V-2
Color
Black
Tack Material
Acetal
Anchor Length
0.625 in
