SR27MRF - Mini Barbed Rivets
Showing 1-8 of 8
Per page:1-8 of 8

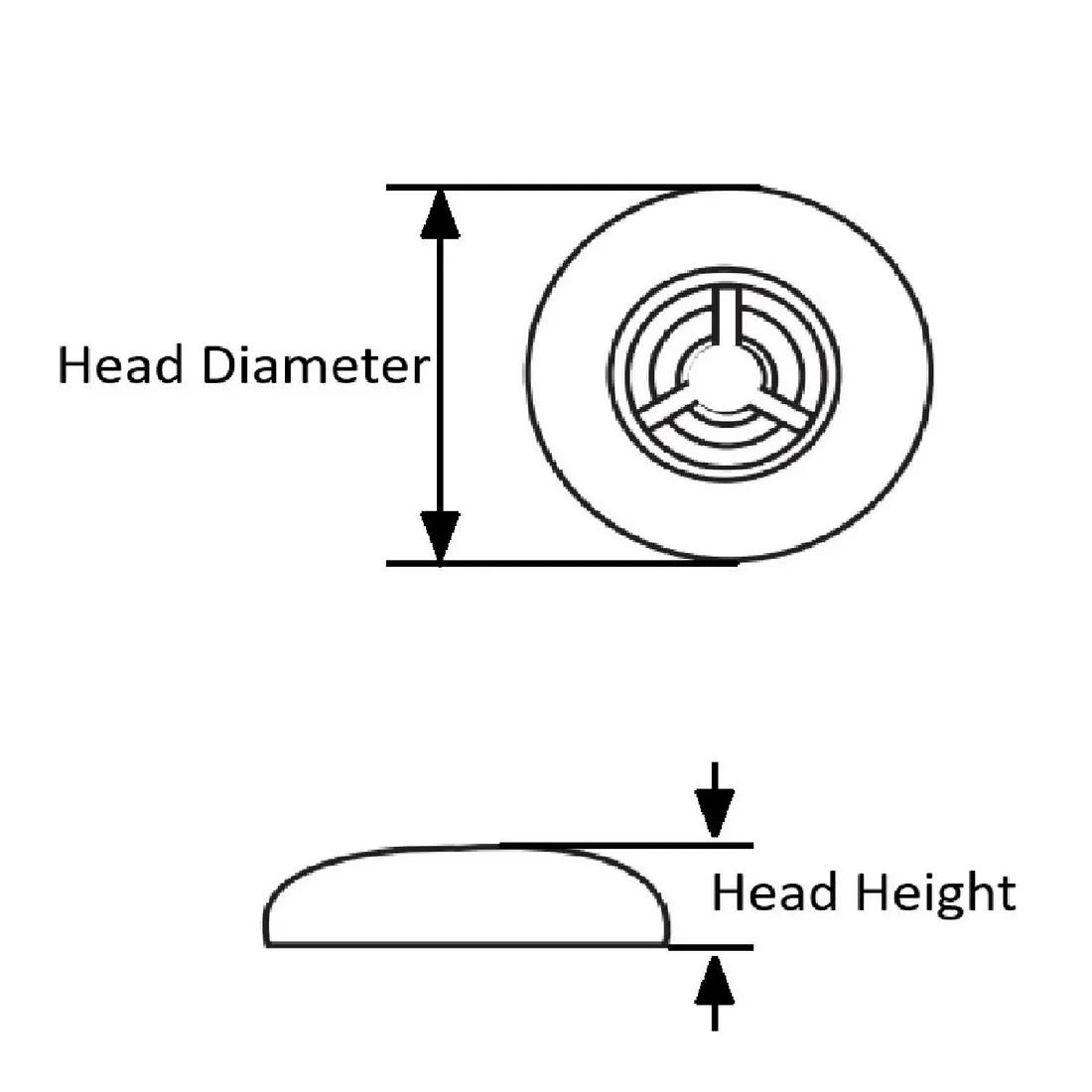

Item Code | Material Flammability Standard | Color | Rivet Type | Head Diameter | Head Height | Maximum Operating Temperature | Minimum Operating Temperature | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|
27MRF12 | UL94 V-2 | Natural | Female | 0.500 in | 0.100 in | 185 °F | -40 °F | Nylon 6/6 | |
27MRF09 | UL94 V-2 | Natural | Female | 0.375 in | 0.075 in | 185 °F | -40 °F | Nylon 6/6 | |
27MRF06 | UL94 V-2 | Natural | Female | 0.250 in | 0.050 in | 185 °F | -40 °F | Nylon 6/6 | |
27MRF22 | UL94 V-2 | Natural | Female | 0.375 in | 0.160 in | 185 °F | -40 °F | Nylon 6/6 | |
27MRF06B | UL94 V-2 | Black | Female | 0.250 | 0.050 | 185 °F | -40 °F | Nylon 6/6 | |
27MRF12B | UL94 V-2 | Black | Female | 0.500 | 0.100 | 185 °F | -40 °F | Nylon 6/6 | |
27MRF09B | UL94 V-2 | Black | Female | 0.375 | 0.075 | 185 °F | -40 °F | Nylon 6/6 | |
27MRF22B | UL94 V-2 | Black | Female | 0.375 in | 0.160 in | - | - | Nylon 6/6 |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
27MRF12
Material Flammability Standard
UL94 V-2
Color
Natural
Rivet Type
Female
Head Diameter
0.500 in
27MRF09
Material Flammability Standard
UL94 V-2
Color
Natural
Rivet Type
Female
Head Diameter
0.375 in
27MRF06
Material Flammability Standard
UL94 V-2
Color
Natural
Rivet Type
Female
Head Diameter
0.250 in
27MRF22
Material Flammability Standard
UL94 V-2
Color
Natural
Rivet Type
Female
Head Diameter
0.375 in
Per page:
1–5 of 9
