SR27AMR - Adjustable Mini Rivets
Showing 1-6 of 6
Per page:1-6 of 6

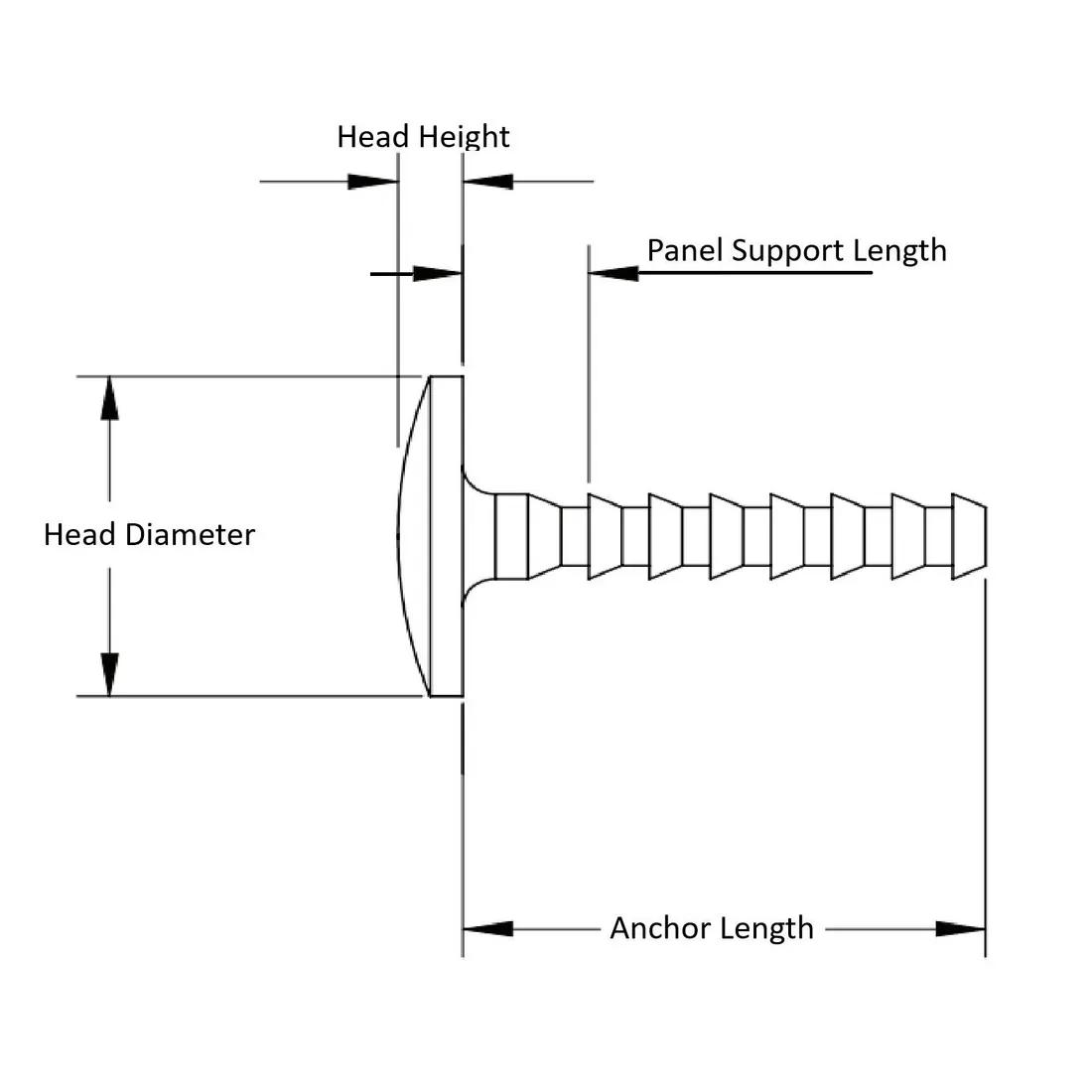

Item Code | Material Flammability Standard | Rivet Type | Anchor Length | Head Height | Maximum Operating Temperature | Panel Support Length | Color | Minimum Operating Temperature | Material | Maximum Panel Thickness | Head Diameter | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
27AMR0940500 | UL94 V-2 | Male Mini Rivet | 0.500 in | 0.062 in | 185 °F | 0.118 in | Natural | -40 °F | Nylon 6/6 | 0.375 in | 0.354 in | 0.062 in | |
27AMR1252187 | UL94 V-2 | Male Mini Rivet | 2.312 in | 0.062 in | 185 °F | 0.118 in | Natural | -40 °F | Nylon 6/6 | 2.188 in | 0.500 in | 0.125 in | |
27AMR0940375 | UL94 V-2 | Male Mini Rivet | 0.375 in | 0.062 in | 185 °F | 0.118 in | Natural | -58 °F | Nylon 6/6 | 0.290 in | 0.354 in | 0.070 in | |
27AMR0940375B | UL94 V-2 | Male Mini Rivet | 0.375 in | 0.062 in | - | 0.118 in | Black | - | Nylon 6/6 | 0.290 in | 0.354 in | 0.070 in | |
27AMR0940500B | UL94 V-2 | Male Mini Rivet | 0.500 in | 0.062 in | - | 0.118 in | Black | - | Nylon 6/6 | 0.375 in | 0.354 in | 0.062 in | |
27AMR1252187B | UL94 V-2 | Male Mini Rivet | 2.312 in | 0.062 in | - | 0.118 in | Black | - | Nylon 6/6 | 2.188 in | 0.500 in | 0.125 in |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
27AMR0940500
Material Flammability Standard
UL94 V-2
Rivet Type
Male Mini Rivet
Anchor Length
0.500 in
Head Height
0.062 in
27AMR1252187
Material Flammability Standard
UL94 V-2
Rivet Type
Male Mini Rivet
Anchor Length
2.312 in
Head Height
0.062 in
27AMR0940375
Material Flammability Standard
UL94 V-2
Rivet Type
Male Mini Rivet
Anchor Length
0.375 in
Head Height
0.062 in
27AMR0940375B
Material Flammability Standard
UL94 V-2
Rivet Type
Male Mini Rivet
Material
Nylon 6/6
Anchor Length
0.375 in
Per page:
1–5 of 7
