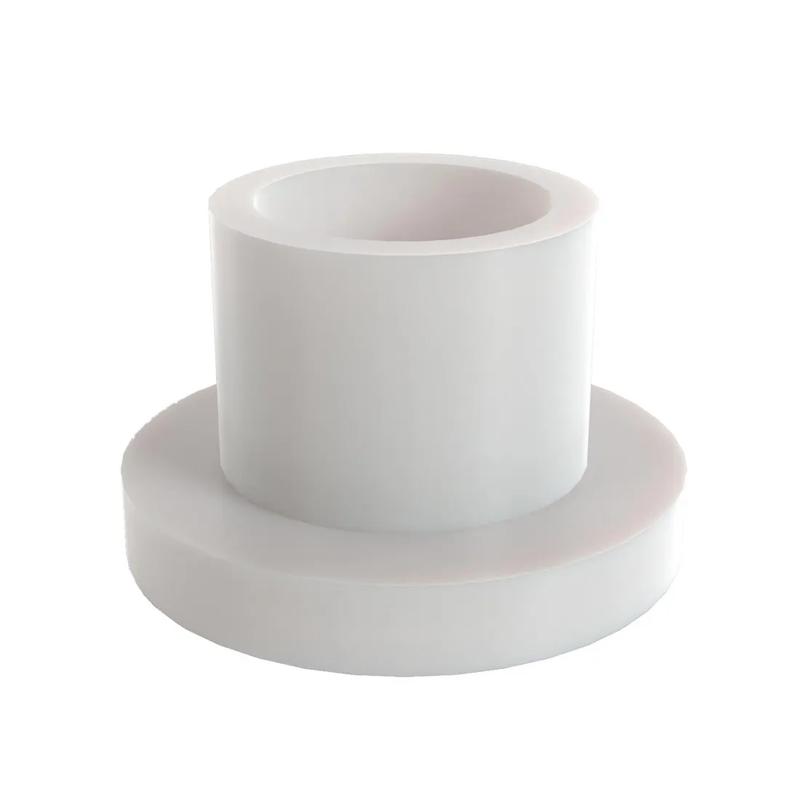

SRMNI - Screw Insulator
Showing 1-10 of 23
Per page:1-10 of 23
Item Code | Material Flammability Standard | Color | Minimum Outside Diameter | Thickness | Outside Diameter | Washer Shape | Flange Outside Diameter | Minimum Operating Temperature | Thread Size | Material | Inside Diameter | UL/CSA Description | Washer Type | Base Height | Maximum Outside Diameter | Flange Height | Maximum Operating Temperature | Base Outside Diameter | Overall Height | Screw Size | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MNI-10-8 | UL94 V-2 | Natural | 6.6 mm | 3.2 mm | 0.399 in | Cylindrical with Flange | 0.399 in | -40 | #10;M5 | Nylon 6/6 | 5.1 | UL E70062 | Insulator Washer | 0.125 in | 10.1 mm | 1.6 | 85 | 0.260 in | - | - | |
MNI-M2.5-1.3 | UL94 V-2 | Natural | 3.5 mm | 1.3 mm | 0.248 in | Cylindrical with Flange | 0.248 in | -40 | #4;M2.5 | Nylon 6/6 | 2.9 | UL E70062 | Insulator Washer | 0.051 in | 6.3 mm | 1.2 | 85 | 0.138 in | - | - | |
MNI-10-4 | UL94 V-2 | Natural | 6.6 mm | 1.6 mm | 0.399 in | Cylindrical with Flange | 0.399 in | -40 | #10;M5 | Nylon 6/6 | 5.1 | UL E70062 | Insulator Washer | 0.063 in | 10.1 mm | 1.6 | 85 | 0.260 in | - | - | |
MNI-6-16 | UL94 V-2 | Natural | 4.3 mm | 6.4 mm | 0.290 in | Cylindrical with Flange | 0.290 in | -40 | #6;M3.5 | Nylon 6/6 | 3.6 | UL E70062 | Insulator Washer | 0.250 in | 7.4 mm | 1.2 | 85 | 0.170 in | - | - | |
MNI-M2.5-3.6 | UL94 V-2 | Natural | 3.8 mm | 3.6 mm | 0.280 in | Cylindrical with Flange | 0.280 in | -40 | #4;M2.5 | Nylon 6/6 | 2.8 | UL E70062 | Insulator Washer | 0.142 in | 7.1 mm | 1.5 | 85 | 0.150 in | - | - | |
MNI-10-6 | UL94 V-2 | Natural | 6.6 mm | 2.4 mm | 0.399 in | Cylindrical with Flange | 0.399 in | -40 | #10;M5 | Nylon 6/6 | 5.1 | UL E70062 | Insulator Washer | 0.093 in | 10.1 mm | 1.6 | 85 | 0.260 in | - | - | |
MNIM3-3.5 | UL94 V-2 | Natural | 3.8 mm | 3.5 mm | 0.280 in | Cylindrical with Flange | 0.280 in | -40 | #5;M3 | Nylon 6/6 | 3.1 | UL E70062 | Insulator Washer | 0.137 in | 7.1 mm | 1.0 | 85 | 0.150 in | - | - | |
MNI-4-5 | UL94 V-2 | Natural | 3.6 mm | 2.1 mm | 0.235 in | Cylindrical with Flange | 0.235 in | -40 | #4;M2.5 | Nylon 6/6 | 2.9 | UL E70062 | Insulator Washer | 0.084 in | 6.4 mm | 1.2 | 85 | 0.140 in | - | - | |
MNI-8-12 | UL94 V-2 | Natural | 5.2 mm | 4.7 mm | 0.205 in | Cylindrical with Flange | 0.205 in | -40 | #8;M4 | Nylon 6/6 | 4.4 | UL E70062 | Insulator Washer | 0.187 in | 8.7 mm | 1.6 | 85 | 0.205 in | - | - |
Per page:
1-10 of 23
1–5 of 23 variants
Per page:
MNI-10-8
Material Flammability Standard
UL94 V-2
Color
Natural
Minimum Outside Diameter
6.6 mm
Thickness
3.2 mm
MNI-M2.5-1.3
Material Flammability Standard
UL94 V-2
Color
Natural
Minimum Outside Diameter
3.5 mm
Thickness
1.3 mm
MNI-10-4
Material Flammability Standard
UL94 V-2
Color
Natural
Minimum Outside Diameter
6.6 mm
Thickness
1.6 mm
MNI-6-16
Material Flammability Standard
UL94 V-2
Color
Natural
Minimum Outside Diameter
4.3 mm
Thickness
6.4 mm
Per page:
1–5 of 24
