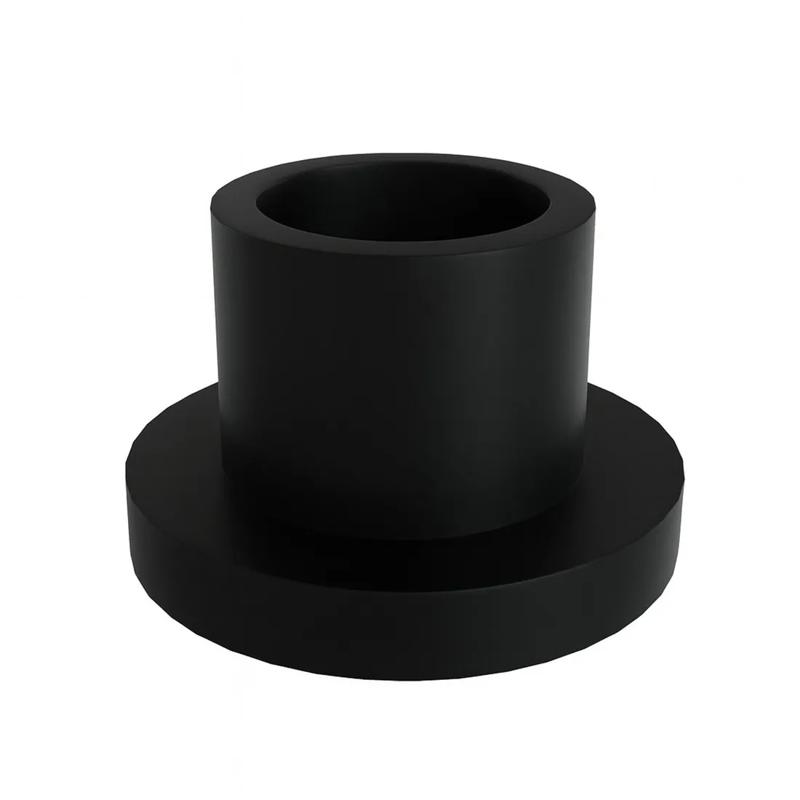

SRMNI-HT - High Temperature Screw Insulator
Showing 1-3 of 3
Per page:1-3 of 3
Item Code | Material Flammability Standard | Color | Inside Diameter | Minimum Outside Diameter | Thickness | Outside Diameter | Washer Shape | Flange Outside Diameter | Minimum Operating Temperature | Thread Size | Material | Washer Type | Base Height | Maximum Outside Diameter | Flange Height | Maximum Operating Temperature | Base Outside Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MNI-HT-4-220 | UL94 V-0 | Black | 2.9 | 3.4 mm | 0.8 mm | 0.215 in | Cylindrical with Flange | 0.215 in | -40 | #4;M2.5 | 40% Glass Filled PPS | Insulation Washer | 0.220 in | 5.5 mm | 1.0 | 220 | 0.135 in | |
MNI-HT-10-6 | UL94 V-0 | Black | 5.1 | 6.6 mm | 2.4 mm | 0.399 in | Cylindrical with Flange | 0.399 in | -40 | #10;M5 | 40% Glass Filled PPS | Insulation Washer | 0.093 in | 10.1 mm | 1.6 | 220 | 0.260 in | |
MNI-HT-4-2 | UL94 V-0 | Black | 3.0 | 3.7 mm | 0.8 mm | 0.280 in | Cylindrical with Flange | 0.280 in | -40 | #4;M2.5 | 40% Glass Filled PPS | Insulation Washer | 0.031 in | 7.1 mm | 1.2 | 220 | 0.145 in |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
MNI-HT-4-220
Material Flammability Standard
UL94 V-0
Color
Black
Inside Diameter
2.9
Minimum Outside Diameter
3.4 mm
MNI-HT-10-6
Material Flammability Standard
UL94 V-0
Color
Black
Inside Diameter
5.1
Minimum Outside Diameter
6.6 mm
MNI-HT-4-2
Material Flammability Standard
UL94 V-0
Color
Black
Inside Diameter
3.0
Minimum Outside Diameter
3.7 mm
