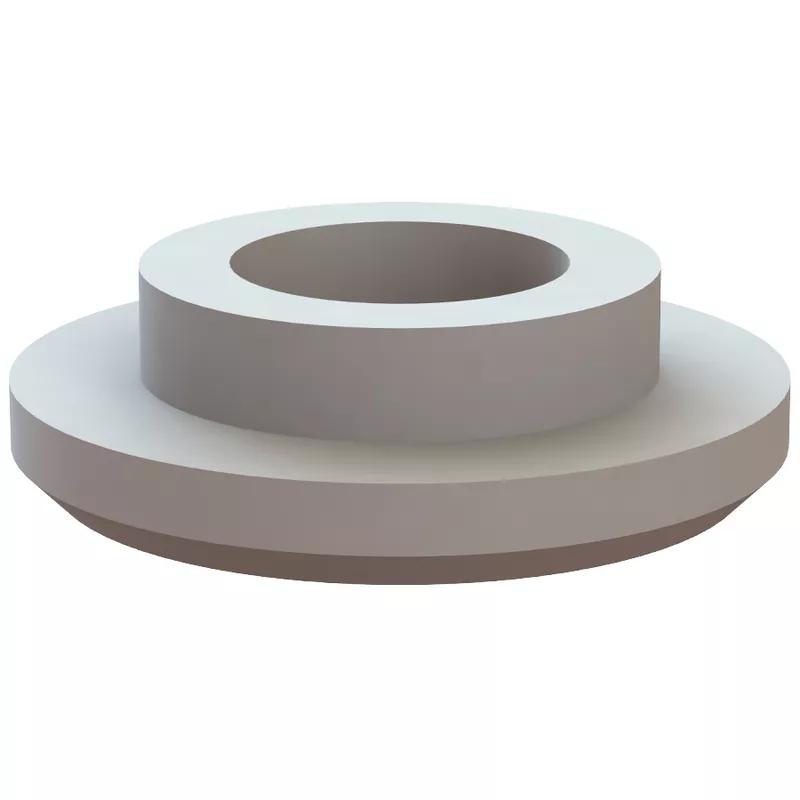

SR24SW - Shoulder Washers
Showing 1-10 of 14
Per page:1-10 of 14
Item Code | Color | Material | Inside Diameter | Base Height | Outside Diameter | Flange Height | Base Outside Diameter | Material Flammability Standard | Screw Size | Overall Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
24SW0010B | Black | Nylon 6/6 | 0.201 in | 0.050 in | 0.437 in | 0.050 in | 0.281 in | UL94 V-2 | #10 | - | |
24SW0002B | Black | Nylon 6/6 | 0.093 in | 0.040 in | 0.250 in | 0.040 in | 0.156 in | UL94 V-2 | #2 | 0.080 in | |
24SW0002 | Natural | Nylon 6/6 | 0.093 in | 0.040 in | 0.250 in | 0.040 | 0.156 in | UL94 V-2 | #2 | 0.440 in | |
24SW0004B | Black | Nylon 6/6 | 0.122 in | 0.040 in | 0.281 in | 0.040 in | 0.187 in | UL94 V-2 | #4 | 0.080 in | |
24SW0006 | Natural | Nylon 6/6 | 0.146 in | 0.040 in | 0.328 in | 0.040 in | 0.218 in | UL94 V-2 | #6 | 0.080 in | |
24SW0004 | Natural | Nylon 6/6 | 0.122 in | 0.040 in | 0.281 in | 0.040 in | 0.187 in | UL94 V-2 | #4 | 0.080 in | |
24SW0006B | Black | Nylon 6/6 | 0.146 in | 0.040 in | 0.328 in | 0.040 in | 0.218 in | UL94 V-2 | #6 | 0.080 in | |
24SW0250 | Natural | Nylon 6/6 | 0.260 in | 0.060 in | 0.562 in | 0.060 in | 0.375 in | UL94 V-2 | 1/4 in | 0.120 in | |
24SW0008B | Black | Nylon 6/6 | 0.174 in | 0.050 in | 0.375 in | 0.050 in | 0.250 in | UL94 V-2 | #8 | 0.100 in |
Per page:
1-10 of 14
1–5 of 14 variants
Per page:
24SW0010B
Color
Black
Material
Nylon 6/6
Inside Diameter
0.201 in
Base Height
0.050 in
24SW0002B
Color
Black
Material
Nylon 6/6
Inside Diameter
0.093 in
Base Height
0.040 in
24SW0002
Color
Natural
Material
Nylon 6/6
Inside Diameter
0.093 in
Base Height
0.040 in
24SW0004B
Color
Black
Material
Nylon 6/6
Inside Diameter
0.122 in
Base Height
0.040 in
Per page:
1–5 of 15
