SR16CW - Cup Washers
Showing 1-10 of 34
Per page:1-10 of 34

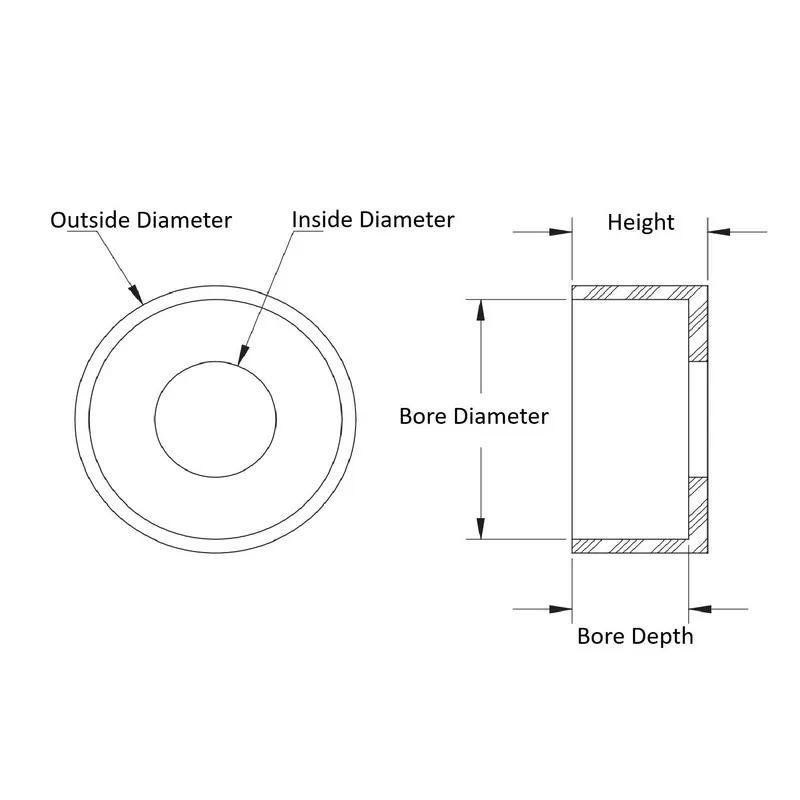

Item Code | Material Flammability Standard | Color | Inside Diameter | Outside Diameter | Height | Bore Depth | Bore Diameter | Thread Size | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
16CW312500B | UL94 V-2 | Black | 8.7 mm | 22.2 mm | 12.7 mm | 9.6 mm | 15.9 mm | 5/16 in | Nylon 6/6 | |
16CW008040B | UL94 V-2 | Black | 4.3 mm | 10.5 mm | 5.2 mm | 4.2 mm | 9.0 mm | #8 | Nylon 6/6 | |
16CW010040B | UL94 V-2 | Black | 4.9 mm | 11.9 mm | 5.9 mm | 4.8 mm | 10.4 mm | #10 | Nylon 6/6 | |
16CW004040B | UL94 V-2 | Black | 2.9 mm | 7.8 mm | 4.0 mm | 3.0 mm | 6.2 mm | #4 | Nylon 6/6 | |
16CW375225B | UL94 V-2 | Black | 9.7 mm | 25.4 mm | 5.7 mm | 3.2 mm | 19.1 mm | 3/8 in | Nylon 6/6 | |
16CW008041B | UL94 V-2 | Black | 4.3 mm | 10.5 mm | 4.3 mm | 3.3 mm | 9.0 mm | #8 | Nylon 6/6 | |
16CW006040B | UL94 V-2 | Black | 3.6 mm | 9.1 mm | 4.6 mm | 3.6 mm | 7.6 mm | #6 | Nylon 6/6 | |
16CW312050B | UL94 V-2 | Black | 8.1 mm | 12.7 mm | 4.3 mm | 3.1 mm | 10.2 mm | 5/16 in | Nylon 6/6 | |
16CW312375B | UL94 V-2 | Black | 8.7 mm | 22.2 mm | 9.5 mm | 6.4 mm | 15.9 mm | 5/16 in | Nylon 6/6 |
Per page:
1-10 of 34
1–5 of 34 variants
Per page:
16CW312500B
Material Flammability Standard
UL94 V-2
Color
Black
Inside Diameter
8.7 mm
Outside Diameter
22.2 mm
16CW008040B
Material Flammability Standard
UL94 V-2
Color
Black
Inside Diameter
4.3 mm
Outside Diameter
10.5 mm
16CW010040B
Material Flammability Standard
UL94 V-2
Color
Black
Inside Diameter
4.9 mm
Outside Diameter
11.9 mm
16CW004040B
Material Flammability Standard
UL94 V-2
Color
Black
Inside Diameter
2.9 mm
Outside Diameter
7.8 mm
Per page:
1–5 of 35
