SR12SWS - Shoulder Washers
Showing 1-10 of 149
Per page:1-10 of 149

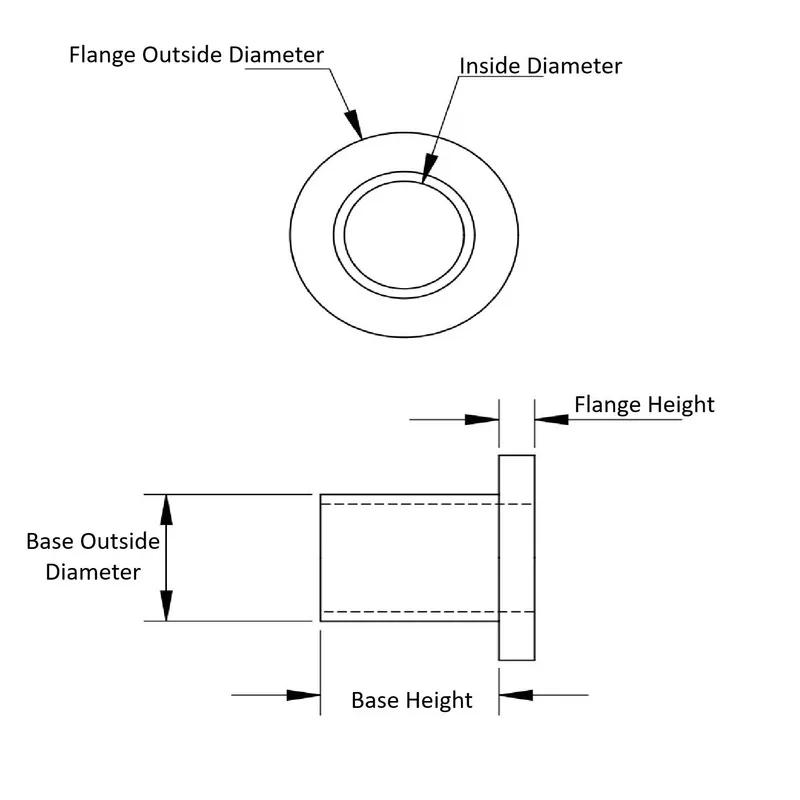

Item Code | Color | Material | Inside Diameter | Flange Height | Thickness | Base Height | Outside Diameter | Flange Outside Diameter | Minimum Operating Temperature | Maximum Operating Temperature | Base Outside Diameter | Material Flammability Standard | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
12SWS0210 | Natural | Nylon 6/6 | 3.1 mm | 0.4 mm | - | - | - | - | - | - | - | - | |
12SWS1240 | Natural | Nylon 6/6 | 6.4 | 1.6 | 0.187 in | 0.187 in | 0.375 in | 0.630 in | -40 °F | 185 °F | 0.375 in | - | |
12SWS1221 | Natural | Nylon 6/6 | 6.6 mm | 1.6 mm | - | - | - | - | - | - | - | - | |
12SWS1016 | Natural | Nylon 6/6 | 4.2 | 3.2 | 0.437 in | 0.437 in | 0.250 in | 0.250 in | -40 °F | 185 °F | 0.250 in | - | |
12SWS1020 | Natural | Nylon 6/6 | 4.9 | 1.6 | 0.063 in | 0.063 in | 0.640 in | 0.640 in | -40 °F | 185 °F | 0.380 in | - | |
12SWS0193 | Natural | Nylon 6/6 | 0.093 | 0.031 | 0.031 in | 0.040 | 0.250 in | 0.250 | -40 °F | 185 °F | 0.140 | UL94 V-2 | |
12SWS0198 | Natural | Nylon 6/6 | 0.115 | 0.031 | 0.062 in | 0.031 | 0.200 in | 0.200 | -40 °F | 185 °F | 0.140 | UL94 V-2 | |
12SWS0310 | Natural | Nylon 6/6 | 0.125 | 0.047 | 0.297 in | 0.250 | 0.250 in | 0.250 | -40 °F | 185 °F | 0.156 | UL94 V-2 | |
12SWS0187 | Natural | Nylon 6/6 | 0.089 | 0.031 | 0.031 in | 0.016 | 0.187 in | 0.187 | -40 °F | 185 °F | 0.119 | UL94 V-2 |
Per page:
1-10 of 149
1–5 of 149 variants
Per page:
12SWS0210
Color
Natural
Material
Nylon 6/6
Inside Diameter
3.1 mm
Flange Height
0.4 mm
12SWS1240
Color
Natural
Inside Diameter
6.4
Thickness
0.187 in
Base Height
0.187 in
12SWS1221
Color
Natural
Material
Nylon 6/6
Inside Diameter
6.6 mm
Flange Height
1.6 mm
12SWS1016
Color
Natural
Inside Diameter
4.2
Thickness
0.437 in
Base Height
0.437 in
Per page:
1–5 of 150
