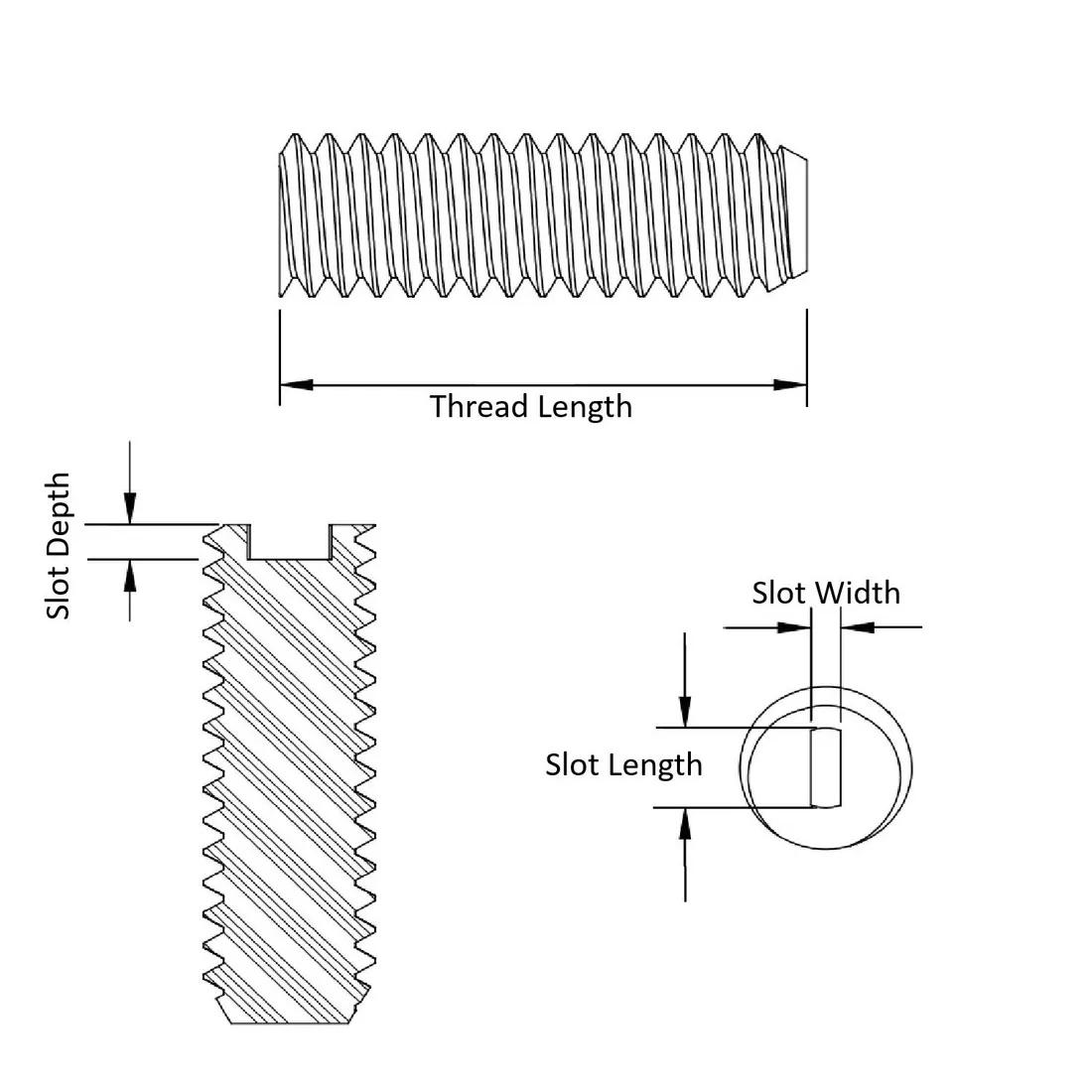

SR50R - Slotted Grub Set Screw
Showing 1-10 of 59
Per page:1-10 of 59
Item Code | Slot Depth | Slot Length | Material Flammability Standard | Color | Slot Width | Thread Length | Thread Size | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|
50M040070R008 | 0.76 mm | 2.0 mm | UL94 V-2 | Natural | 0.64 mm | 8.0 mm | M4 x 0.7 | Nylon 6/6 | |
50M040070R016 | 0.76 mm | 2.0 mm | UL94 V-2 | Natural | 0.64 mm | 16.0 mm | M4 x 0.7 | Nylon 6/6 | |
50M040070R012 | 0.76 mm | 2.0 mm | UL94 V-2 | Natural | 0.64 mm | 12.0 mm | M4 x 0.7 | Nylon 6/6 | |
50M050080R025 | 1.3 mm | 3.3 mm | UL94 V-2 | Natural | 0.89 mm | 25.0 mm | M5 x 0.8 | Nylon 6/6 | |
50M040070R025 | 0.76 mm | 2.0 mm | UL94 V-2 | Natural | 0.64 mm | 25.0 mm | M4 x 0.7 | Nylon 6/6 | |
50M060100R008 | 1.5 mm | 4.1 mm | UL94 V-2 | Natural | 1.0 mm | 8.0 mm | M6 x 1.0 | Nylon 6/6 | |
50M050080R030 | 1.3 mm | 3.3 mm | UL94 V-2 | Natural | 0.89 mm | 30.0 mm | M5 x 0.8 | Nylon 6/6 | |
50M060100R060 | 1.5 mm | 4.1 mm | UL94 V-2 | Natural | 1.0 mm | 60.0 mm | M6 x 1.0 | Nylon 6/6 | |
50M080125R020 | 2.2 mm | 5.1 mm | UL94 V-2 | Natural | 1.6 mm | 20.0 mm | M8 x 1.25 | Nylon 6/6 |
Per page:
1-10 of 59
1–5 of 59 variants
Per page:
50M040070R008
Slot Depth
0.76 mm
Slot Length
2.0 mm
Material Flammability Standard
UL94 V-2
Color
Natural
50M040070R016
Slot Depth
0.76 mm
Slot Length
2.0 mm
Material Flammability Standard
UL94 V-2
Color
Natural
50M040070R012
Slot Depth
0.76 mm
Slot Length
2.0 mm
Material Flammability Standard
UL94 V-2
Color
Natural
50M050080R025
Slot Depth
1.3 mm
Slot Length
3.3 mm
Material Flammability Standard
UL94 V-2
Color
Natural
Per page:
1–5 of 60
