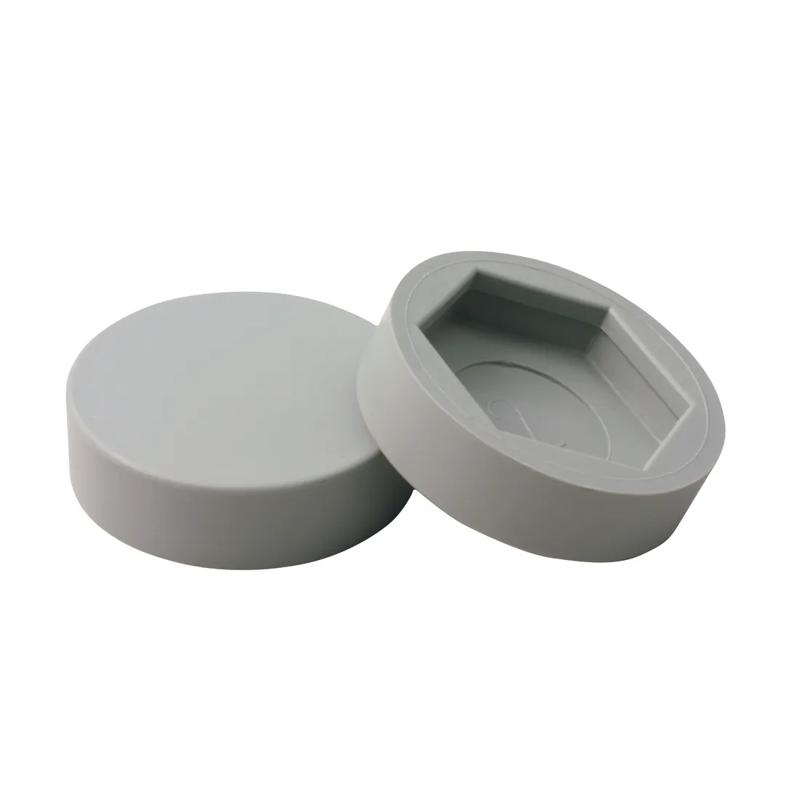

SRHGB - Ohio Nut and Bolt Caps
Showing 1-3 of 3
Per page:1-3 of 3

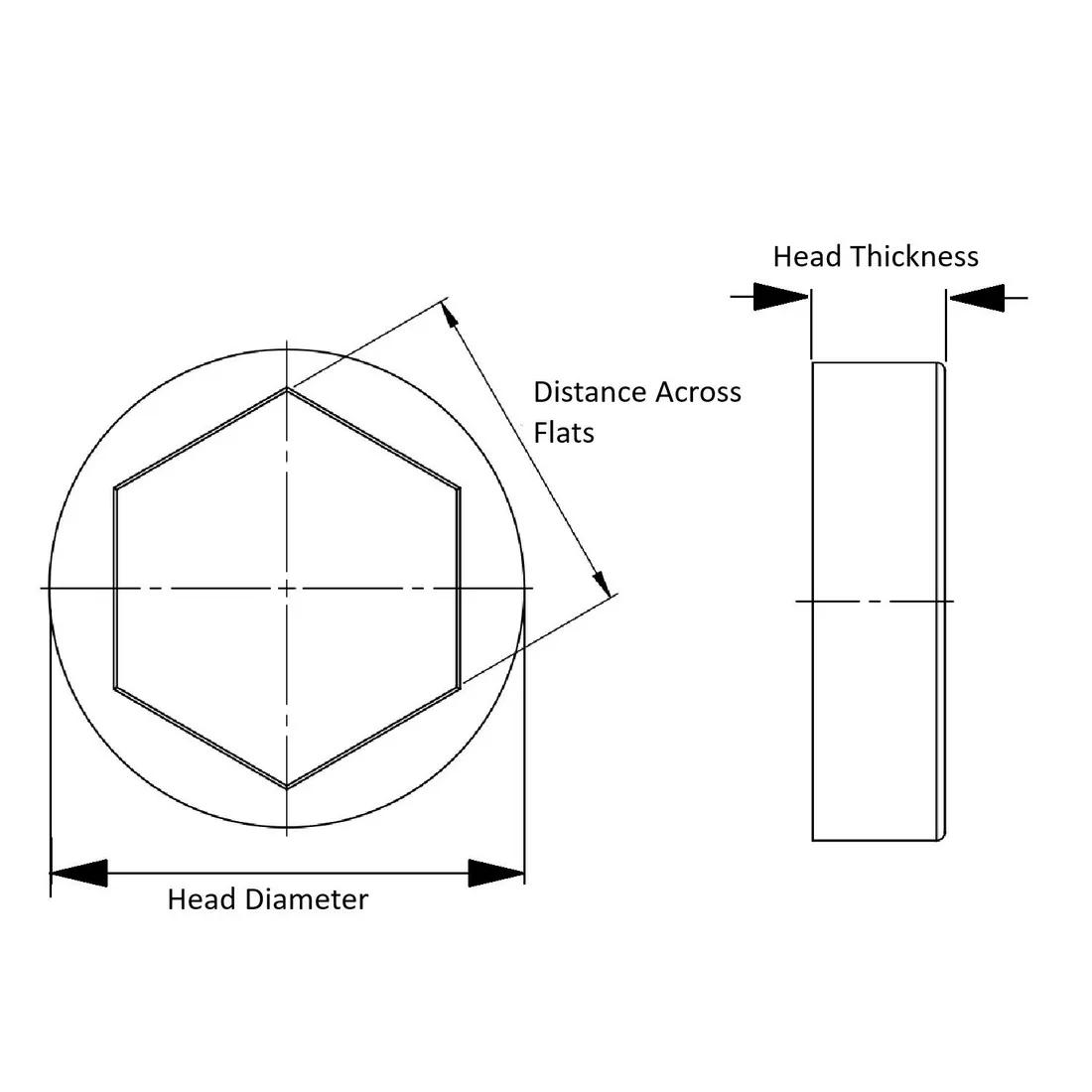

Item Code | Material | Distance Across Flats | Bolt Size | Color | Head Thickness | Head Diameter | Request Quote |
|---|---|---|---|---|---|---|---|
HBG1020A | Elastomeric PE | 0.811 in | 3/8-16, M10 | Gray | 0.125 in | 0.875 in | |
HBG1010A | Elastomeric PE | 0.681 in | 5/16-18, M8 | Gray | 0.093 in | 0.750 in | |
HBG1030A | Elastomeric PE | - | 1/2-13 | Gray | 0.156 in | 1.062 in |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
HBG1020A
Material
Elastomeric PE
Distance Across Flats
0.811 in
Bolt Size
3/8-16, M10
Color
Gray
HBG1010A
Material
Elastomeric PE
Distance Across Flats
0.681 in
Bolt Size
5/16-18, M8
Color
Gray
HBG1030A
Material
Elastomeric PE
Bolt Size
1/2-13
Color
Gray
Head Thickness
0.156 in
