SR0425020LPN - License Plate Fasteners
Showing 1-4 of 4
Per page:1-4 of 4

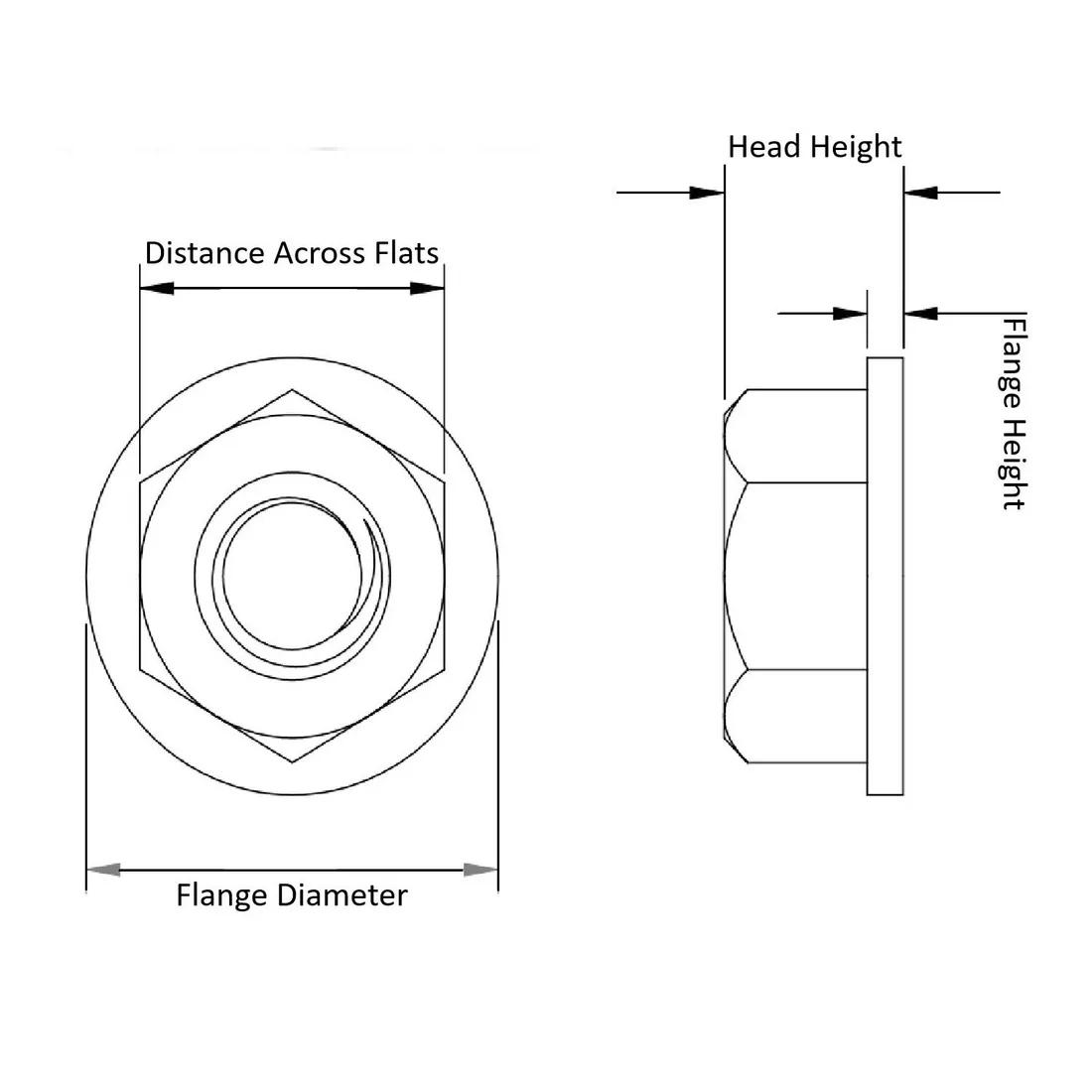

Item Code | Material Flammability Standard | Color | Flange Diameter | Distance Across Flats | Head Height | Flange Height | Thread Size | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|
0425020LPNSB | UL94 V-2 | Black | 0.685 in | 0.425 in | 0.235 in | 0.035 in | 1/4-20 | Nylon 6/6 | |
0425020LPN | UL94 V-2 | Natural | 0.575 in | 0.425 in | 0.250 in | 0.050 in | 1/4-20 | Nylon 6/6 | |
0425020LPNS | UL94 V-2 | Natural | 0.685 | 0.425 in | 0.235 | 0.035 in | 1/4-20 | Nylon 6/6 | |
0425020LPNB | UL94 V-2 | Black | 0.575 in | 0.425 in | 0.250 in | 0.050 in | 1/4-20 | Nylon 6/6 |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
0425020LPNSB
Material Flammability Standard
UL94 V-2
Color
Black
Flange Diameter
0.685 in
Distance Across Flats
0.425 in
0425020LPN
Material Flammability Standard
UL94 V-2
Color
Natural
Flange Diameter
0.575 in
Distance Across Flats
0.425 in
0425020LPNS
Material Flammability Standard
UL94 V-2
Color
Natural
Flange Diameter
0.685
Distance Across Flats
0.425 in
0425020LPNB
Material Flammability Standard
UL94 V-2
Color
Black
Flange Diameter
0.575 in
Distance Across Flats
0.425 in
