SRRFRT-G - Two Way Rotary Damper
Showing 1-10 of 15
Per page:1-10 of 15

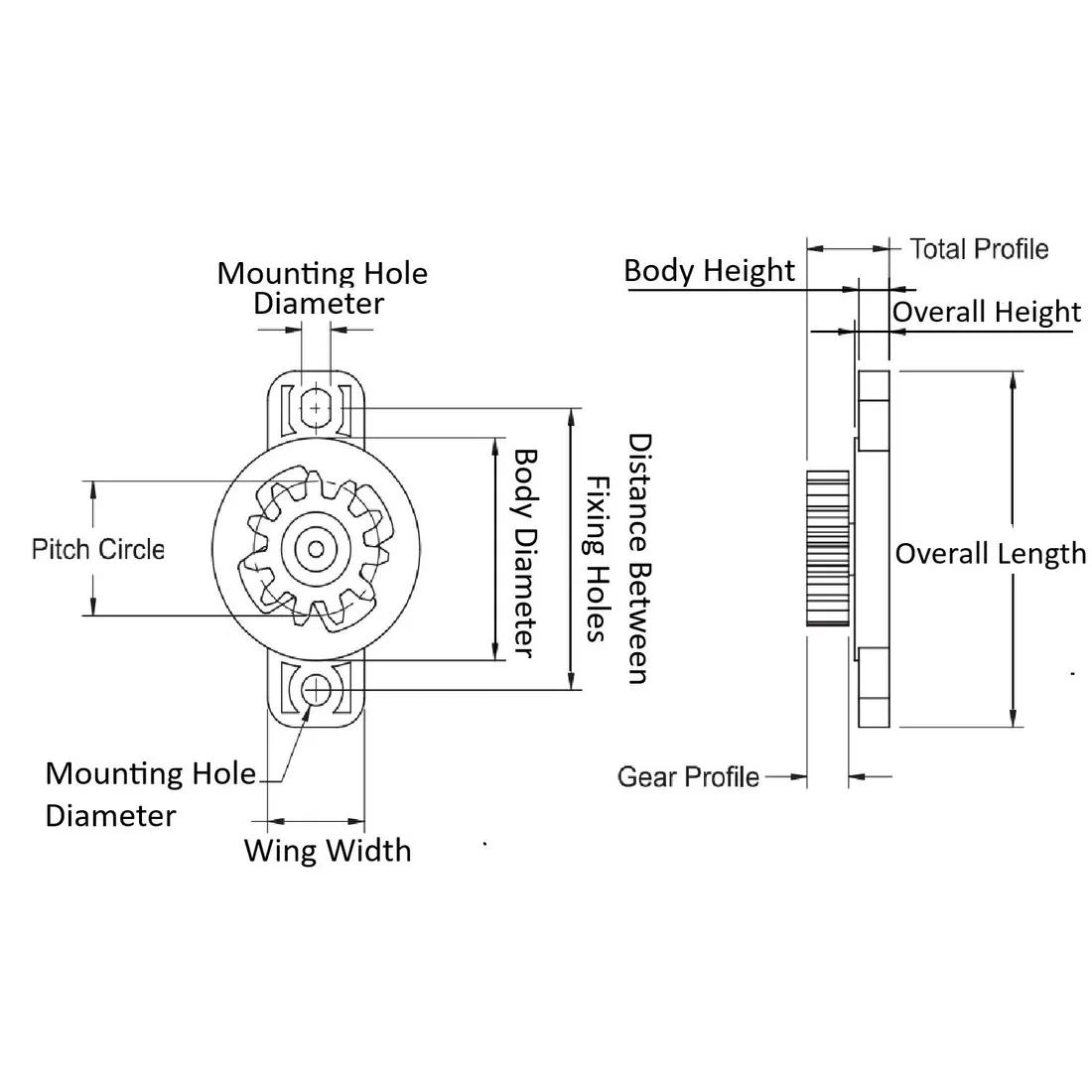

Item Code | Number of Teeth | Distance Between Fixing Holes | Overall Length | Wing Width | Mounting Hole Diameter | Gear Profile | Pitch Circle Diameter | Pressure Angle | Total Profile | Material Flammability Standard | Mounting Method | Color | Tooth Type | Housing Material | Body Diameter | Style | Gear Type | Body Height | Gear Material | Shaft Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RFRT-G2-101-G1 | 14 | 19.0 mm | 24.0 mm | 7.0 mm | 2.1 mm | 3.7 mm | 7.0 mm | 20 ° | 6.6 mm | UL94 HB | Tornillos M2, remaches a presión SR-20XX | Black | Involute Gear | PC | 15.0 mm | 1 | Standard Spur Gear | 2.2 mm | Acetal | Acetal | |
RFRT-G2-101-G3 | 11 | 19.0 mm | 24.0 mm | 7.0 mm | 2.1 mm | 3.6 mm | 8.8 mm | 20 ° | 6.5 mm | UL94 HB | Tornillos M2, remaches a presión SR-20XX | Black | Involute Gear | PC | 15.0 mm | Two-Way | Standard Spur Gear | 2.2 mm | Acetal | Acetal | |
RFRT-G2-300-G1 | 14 | 19.0 mm | 24.0 mm | 7.0 mm | 2.1 mm | 3.7 mm | 7.0 mm | 20 ° | 6.6 mm | UL94 HB | Tornillos M2, remaches a presión SR-20XX | Black | Involute Gear | PC | 15.0 mm | Two-Way | Standard Spur Gear | 2.2 mm | Acetal | Acetal | |
RFRT-G2-450-G1 | 14 | 19.0 mm | 24.0 mm | 7.0 mm | 2.1 mm | 3.7 mm | 7.0 mm | 20 ° | 6.6 mm | UL94 HB | Tornillos M2, remaches a presión SR-20XX | Black | Involute Gear | PC | 15.0 mm | Two-Way | Standard Spur Gear | 2.2 mm | Acetal | Acetal | |
RFRT-G2-450-G3 | 11 | 19.0 mm | 24.0 mm | 7.0 mm | 2.1 mm | 3.6 mm | 8.8 mm | 20 ° | 6.5 mm | UL94 HB | Tornillos M2, remaches a presión SR-20XX | Black | Involute Gear | PC | 15.0 mm | Two-Way | Standard Spur Gear | 2.2 mm | Acetal | Acetal | |
RFRT-G2-450-G2 | 10 | 19.0 mm | 24.0 mm | 7.0 mm | 2.1 mm | 3.0 mm | 10.0 mm | 20 ° | 5.9 mm | UL94 HB | Tornillos M2, remaches a presión SR-20XX | Black | Involute Gear | PC | 15.0 mm | Two-Way | Standard Spur Gear | 2.2 mm | Acetal | Acetal | |
RFRT-G2-600-G2 | 10 | 19.0 mm | 24.0 mm | 7.0 mm | 2.1 mm | 3.0 mm | 10.0 mm | 20 ° | 5.9 mm | UL94 HB | Tornillos M2, remaches a presión SR-20XX | Black | Involute Gear | PC | 15.0 mm | Two-Way | Standard Spur Gear | 2.2 mm | Acetal | Acetal | |
RFRT-G2-600-G3 | 11 | 19.0 mm | 24.0 mm | 7.0 mm | 2.1 mm | 3.6 mm | 8.8 mm | 20 ° | 6.5 mm | UL94 HB | Tornillos M2, remaches a presión SR-20XX | Black | Involute Gear | PC | 15.0 mm | Two-Way | Standard Spur Gear | 2.2 mm | Acetal | Acetal | |
RFRT-G2-200-G3 | 11 | 19.0 mm | 24.0 mm | 7.0 mm | 2.1 mm | 3.6 mm | 8.8 mm | 20 ° | 6.5 mm | UL94 HB | Tornillos M2, remaches a presión SR-20XX | Black | Involute Gear | PC | 15.0 mm | 3 | Standard Spur Gear | 2.2 mm | Acetal | Acetal |
Per page:
1-10 of 15
1–5 of 15 variants
Per page:
RFRT-G2-101-G1
Number of Teeth
14
Distance Between Fixing Holes
19.0 mm
Overall Length
24.0 mm
Wing Width
7.0 mm
RFRT-G2-101-G3
Number of Teeth
11
Distance Between Fixing Holes
19.0 mm
Overall Length
24.0 mm
Wing Width
7.0 mm
RFRT-G2-300-G1
Number of Teeth
14
Distance Between Fixing Holes
19.0 mm
Overall Length
24.0 mm
Wing Width
7.0 mm
RFRT-G2-450-G1
Number of Teeth
14
Distance Between Fixing Holes
19.0 mm
Overall Length
24.0 mm
Wing Width
7.0 mm
Per page:
1–5 of 16
