SRSRT - Removable Snap Rivet
Showing 1-10 of 17
Per page:1-10 of 17

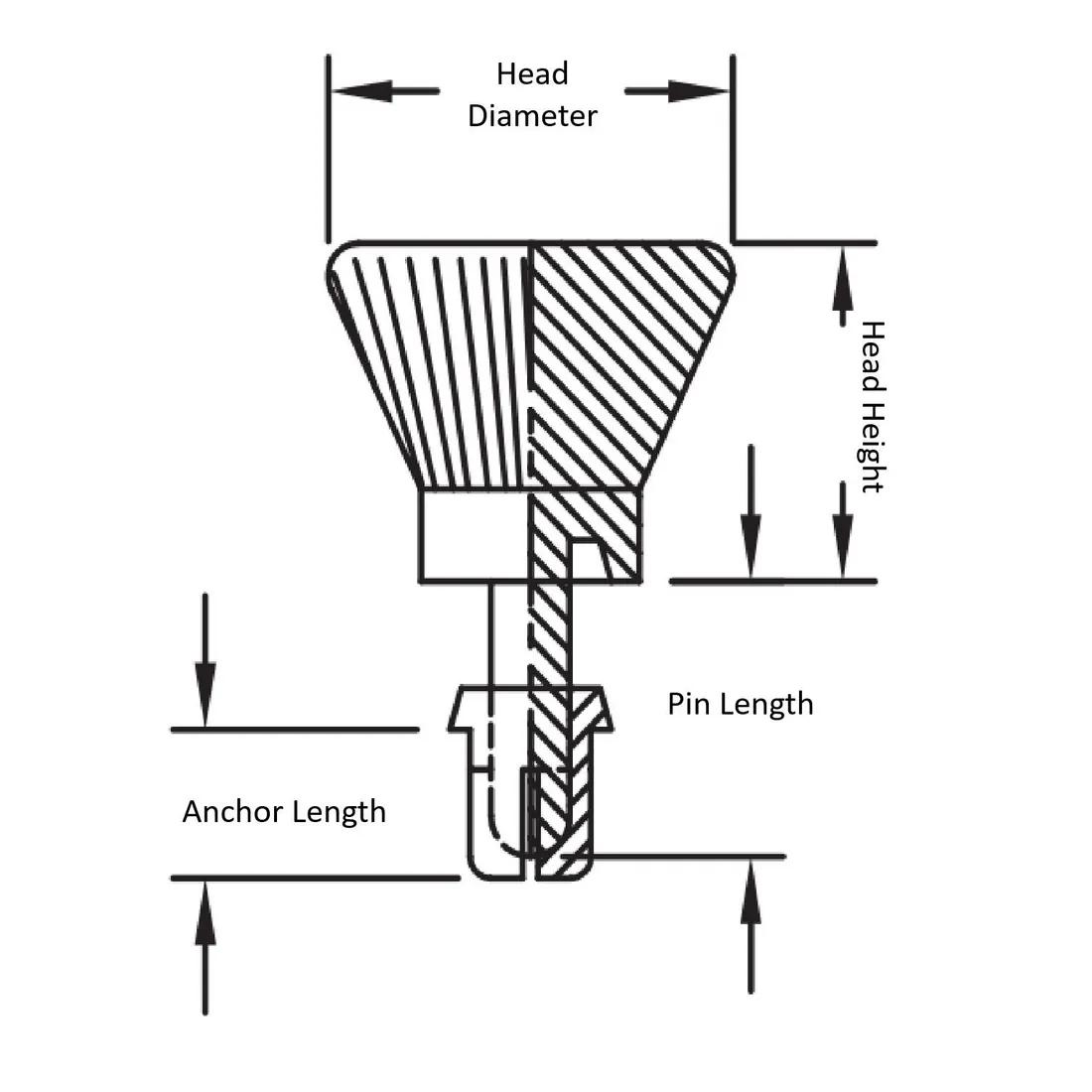

Item Code | Color | Pin Length | Maximum Hole Diameter | Material | Anchor Length | Head Height | Minimum Panel Thickness | Material Flammability Standard | Minimum Hole Diameter | Maximum Panel Thickness | Head Diameter | Maximum Operating Temperature | Minimum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SRT-3080B | Black | 9.0 mm | 3.2 mm | Nylon | 8.0 mm | 8.0 mm | 5.5 mm | UL94 V-2 | 3.1 mm | 6.5 mm | 10.0 mm | - | - | |
SRT-4060B | Black | 7.6 mm | 4.2 mm | Nylon | 6.0 mm | 8.0 mm | 3.5 mm | UL94 V-2 | 4.1 mm | 4.5 mm | 12.0 mm | - | - | |
SRT-3545B | Black | 6.6 mm | 3.7 mm | Nylon | 4.5 mm | 8.0 mm | 2.0 mm | UL94 V-2 | 3.6 mm | 3.0 mm | 10.0 mm | - | - | |
SRT-3065B | Black | 9.0 mm | 3.2 mm | Nylon | 6.5 mm | 8.0 mm | 4.0 mm | UL94 V-2 | 3.1 mm | 5.0 mm | 10.0 mm | - | - | |
SRT-4080B | Black | 11.2 mm | 4.2 mm | Nylon | 8.0 mm | 8.0 mm | 5.5 mm | UL94 V-2 | 4.1 mm | 6.5 mm | 12.0 mm | - | - | |
SRT-3075B | Black | 9.0 mm | 3.2 mm | Nylon | 7.5 mm | 8.0 mm | 5.0 mm | UL94 V-2 | 3.1 mm | 6.0 mm | 10.0 mm | - | - | |
SRT-3045B | Black | 6.5 mm | 3.2 mm | Nylon | 4.5 mm | 8.0 mm | 2.0 mm | UL94 V-2 | 3.1 mm | 3.0 mm | 10.0 mm | - | - | |
SRT-4050B | Black | 7.6 mm | 4.2 mm | Nylon | 5.0 mm | 8.0 mm | 2.5 mm | UL94 V-2 | 4.1 mm | 3.5 mm | 12.0 mm | - | - | |
SRT-3580B | Black | 9.0 mm | 3.7 mm | Nylon | 8.0 mm | 8.0 mm | 5.3 mm | UL94 V-2 | 3.6 mm | 6.5 mm | 10.0 mm | - | - |
Per page:
1-10 of 17
1–5 of 17 variants
Per page:
SRT-3080B
Color
Black
Pin Length
9.0 mm
Maximum Hole Diameter
3.2 mm
Material
Nylon
SRT-4060B
Color
Black
Pin Length
7.6 mm
Maximum Hole Diameter
4.2 mm
Material
Nylon
SRT-3545B
Color
Black
Pin Length
6.6 mm
Maximum Hole Diameter
3.7 mm
Material
Nylon
SRT-3065B
Color
Black
Pin Length
9.0 mm
Maximum Hole Diameter
3.2 mm
Material
Nylon
Per page:
1–5 of 18
