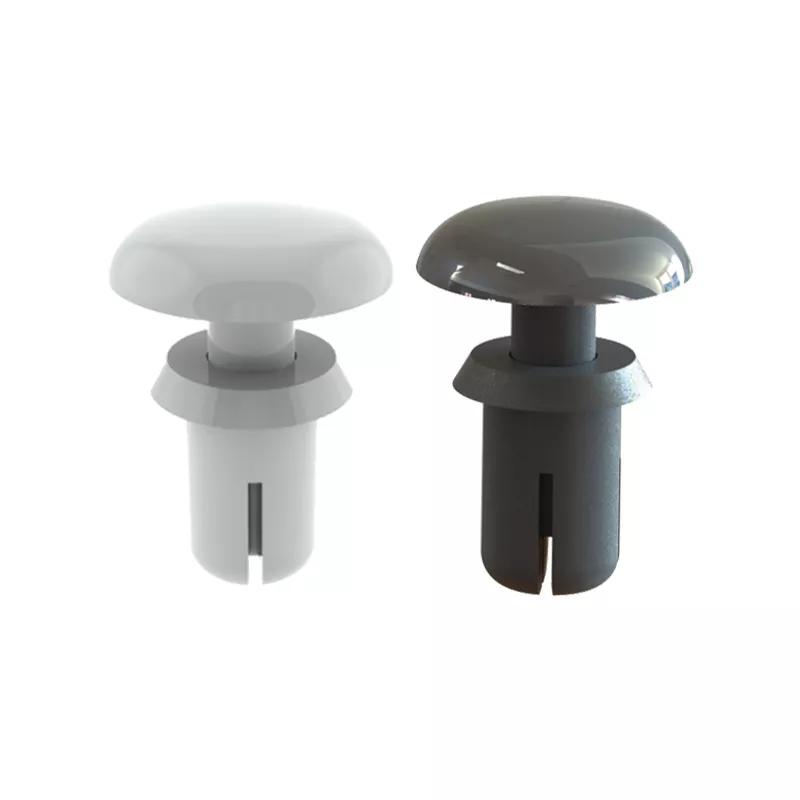

SRSRP - High Temperature Snap Rivet
Showing 1-3 of 3
Per page:1-3 of 3
Item Code | Material Flammability Standard | Color | Rivet Type | Head Diameter | Head Height | Rivet Head Shape | Rivet Fitting Style | Maximum Operating Temperature | Minimum Operating Temperature | Material | UL/CSA Description | Anchor Length | Pin Head Diameter | Pin Length | Minimum Hole Diameter | Maximum Hole Diameter | Head Shape | Pin Head Height (Seed) | Maximum Panel Thickness | Anchor Diameter | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SRP-3045 | UL94 V-1 | Black | Snap | 0.252 in | 0.063 in | Round | Push-In | 311 °F | 32 °F | PSU | UL E41871 | 0.240 in | - | - | - | - | - | - | - | - | - | |
SRP-3055 | UL94 V-1 | Black | Snap | 0.252 in | 0.063 in | Round | Push-In | 311 °F | 32 °F | PSU | UL E41871 | 0.240 in | - | - | - | - | - | - | - | - | - | |
SRP-4065 | UL94 V-1 | Black | Snap | 6.4 | 1.6 | Round | Push-In | 155 | 0 | PSU | UL E41871 | 6.5 | 7.0 mm | 11.0 mm | 4.0 mm | 4.2 mm | Round | 1.0 mm | 3.5 mm | 4.0 mm | 4.5 mm |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
SRP-3045
Material Flammability Standard
UL94 V-1
Color
Black
Rivet Type
Snap
Head Diameter
0.252 in
SRP-3055
Material Flammability Standard
UL94 V-1
Color
Black
Rivet Type
Snap
Head Diameter
0.252 in
SRP-4065
Pin Head Diameter
7.0 mm
Color
Black
Pin Length
11.0 mm
Head Height
1.6
