SRSR&27SR - Snap Rivet
Showing 1-10 of 118
Per page:1-10 of 118

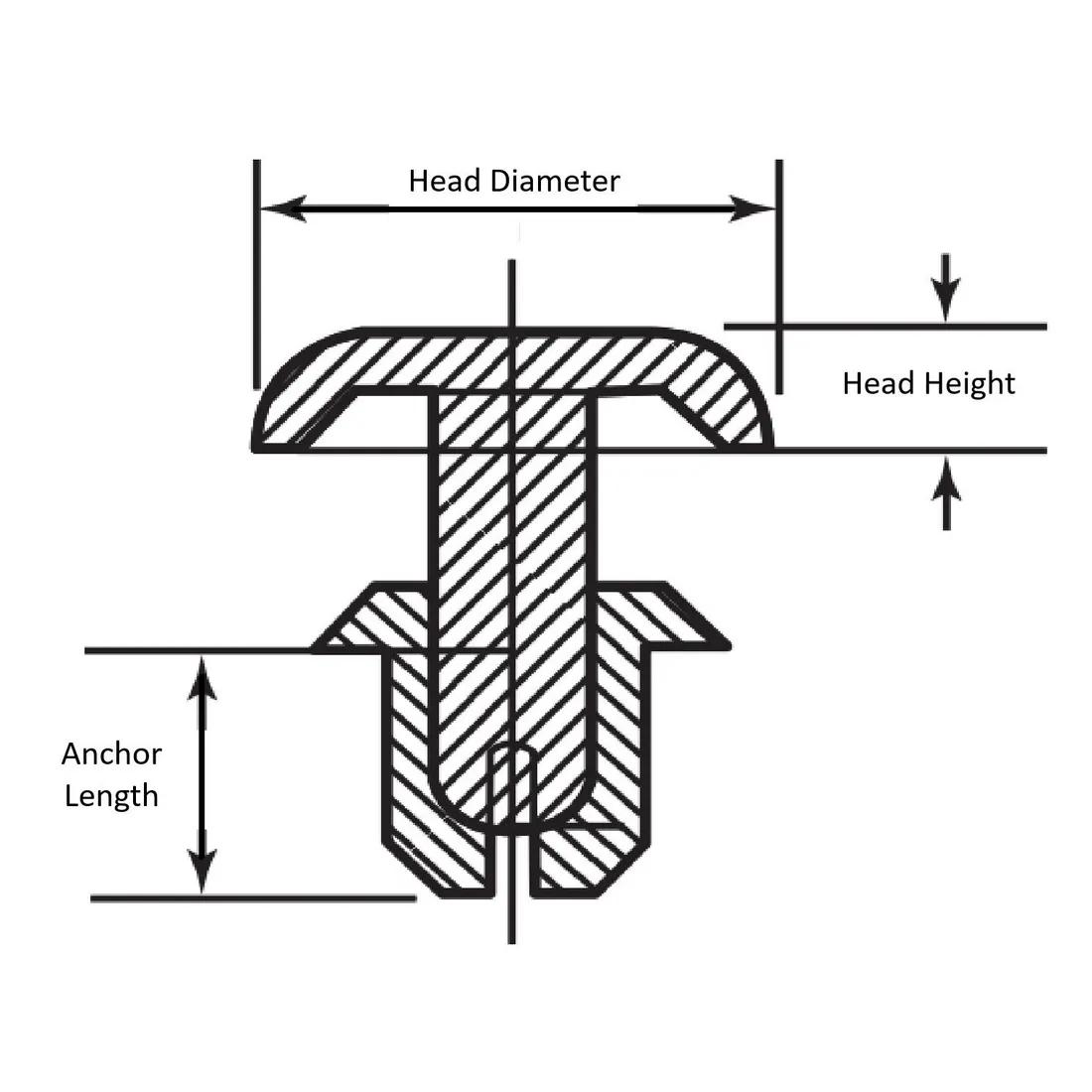

Item Code | Color | Maximum Hole Diameter | Anchor Length | Head Height | Anchor Diameter | Maximum Operating Temperature | Material Flammability Standard | Minimum Hole Diameter | Minimum Operating Temperature | Material | Maximum Panel Thickness | Head Diameter | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SRVO-2664B | Black | 2.8 mm | 6.4 | 1.8 | 2.6 mm | 248 °F | UL94 V-0 | 2.7 mm | -40 °F | Nylon 6/66 | 5.2 mm | 8.0 | 4.3 mm | |
27SR079295 | Black | 0.087 in | 0.295 in | 0.047 in | - | - | UL94 V-2 | 0.083 in | - | Nylon 6/6 | 0.225 in | 0.165 in | 0.205 in | |
27SR0012W | White | 0.131 in | 0.220 in | 0.065 in | - | - | UL94 V-2 | 0.127 in | - | Nylon 6/6 | 0.160 in | 0.249 in | 0.122 in | |
27SR0020 | Black | 0.164 in | 0.240 in | 0.078 in | - | - | UL94 V-2 | 0.160 in | - | Nylon 6/6 | 0.188 in | 0.317 in | 0.144 in | |
27SR0010 | Black | 0.127 in | 0.140 in | 0.065 in | - | - | UL94 V-2 | 0.123 in | - | Nylon 6/6 | 0.100 in | 0.254 in | 0.050 in | |
27SR102130 | Black | 0.106 in | 0.130 in | 0.055 in | - | - | UL94 V-2 | 0.102 in | - | Nylon 6/6 | 0.079 in | 0.197 in | 0.039 in | |
27SR0012 | Black | 0.131 in | 0.220 in | 0.065 in | - | - | UL94 V-2 | 0.127 in | - | Nylon 6/6 | 0.160 in | 0.249 in | 0.122 in | |
27SR102250 | Black | 0.106 in | 0.250 in | 0.055 in | - | - | UL94 V-2 | 0.102 in | - | Nylon 6/6 | 0.198 in | 0.197 in | 0.142 in | |
27SR0010W | White | 0.127 in | 0.140 in | 0.065 in | - | - | UL94 V-2 | 0.123 in | - | Nylon 6/6 | 0.100 in | 0.254 in | 0.050 in |
Per page:
1-10 of 118
1–5 of 118 variants
Per page:
SRVO-2664B
Color
Black
Maximum Hole Diameter
2.8 mm
Anchor Length
6.4
Head Height
1.8
27SR079295
Color
Black
Maximum Hole Diameter
0.087 in
Material
Nylon 6/6
Anchor Length
0.295 in
27SR0012W
Color
White
Maximum Hole Diameter
0.131 in
Material
Nylon 6/6
Anchor Length
0.220 in
27SR0020
Color
Black
Maximum Hole Diameter
0.164 in
Material
Nylon 6/6
Anchor Length
0.240 in
Per page:
1–5 of 119
