SRRP - Push Rivet
Showing 1-10 of 14
Per page:1-10 of 14

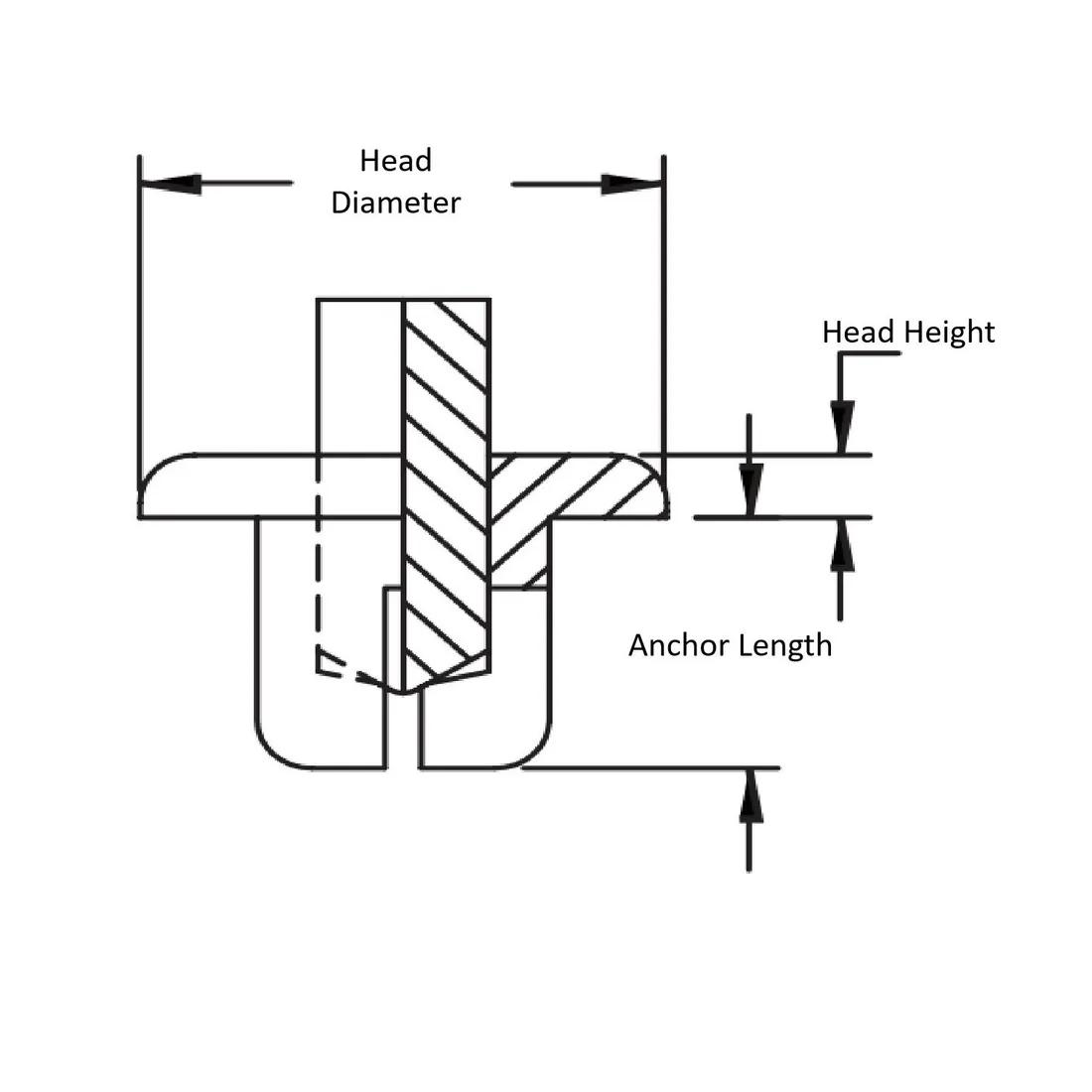

Item Code | Color | Hole Diameter | Material | Anchor Length | Head Height | Minimum Panel Thickness | Maximum Panel Thickness | Head Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|
RP100B | Black | 0.118 in | Nylon 6 | 0.177 in | 0.079 in | 0.079 in | 0.118 in | 0.118 in | |
RP130B | Black | 0.197 in | Nylon 6 | 0.197 in | 0.110 in | 0.157 in | 0.197 in | 0.197 in | |
RP145W | White | 0.201 in | Nylon 6 | 0.315 in | 0.110 in | 0.197 in | 0.236 in | 0.197 in | |
RP110W | White | 0.157 in | Nylon 6 | 0.197 in | 0.087 in | 0.098 in | 0.138 in | 0.315 in | |
RP105W | White | 0.118 in | Nylon 6 | 0.220 in | 0.079 in | 0.118 in | 0.157 in | 0.228 in | |
RP135W | White | 0.197 in | Nylon 6 | 0.236 in | 0.110 in | 0.118 in | 0.157 in | 0.370 in | |
RP140W | White | 0.201 in | Nylon 6 | 0.276 in | 0.110 in | 0.157 in | 0.197 in | 0.370 in | |
RP115B | Black | 0.157 in | Nylon 6 | 0.236 in | 0.091 in | 0.138 in | 0.177 in | 0.157 in | |
RP150W | White | 0.201 in | Nylon 6 | 0.354 in | 0.110 in | 0.236 in | 0.276 in | 0.197 in |
Per page:
1-10 of 14
1–5 of 14 variants
Per page:
RP100B
Color
Black
Hole Diameter
0.118 in
Material
Nylon 6
Anchor Length
0.177 in
RP130B
Color
Black
Hole Diameter
0.197 in
Material
Nylon 6
Anchor Length
0.197 in
RP145W
Color
White
Hole Diameter
0.201 in
Material
Nylon 6
Anchor Length
0.315 in
RP110W
Color
White
Hole Diameter
0.157 in
Material
Nylon 6
Anchor Length
0.197 in
Per page:
1–5 of 15
