SRCR - Expansion Blind Rivet
Showing 1-10 of 12
Per page:1-10 of 12

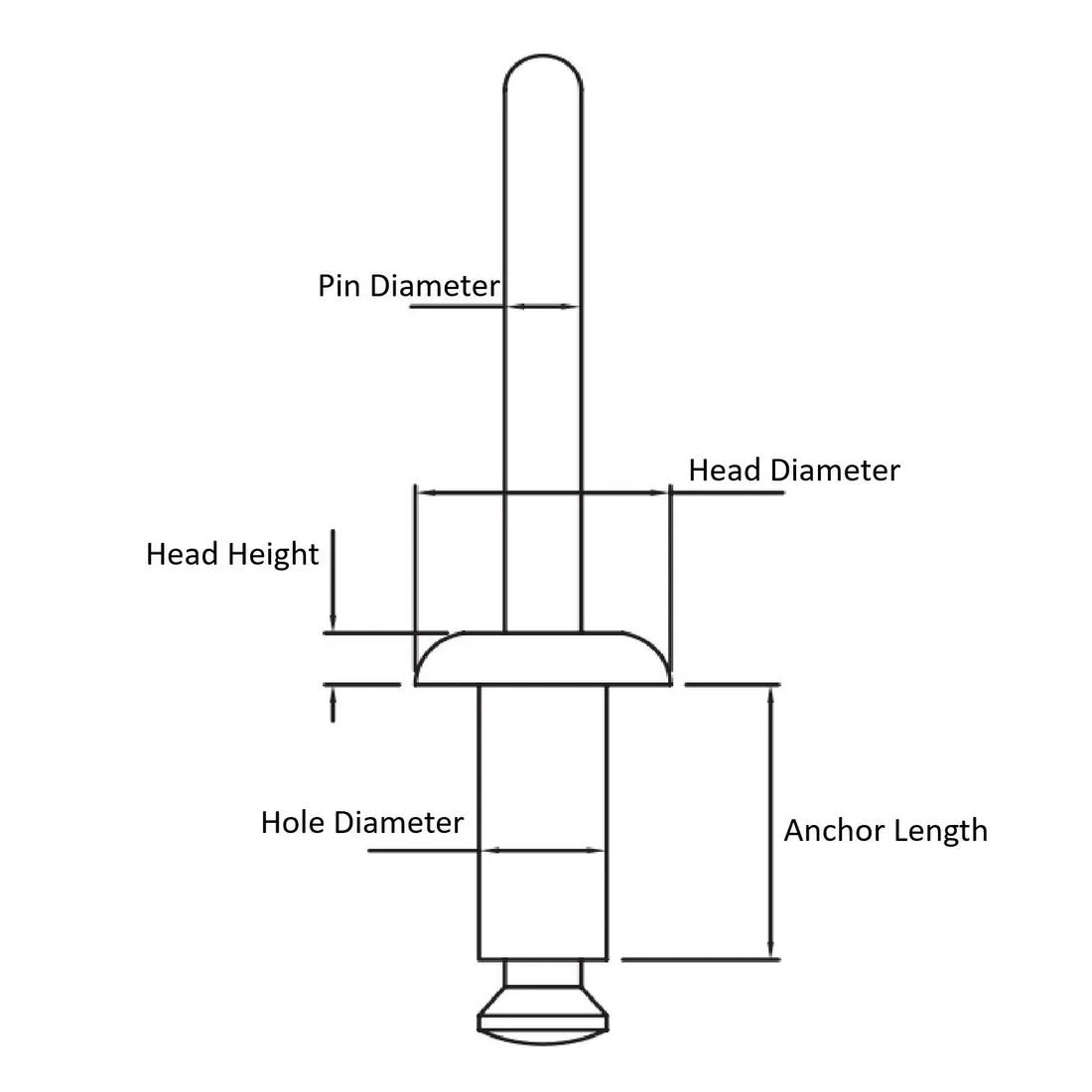

Item Code | Minimum Operating Temperature | Anchor Length | Head Height | Maximum Operating Temperature | Color | Pin Diameter | Mandrel Material | Hole Diameter | Maximum Panel Thickness | Head Diameter | Rivet Material | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CR56-1-1 | -40 °F | 9.6 mm | 2.2 mm | 176 °F | Black | 3.4 mm | PC | 5.7 mm | 5.5 mm | 12.0 mm | Nylon 6/6 | 2.0 mm | |
CR56-3-1 | -40 °F | 15.9 mm | 2.2 mm | 176 °F | Black | 3.4 mm | PC | 5.7 mm | 12.0 mm | 12.0 mm | Nylon 6/6 | 8.5 mm | |
CR56-2-1 | -40 °F | 12.7 mm | 2.2 mm | 176 °F | Black | 3.4 mm | PC | 5.7 mm | 8.5 mm | 12.0 mm | Nylon 6/6 | 5.5 mm | |
CR32-3-1 | -40 °F | 12.7 mm | 1.4 mm | 176 °F | Black | 2.1 mm | PC | 3.3 mm | 10.0 mm | 6.4 mm | Nylon 6/6 | 7.0 mm | |
CR40-3-1 | -40 °F | 12.7 mm | 1.8 mm | 176 °F | Black | 2.4 mm | PC | 4.1 mm | 10.0 mm | 8.0 mm | Nylon 6/6 | 7.0 mm | |
CR32-1-1 | -40 °F | 6.4 mm | 1.4 mm | 176 °F | Black | 2.1 mm | PC | 3.3 mm | 4.0 mm | 6.4 mm | Nylon 6/6 | 1.0 mm | |
CR32-2-1 | -40 °F | 9.6 mm | 1.4 mm | 176 °F | Black | 2.1 mm | PC | 3.3 mm | 7.0 mm | 6.4 mm | Nylon 6/6 | 4.1 mm | |
CR40-1-1 | -40 °F | 6.4 mm | 1.8 mm | 176 °F | Black | 2.4 mm | PC | 4.1 mm | 4.0 mm | 8.0 mm | Nylon 6/6 | 1.0 mm | |
CR48-3-1 | -40 °F | 14.4 mm | 2.0 mm | 176 °F | Black | 2.8 mm | PC | 4.9 mm | 11.0 mm | 9.6 mm | Nylon 6/6 | 8.0 mm |
Per page:
1-10 of 12
1–5 of 12 variants
Per page:
CR56-1-1
Minimum Operating Temperature
-40 °F
Anchor Length
9.6 mm
Head Height
2.2 mm
Maximum Operating Temperature
176 °F
CR56-3-1
Minimum Operating Temperature
-40 °F
Anchor Length
15.9 mm
Head Height
2.2 mm
Maximum Operating Temperature
176 °F
CR56-2-1
Minimum Operating Temperature
-40 °F
Anchor Length
12.7 mm
Head Height
2.2 mm
Maximum Operating Temperature
176 °F
CR32-3-1
Minimum Operating Temperature
-40 °F
Anchor Length
12.7 mm
Head Height
1.4 mm
Maximum Operating Temperature
176 °F
Per page:
1–5 of 13
