SRAST - Anchor Rivets with Steel Drive Pins
Showing 1-8 of 8
Per page:1-8 of 8

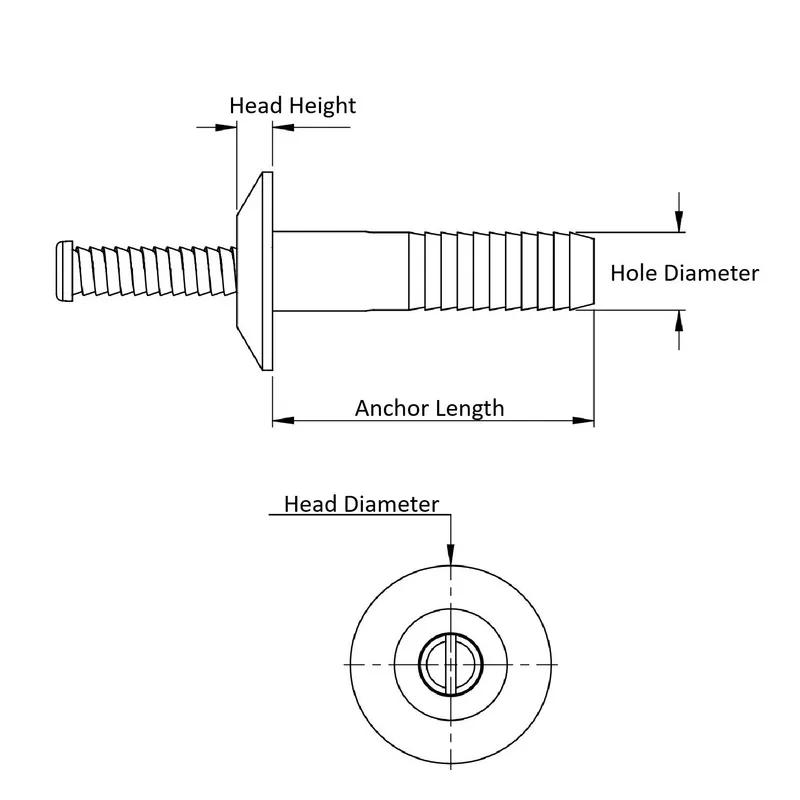

Item Code | Color | Hole Diameter | Anchor Length | Head Diameter | Head Height | Pin Material | Minimum Operating Temperature | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|
61AST25100B | Black | 0.250 in | 1.000 in | 0.625 in | 0.110 in | Steel | - | - | |
61AST25150B | Black | 0.250 in | 1.500 in | 0.625 in | 0.110 in | Steel | - | - | |
61AST18075B | Black | 0.188 in | 0.750 in | 0.625 in | 0.110 in | Steel | - | - | |
61AST18075 | White | 0.188 in | 0.750 in | 0.625 in | 0.110 in | Steel | -40 °F | 185 °F | |
61AST25150 | White | 0.250 in | 1.500 in | 0.625 in | 0.110 in | Steel | -40 °F | 185 °F | |
61AST18100 | White | 0.188 in | 1.000 in | 0.625 in | 0.110 in | Steel | -40 °F | 185 °F | |
61AST25100 | White | 0.250 in | 1.000 in | 0.625 in | 0.110 in | Steel | -40 °F | 185 °F | |
61AST18100B | Black | 0.188 in | 1.000 in | 0.625 in | 0.110 in | Steel | - | - |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
61AST25100B
Color
Black
Hole Diameter
0.250 in
Anchor Length
1.000 in
Head Diameter
0.625 in
61AST25150B
Color
Black
Hole Diameter
0.250 in
Anchor Length
1.500 in
Head Diameter
0.625 in
61AST18075B
Color
Black
Hole Diameter
0.188 in
Anchor Length
0.750 in
Head Diameter
0.625 in
61AST18075
Color
White
Hole Diameter
0.188 in
Minimum Operating Temperature
-40 °F
Anchor Length
0.750 in
Per page:
1–5 of 9
