SRASR - Anchor Rivets with Steel Drive Pins
Showing 1-6 of 6
Per page:1-6 of 6

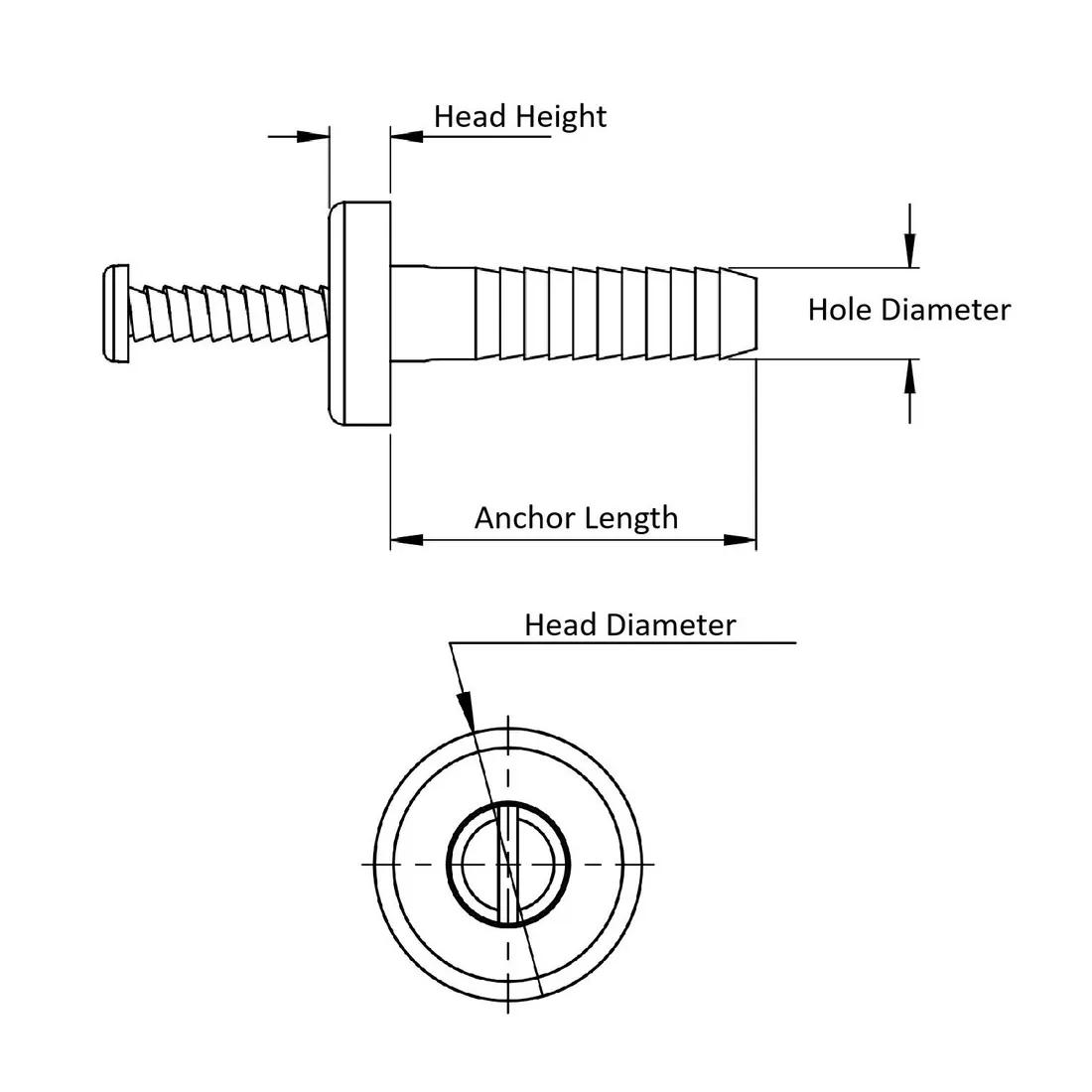

Item Code | Color | Hole Diameter | Anchor Length | Head Diameter | Head Height | Pin Material | Minimum Operating Temperature | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|
61ASR18075B | Black | 0.188 in | 0.750 in | 0.438 in | 0.125 in | Zinc-Plated Steel | - | - | |
61ASR25075B | Black | 0.250 in | 0.750 in | 0.438 in | 0.125 in | Zinc-Plated Steel | - | - | |
61ASR18075 | White | 0.188 in | 0.750 in | 0.438 in | 0.125 in | Zinc-Plated Steel | -40 °F | 185 °F | |
61ASR25150 | White | 0.250 in | 1.500 in | 0.438 in | 0.125 in | Zinc-Plated Steel | -40 °F | 185 °F | |
61ASR25075 | White | 0.250 in | 0.750 in | 0.438 in | 0.125 in | Zinc-Plated Steel | -40 °F | 185 °F | |
61ASR25150B | Black | 0.250 in | 1.500 in | 0.438 in | 0.125 in | Zinc-Plated Steel | - | - |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
61ASR18075B
Color
Black
Hole Diameter
0.188 in
Anchor Length
0.750 in
Head Diameter
0.438 in
61ASR25075B
Color
Black
Hole Diameter
0.250 in
Anchor Length
0.750 in
Head Diameter
0.438 in
61ASR18075
Color
White
Hole Diameter
0.188 in
Minimum Operating Temperature
-40 °F
Anchor Length
0.750 in
61ASR25150
Color
White
Hole Diameter
0.250 in
Minimum Operating Temperature
-40 °F
Anchor Length
1.500 in
Per page:
1–5 of 7
