SRAPM - Anchor Rivets with Plastic Drive Pins
Showing 1-8 of 8
Per page:1-8 of 8

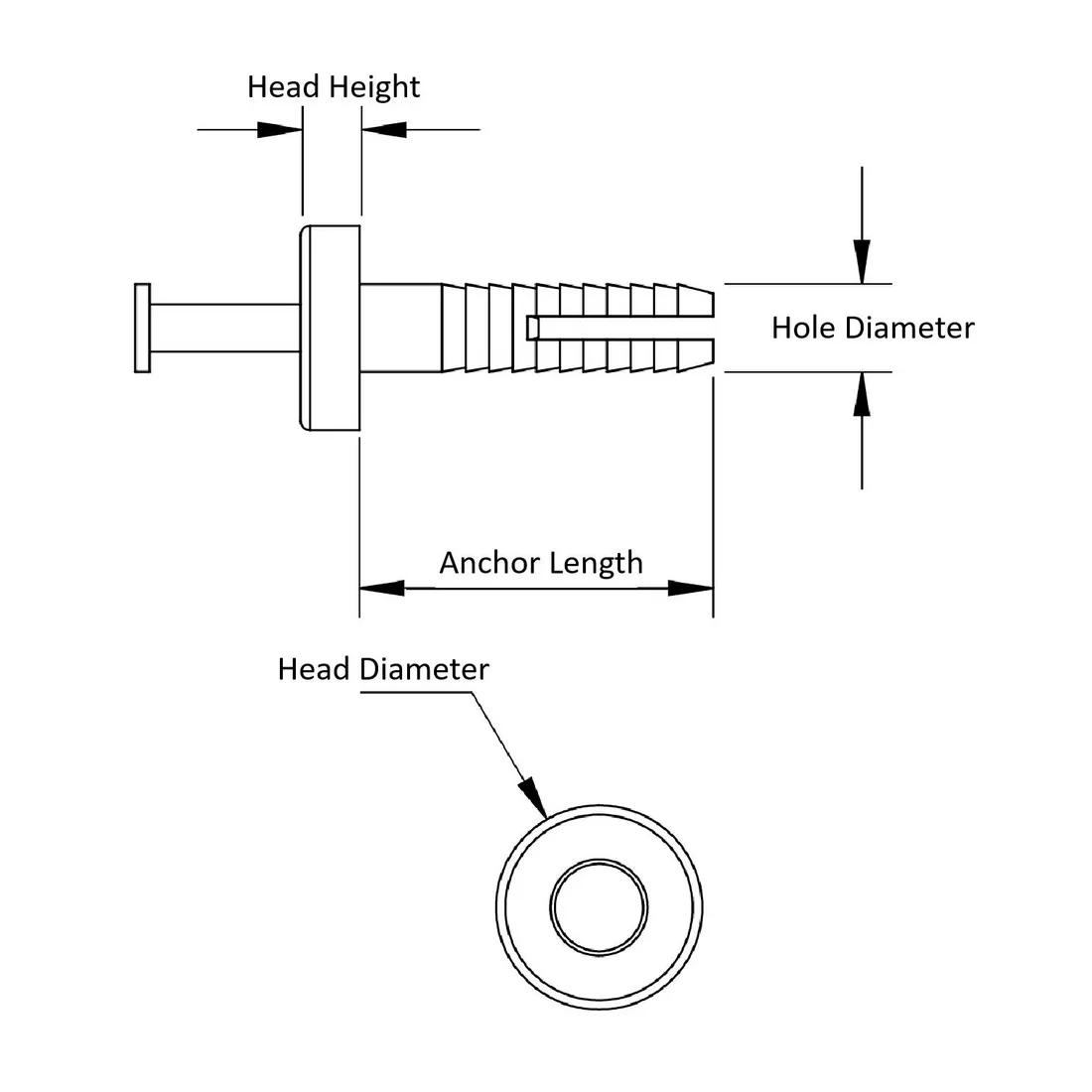

Item Code | Color | Hole Diameter | Anchor Length | Head Height | Pin Material | Maximum Panel Thickness | Head Diameter | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|
61APM25100B | Black | 0.250 in | 1.000 in | 0.110 in | Acetal | 0.251 in | 0.563 in | 0.251 in | |
61APM25150B | Black | 0.250 in | 1.500 in | 0.110 in | Acetal | 6.4 mm | 0.563 in | 6.4 mm | |
61APM25075B | Black | 0.250 in | 0.750 in | 0.110 in | Acetal | 6.4 mm | 0.563 in | 6.4 mm | |
61APM18075B | Black | 0.188 in | 0.750 in | 0.110 in | Acetal | 0.180 in | 0.563 in | 0.180 in | |
61APM25100 | White | 0.250 in | 1.000 in | 0.110 in | Acetal | 0.251 in | 0.563 in | 0.251 in | |
61APM18075 | White | 0.188 in | 0.750 in | 0.110 in | Acetal | 0.180 in | 0.563 in | 0.180 in | |
61APM25150 | White | 0.250 in | 1.500 in | 0.110 in | Acetal | 6.4 mm | 0.563 in | 6.4 mm | |
61APM25075 | White | 0.250 in | 0.750 in | 0.110 in | Acetal | 6.4 mm | 0.563 in | 6.4 mm |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
61APM25100B
Color
Black
Hole Diameter
0.250 in
Anchor Length
1.000 in
Head Height
0.110 in
61APM25150B
Color
Black
Hole Diameter
0.250 in
Anchor Length
1.500 in
Head Height
0.110 in
61APM25075B
Color
Black
Hole Diameter
0.250 in
Anchor Length
0.750 in
Head Height
0.110 in
61APM18075B
Color
Black
Hole Diameter
0.188 in
Anchor Length
0.750 in
Head Height
0.110 in
Per page:
1–5 of 9
