SR61PR - Push Rivet
Showing 1-10 of 108
Per page:1-10 of 108

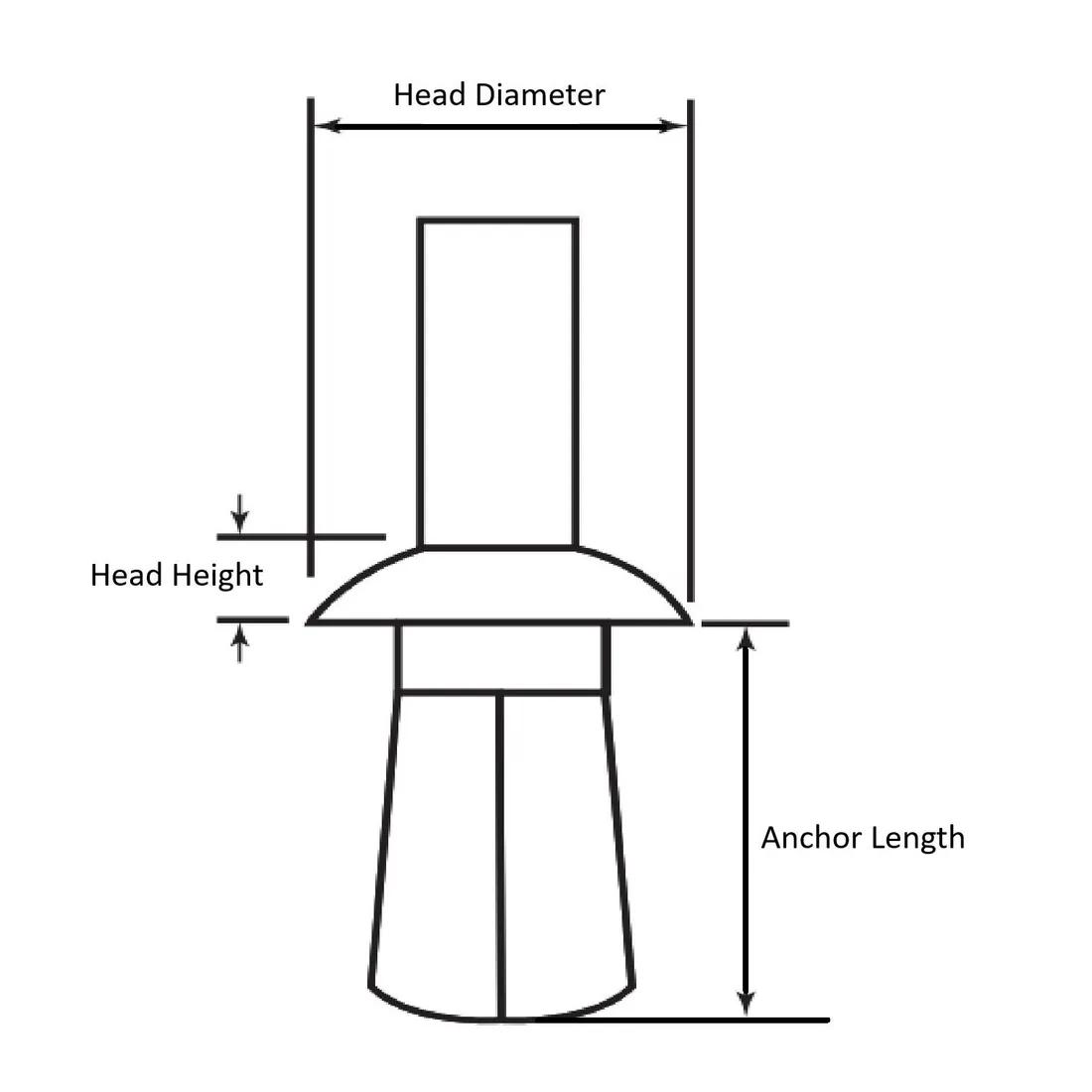

Item Code | Color | Hole Diameter | Material | Anchor Length | Head Height | Rivet Head Shape | Maximum Panel Thickness | Head Diameter | Minimum Panel Thickness | Material Flammability Standard | Hole Size | Maximum Operating Temperature | Pin Diameter | Minimum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
61PR100100B | Black | 0.156 in | Nylon 6/6 | 0.312 in | 0.050 in | Binder | 0.250 in | 0.218 in | 0.187 in | - | - | - | - | - | |
61PR300500B | Black | 0.187 in | Nylon 6/6 | 0.625 in | 0.080 in | Binder | 0.500 in | 0.281 in | 0.375 in | UL94 V-2 | - | - | - | - | |
61PR200000B | Black | 0.187 in | Nylon 6/6 | 0.380 in | 0.075 in | Truss | 0.281 in | 0.435 in | 0.156 in | - | - | - | - | - | |
61PR400700B | Black | 0.245 in | Nylon 6/6 | 0.625 in | 0.100 in | Round | 0.550 in | 0.375 in | 0.140 in | - | - | - | - | - | |
61PR010310B | Black | 0.187 in | Nylon 6/6 | 0.380 in | 0.080 in | Round | 0.281 in | 0.375 in | 0.156 in | - | - | - | - | - | |
61PR100400B | Black | 0.187 in | Nylon 6/6 | 0.296 in | 0.050 in | Truss | 0.187 in | 0.281 in | 0.062 in | - | - | - | - | - | |
61PR300900B | Black | 0.275 in | Nylon 6/6 | 0.640 in | 0.080 in | Round | 0.600 in | 0.370 in | 0.062 in | - | - | - | - | - | |
61PR400900B | Black | 0.250 in | Nylon 6/6 | 0.375 in | 0.305 in | Button | 0.275 in | 0.494 in | 0.078 in | - | - | - | - | - | |
61PR400800B | Black | 0.250 in | Nylon 6/6 | 0.585 in | 0.080 in | Binder | 0.437 in | 0.468 in | 0.125 in | - | - | - | - | - |
Per page:
1-10 of 108
1–5 of 108 variants
Per page:
61PR100100B
Color
Black
Hole Diameter
0.156 in
Material
Nylon 6/6
Anchor Length
0.312 in
61PR300500B
Material Flammability Standard
UL94 V-2
Color
Black
Hole Diameter
0.187 in
Material
Nylon 6/6
61PR200000B
Color
Black
Hole Diameter
0.187 in
Material
Nylon 6/6
Anchor Length
0.380 in
61PR400700B
Color
Black
Hole Diameter
0.245 in
Material
Nylon 6/6
Anchor Length
0.625 in
Per page:
1–5 of 109
