SR61ASM - Anchor Rivets with Steel Drive Pins
Showing 1-2 of 2
Per page:1-2 of 2

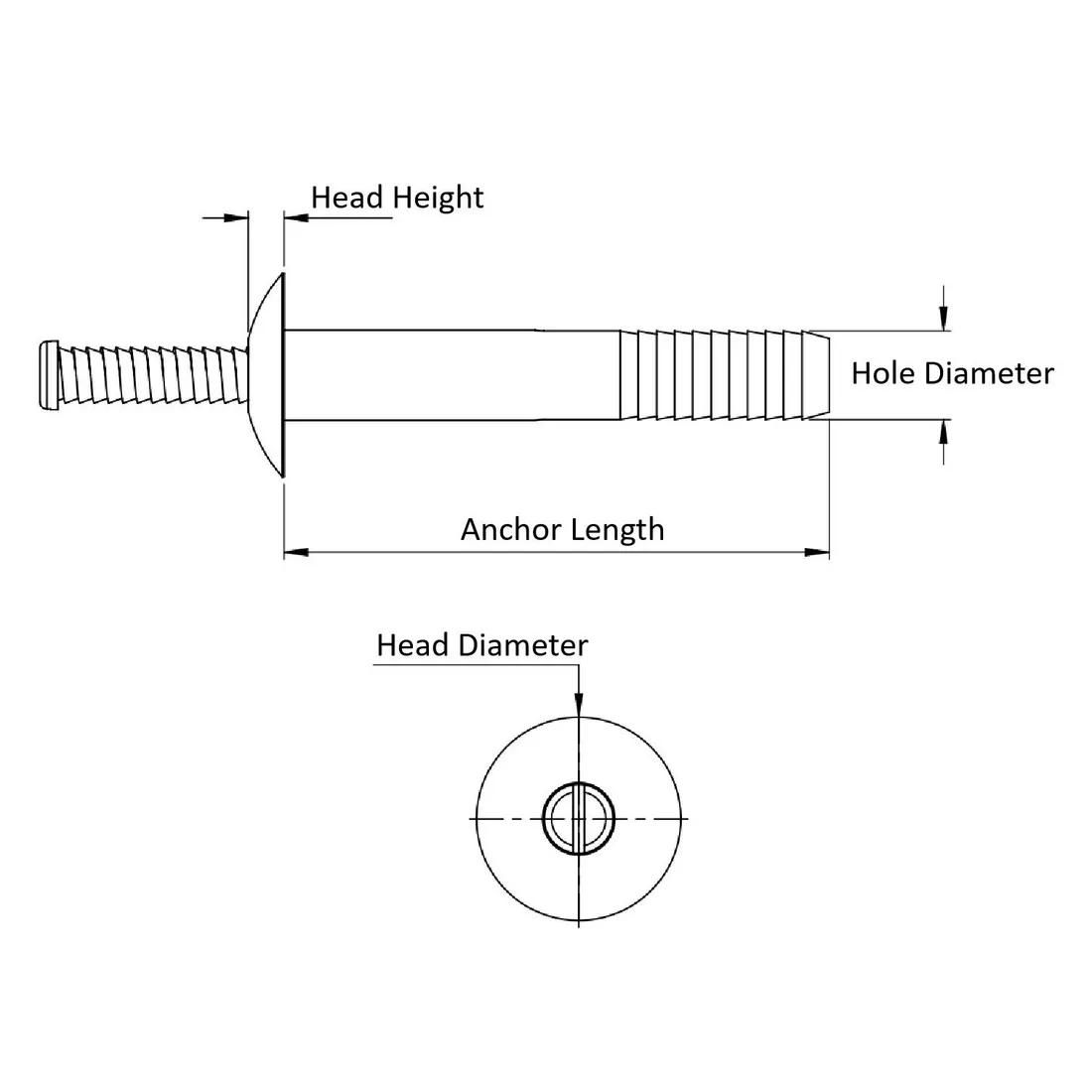

Item Code | Color | Hole Diameter | Anchor Length | Head Height | Pin Material | Maximum Panel Thickness | Head Diameter | Minimum Panel Thickness | Minimum Operating Temperature | Maximum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
61ASM25150B | Black | 0.250 in | 1.500 in | 0.110 in | Zinc-Plated Steel | 6.4 mm | 0.563 in | 6.4 mm | - | - | |
61ASM25150 | White | 0.250 in | 1.500 in | 0.110 in | Zinc-Plated Steel | 6.4 mm | 0.563 in | 6.4 mm | -40 °F | 185 °F |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
61ASM25150B
Color
Black
Hole Diameter
0.250 in
Anchor Length
1.500 in
Head Height
0.110 in
61ASM25150
Color
White
Hole Diameter
0.250 in
Minimum Operating Temperature
-40 °F
Anchor Length
1.500 in
