SR61APF - Anchor Rivets with Plastic Drive Pins
Showing 1-4 of 4
Per page:1-4 of 4

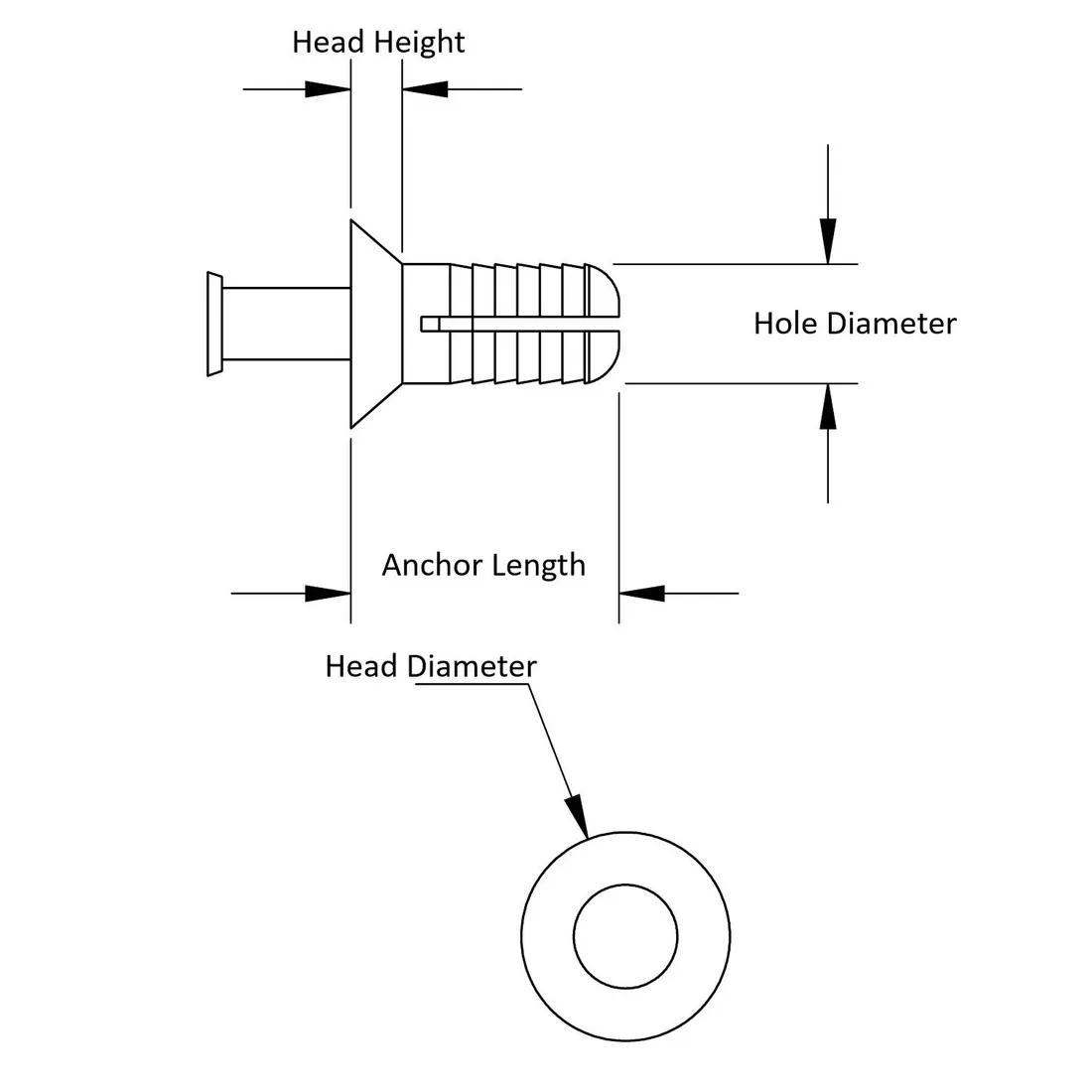

Item Code | Color | Hole Diameter | Anchor Length | Head Diameter | Head Height | Pin Material | Request Quote |
|---|---|---|---|---|---|---|---|
61APF25075B | Black | 0.250 in | 0.750 in | 0.438 in | 0.108 in | Acetal | |
61APF25056B | Black | 0.250 in | 0.563 in | 0.438 in | 0.108 in | Acetal | |
61APF25075 | White | 0.250 in | 0.750 in | 0.438 in | 0.108 in | Acetal | |
61APF25056 | White | 0.250 in | 0.563 in | 0.438 in | 0.108 in | Acetal |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
61APF25075B
Color
Black
Hole Diameter
0.250 in
Anchor Length
0.750 in
Head Diameter
0.438 in
61APF25056B
Color
Black
Hole Diameter
0.250 in
Anchor Length
0.563 in
Head Diameter
0.438 in
61APF25075
Color
White
Hole Diameter
0.250 in
Anchor Length
0.750 in
Head Diameter
0.438 in
61APF25056
Color
White
Hole Diameter
0.250 in
Anchor Length
0.563 in
Head Diameter
0.438 in
