SR27AC - Mounting Button
Showing 1-10 of 102
Per page:1-10 of 102

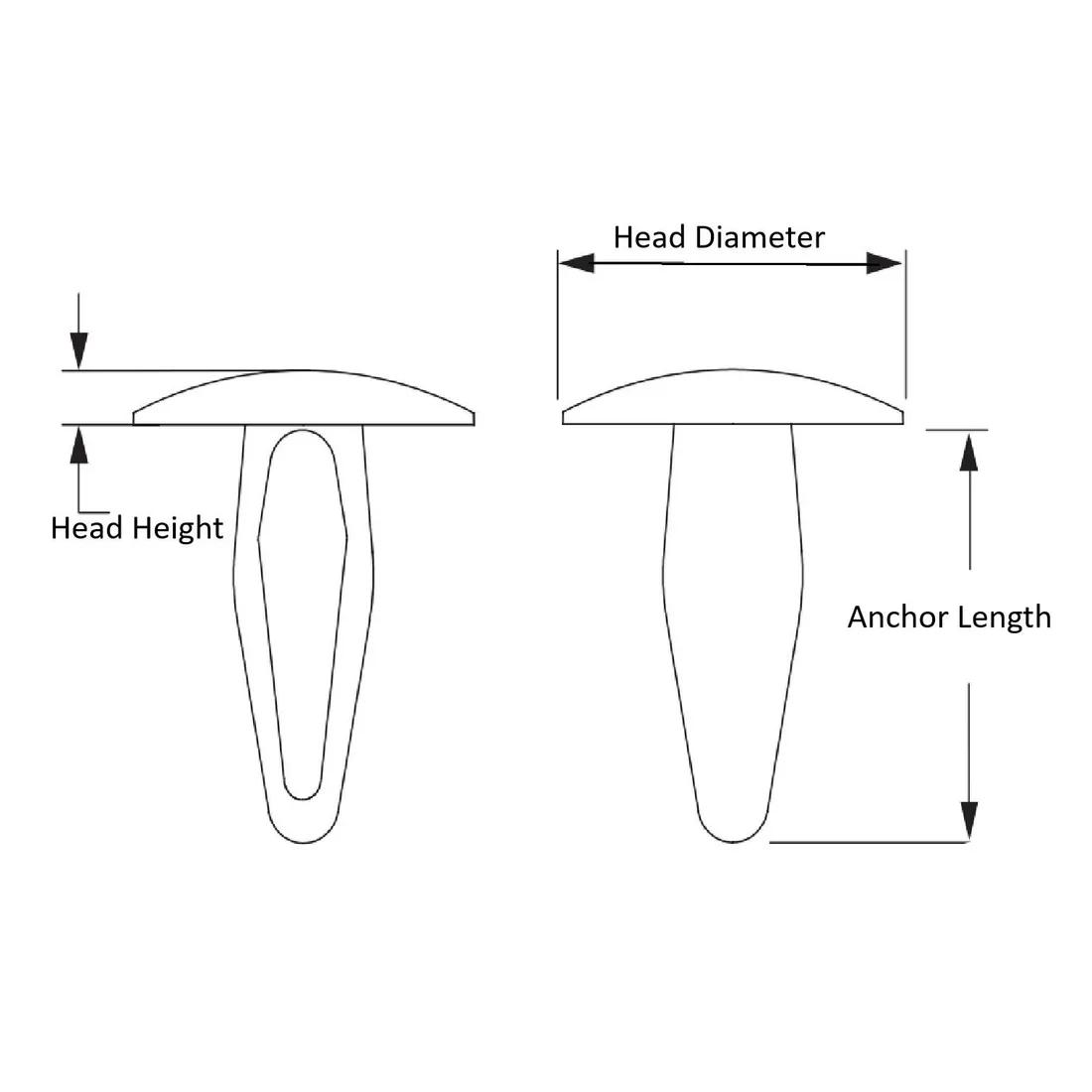

Item Code | Color | Maximum Hole Diameter | Material | Anchor Length | Head Height | Minimum Panel Thickness | Material Flammability Standard | Minimum Hole Diameter | Maximum Panel Thickness | Head Diameter | Maximum Operating Temperature | Minimum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
27AC0024 | Natural | 0.263 in | Nylon 6/6 | 1.135 in | 0.068 in | 0.500 in | UL94 V-2 | 0.250 in | 0.750 in | 0.610 in | - | - | |
27AC0026 | Natural | 0.260 in | Nylon 6/6 | 0.606 in | 0.055 in | 0.095 in | UL94 V-2 | 0.240 in | 0.218 in | 0.750 in | - | - | |
27AC0031 | Natural | 0.192 in | Nylon 6/6 | 0.525 in | 0.070 in | 0.200 in | UL94 V-2 | 0.182 in | 0.250 in | 0.270 in | - | - | |
27AC0010 | Natural | 0.065 in | Nylon 6/6 | 0.125 in | 0.020 in | 0.010 in | UL94 V-2 | 0.062 in | 0.031 in | 0.100 in | - | - | |
27AC0026B | Black | 0.260 in | Nylon 6/6 | 0.606 in | 0.055 in | 0.095 in | UL94 V-2 | 0.240 in | 0.218 in | 0.750 in | - | - | |
27AC0005B | Black | 0.223 in | Nylon 6/6 | 0.450 in | 0.060 in | 0.125 in | UL94 V-2 | 0.213 in | 0.187 in | 0.370 in | - | - | |
27AC0001B | Black | 0.192 in | Nylon 6/6 | 0.400 in | 0.060 in | 0.062 in | UL94 V-2 | 0.182 in | 0.125 in | 0.360 in | - | - | |
27AC0002B | Black | 0.135 in | Nylon 6/6 | 0.395 in | 0.060 in | 0.062 in | UL94 V-2 | 0.131 in | 0.125 in | 0.270 in | - | - | |
27AC0002 | Natural | 0.135 in | Nylon 6/6 | 0.395 in | 0.060 in | 0.062 in | UL94 V-2 | 0.131 in | 0.125 in | 0.270 in | - | - |
Per page:
1-10 of 102
1–5 of 102 variants
Per page:
27AC0024
Color
Natural
Maximum Hole Diameter
0.263 in
Material
Nylon 6/6
Anchor Length
1.135 in
27AC0026
Color
Natural
Maximum Hole Diameter
0.260 in
Material
Nylon 6/6
Anchor Length
0.606 in
27AC0031
Color
Natural
Maximum Hole Diameter
0.192 in
Material
Nylon 6/6
Anchor Length
0.525 in
27AC0010
Color
Natural
Maximum Hole Diameter
0.065 in
Material
Nylon 6/6
Anchor Length
0.125 in
Per page:
1–5 of 103
