SRMFW - DIN 34815 / 125 Nylon Flat Washers
Showing 1-7 of 7
Per page:1-7 of 7

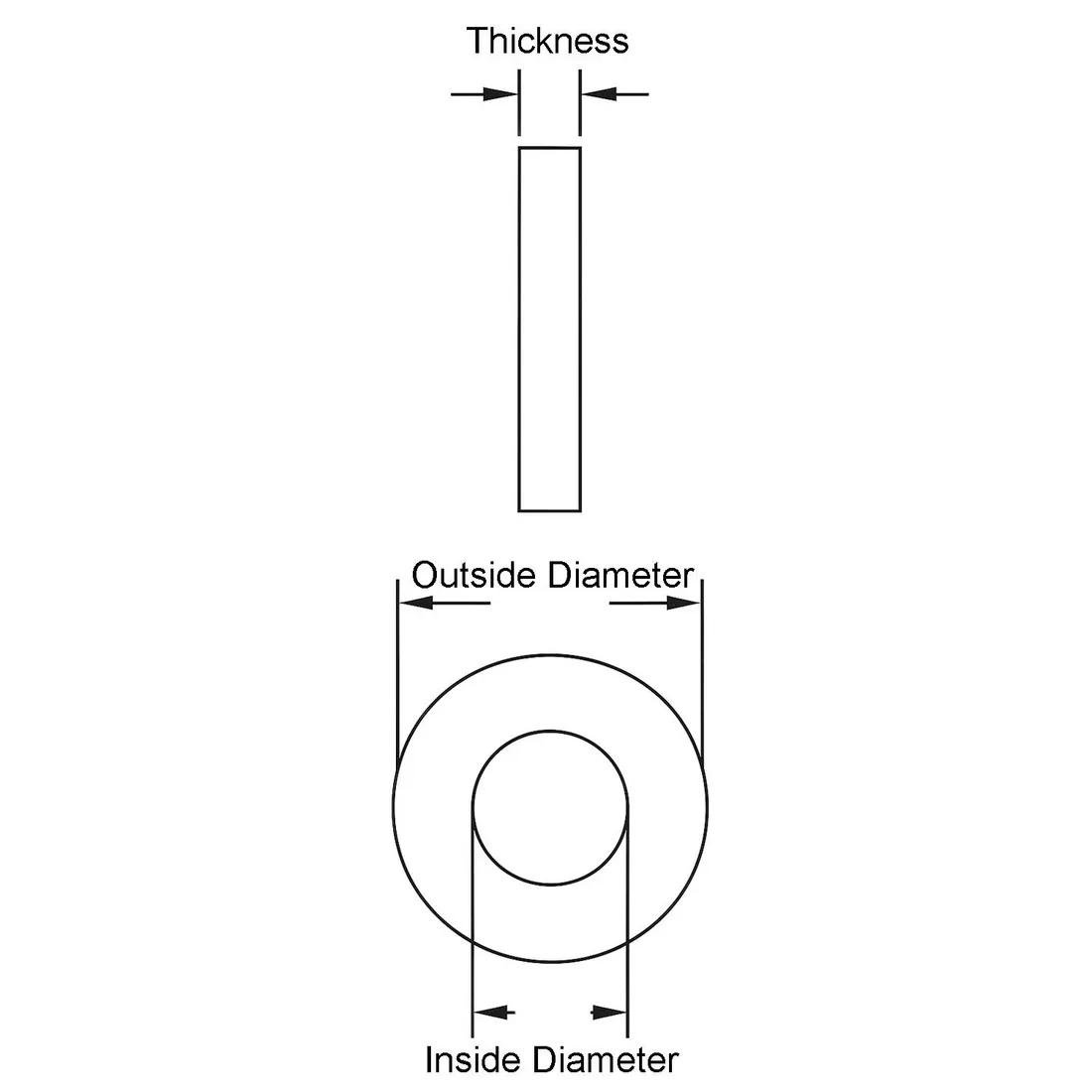

Item Code | Color | Material | Inside Diameter | Thickness | Outside Diameter | Material Flammability Standard | Screw Size | Request Quote |
|---|---|---|---|---|---|---|---|---|
MFW010A | Natural | Nylon 6/6 | 2.2 | 0.3 | 5.0 | UL94 V-2 | M2 | |
MFW110A | Natural | Nylon 6/6 | 15.0 | 3.0 | 30.0 | UL94 V-2 | M14 | |
MFW030A | Natural | Nylon 6/6 | 3.2 | 0.5 | 7.0 | UL94 V-2 | M3 | |
MFW040A | Natural | Nylon 6/6 | 3.7 | 0.5 | 8.0 | UL94 V-2 | M3.5 | |
MFW190A | Natural | Nylon 6/6 | 40.0 | 6.0 | 72.0 | UL94 V-2 | M36 | |
MFW150A | Natural | Nylon 6/6 | 25.0 | 4.0 | 44.0 | UL94 V-2 | M22 | |
MFW020A | Natural | Nylon 6/6 | 2.7 | 0.5 | 6.0 | UL94 V-2 | M2.5 |
Per page:
1-7 of 7
1–5 of 7 variants
Per page:
MFW010A
Color
Natural
Material
Nylon 6/6
Inside Diameter
2.2
Thickness
0.3
MFW110A
Color
Natural
Material
Nylon 6/6
Inside Diameter
15.0
Thickness
3.0
MFW030A
Color
Natural
Material
Nylon 6/6
Inside Diameter
3.2
Thickness
0.5
MFW040A
Color
Natural
Material
Nylon 6/6
Inside Diameter
3.7
Thickness
0.5
Per page:
1–5 of 8
