SR17M34816 - DIN 34816 / 9021 Nylon Flat Washers
Showing 1-10 of 16
Per page:1-10 of 16

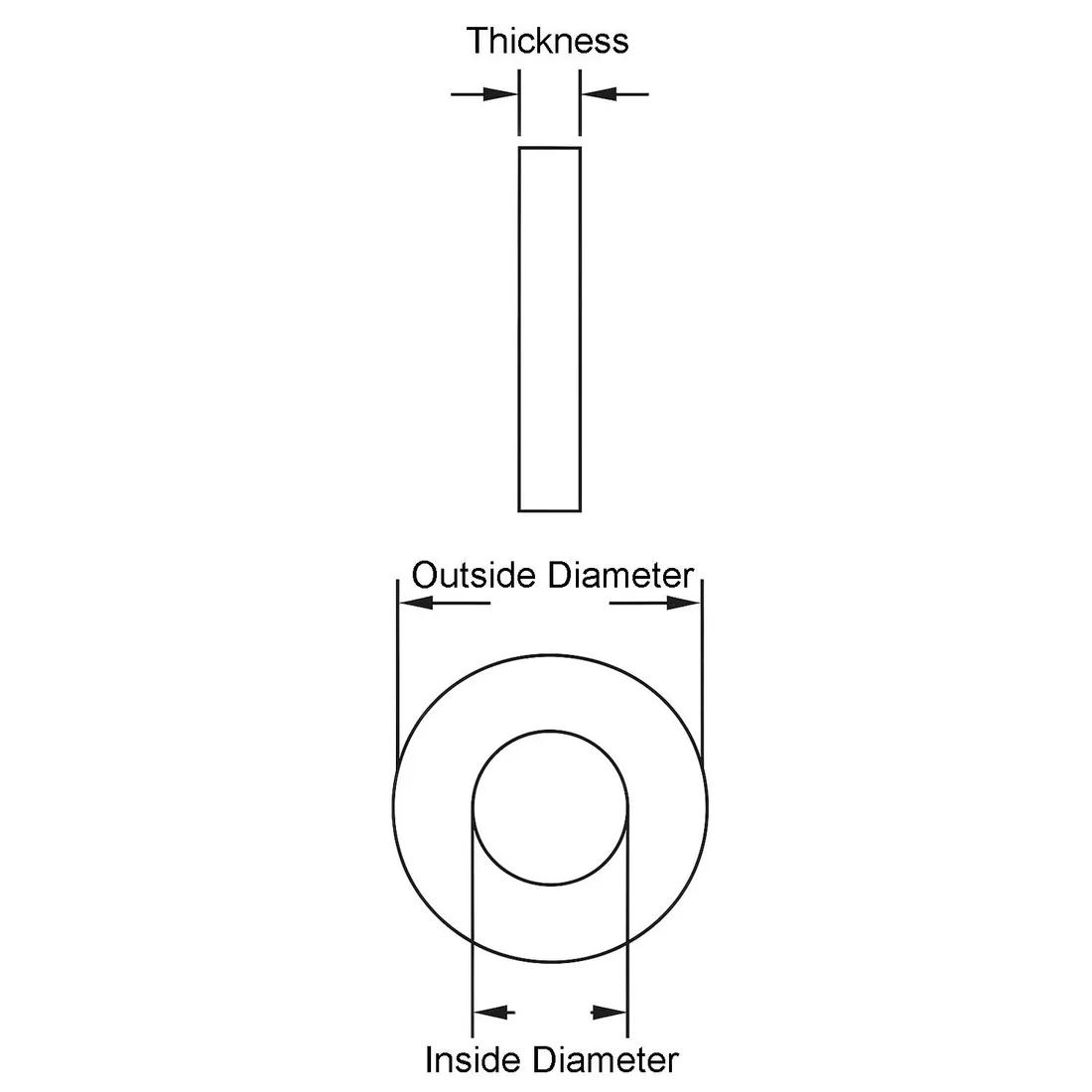

Item Code | Color | Material | Inside Diameter | Thickness | Outside Diameter | Material Flammability Standard | Screw Size | Request Quote |
|---|---|---|---|---|---|---|---|---|
17M03DIN34816B | Black | Nylon 6/6 | 3.2 | 0.9 | 9.0 | UL94 V-2 | M3 | |
17M10DIN34816 | Natural | Nylon 6/6 | 10.5 | 2.7 | 30.0 | UL94 V-2 | M10 | |
17M06DIN34816 | Natural | Nylon 6/6 | 6.4 | 1.8 | 18.0 | UL94 V-2 | M6 | |
17M04DIN34816B | Black | Nylon 6/6 | 4.3 | 1.1 | 12.0 | UL94 V-2 | M4 | |
17M05DIN34816B | Black | Nylon 6/6 | 5.3 | 1.4 | 15.0 | UL94 V-2 | M5 | |
17M08DIN34816B | Black | Nylon 6/6 | 8.4 | 2.2 | 24.0 | UL94 V-2 | M8 | |
17M16DIN34816B | Black | Nylon 6/6 | 17.0 | 3.3 | 50.0 | UL94 V-2 | M16 | |
17M05DIN34816 | Natural | Nylon 6/6 | 5.3 | 1.4 | 15.0 | UL94 V-2 | M5 | |
17M16DIN34816 | Natural | Nylon 6/6 | 17.0 | 3.3 | 50.0 | UL94 V-2 | M16 |
Per page:
1-10 of 16
1–5 of 16 variants
Per page:
17M03DIN34816B
Color
Black
Material
Nylon 6/6
Inside Diameter
3.2
Thickness
0.9
17M10DIN34816
Color
Natural
Material
Nylon 6/6
Inside Diameter
10.5
Thickness
2.7
17M06DIN34816
Color
Natural
Material
Nylon 6/6
Inside Diameter
6.4
Thickness
1.8
17M04DIN34816B
Color
Black
Material
Nylon 6/6
Inside Diameter
4.3
Thickness
1.1
Per page:
1–5 of 17
