SR17M34815 - DIN 34815 / 125 Nylon Flat Washers
Showing 1-10 of 16
Per page:1-10 of 16

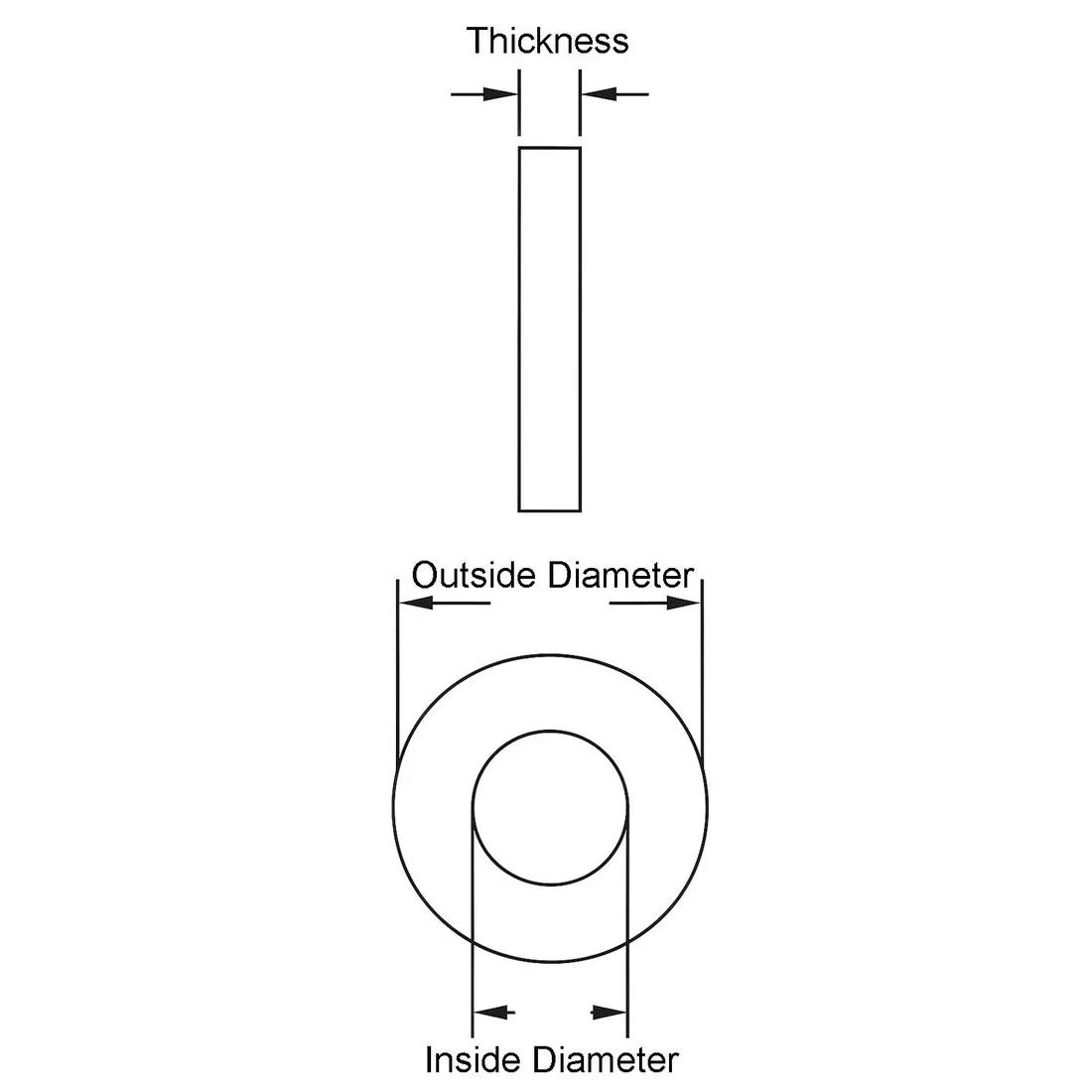

Item Code | Color | Material | Inside Diameter | Thickness | Outside Diameter | Material Flammability Standard | Screw Size | Request Quote |
|---|---|---|---|---|---|---|---|---|
17M10DIN34815 | Natural | Nylon 6/6 | 10.5 | 2.0 | 20.0 | UL94 V-2 | M10 | |
17M12DIN34815B | Black | Nylon 6/6 | 13.0 | 2.5 | 24.0 | UL94 V-2 | M12 | |
17M06DIN34815 | Natural | Nylon 6/6 | 6.4 | 1.6 | 12.0 | UL94 V-2 | M6 | |
17M08DIN34815 | Natural | Nylon 6/6 | 8.4 | 1.6 | 16.0 | UL94 V-2 | M8 | |
17M05DIN34815B | Black | Nylon 6/6 | 5.3 | 1.0 | 10.0 | UL94 V-2 | M6 | |
17M20DIN34815 | Natural | Nylon 6/6 | 21.0 | 3.0 | 37.0 | UL94 V-2 | M20 | |
17M04DIN34815 | Natural | Nylon 6/6 | 4.3 | 0.8 | 9.0 | UL94 V-2 | M4 | |
17M04DIN34815B | Black | Nylon 6/6 | 4.3 | 0.8 | 9.0 | UL94 V-2 | M4 | |
17M16DIN34815 | Natural | Nylon 6/6 | 17.0 | 3.0 | 30.0 | UL94 V-2 | M16 |
Per page:
1-10 of 16
1–5 of 16 variants
Per page:
17M10DIN34815
Color
Natural
Material
Nylon 6/6
Inside Diameter
10.5
Thickness
2.0
17M12DIN34815B
Color
Black
Material
Nylon 6/6
Inside Diameter
13.0
Thickness
2.5
17M06DIN34815
Color
Natural
Material
Nylon 6/6
Inside Diameter
6.4
Thickness
1.6
17M08DIN34815
Color
Natural
Material
Nylon 6/6
Inside Diameter
8.4
Thickness
1.6
Per page:
1–5 of 17
