SR16SRRW - Sealing and Retaining Washers
Showing 1-10 of 10
Per page:1-10 of 10

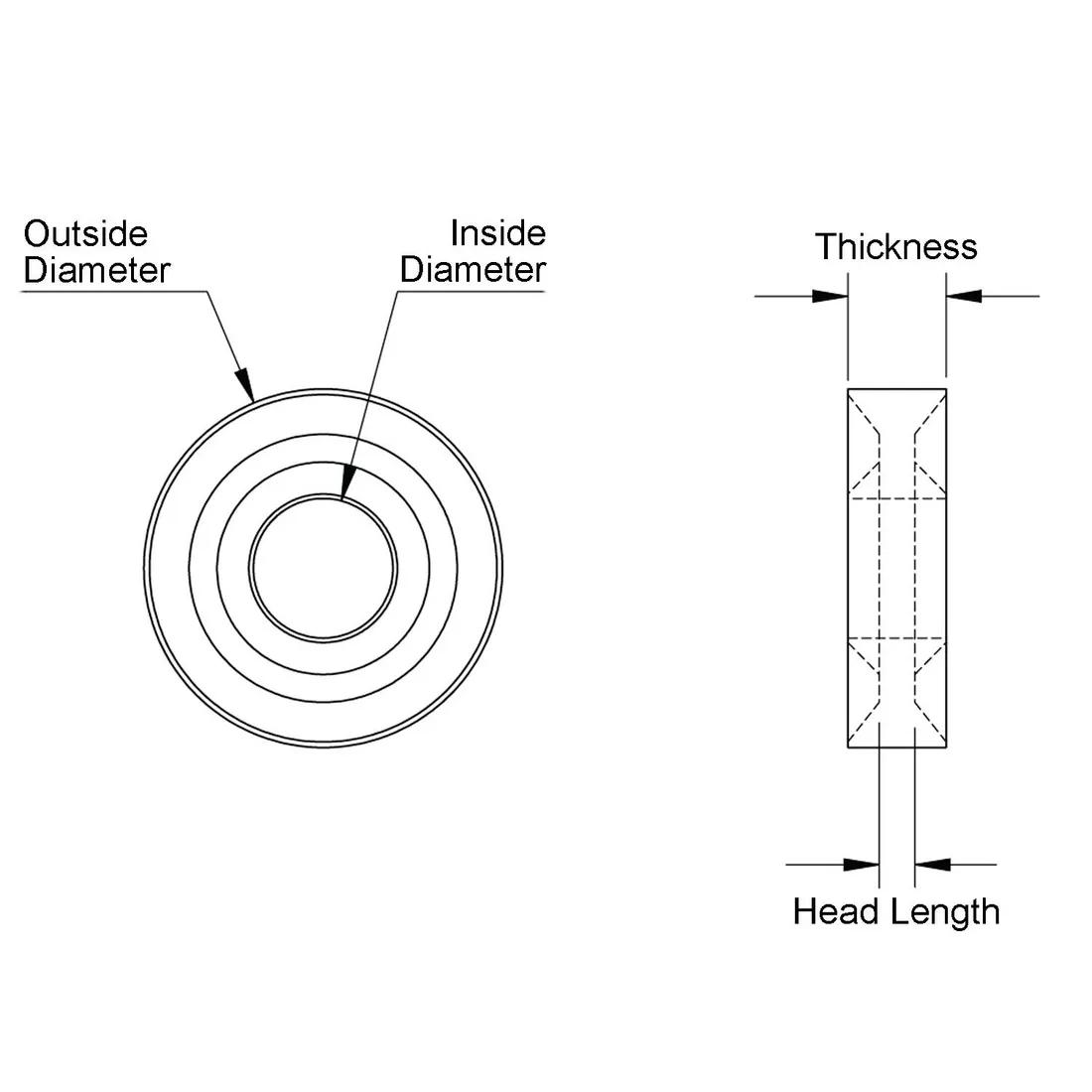

Item Code | Color | Head Length | Material | Inside Diameter | Thickness | Outside Diameter | Tooth Location | Material Flammability Standard | Screw Size | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
16SRRW010421200B | Black | 0.060 in | Nylon 6/6 | 5.0 mm | 0.120 in | 0.421 in | Sin dientes | UL94 V-2 | #10 | |
16SRRW050100504 | Natural | 0.079 in | Nylon 6/6 | 0.504 in | 0.197 in | 1.000 in | Internal | UL94 V-2 | 1/2 in | |
16SRRW025500256 | Natural | 0.070 in | Nylon 6/6 | 0.256 in | 0.139 in | 0.505 in | Toothless | UL94 V-2 | 1/4 in | |
16SRRW025500242 | Natural | 0.070 in | Nylon 6/6 | 0.242 in | 0.139 in | 0.500 in | Toothless | UL94 V-2 | 1/4 in | |
16SRRW004209083 | Natural | 0.032 in | Nylon 6/6 | 0.125 in | 0.088 in | 0.321 in | Toothless | UL94 V-2 | #4 | |
16SRRW031637318 | Natural | 0.060 in | Nylon 6/6 | 0.318 in | 0.158 in | 0.640 in | Toothless | UL94 V-2 | 5/16 in | |
16SRRW006354150 | Natural | 0.037 in | Nylon 6/6 | 0.154 in | 0.095 in | 0.363 in | Toothless | UL94 V-2 | #6 | |
16SRRW037771381 | Natural | 0.070 in | Nylon 6/6 | 9.6 | 0.177 | 0.775 | Toothless | UL94 V-2 | 3/8 in | |
16SRRW008374163 | Natural | 0.039 in | Nylon 6/6 | 4.0 | 0.103 | 0.381 | Toothless | UL94 V-2 | #8 |
Per page:
1-10 of 10
1–5 of 10 variants
Per page:
16SRRW010421200B
Color
Black
Head Length
0.060 in
Material
Nylon 6/6
Inside Diameter
5.0 mm
16SRRW050100504
Color
Natural
Head Length
0.079 in
Material
Nylon 6/6
Inside Diameter
0.504 in
16SRRW025500256
Color
Natural
Head Length
0.070 in
Material
Nylon 6/6
Inside Diameter
0.256 in
16SRRW025500242
Color
Natural
Head Length
0.070 in
Material
Nylon 6/6
Inside Diameter
0.242 in
