SR16MLSW - Metric Locking and Sealing Washer
Showing 1-10 of 16
Per page:1-10 of 16

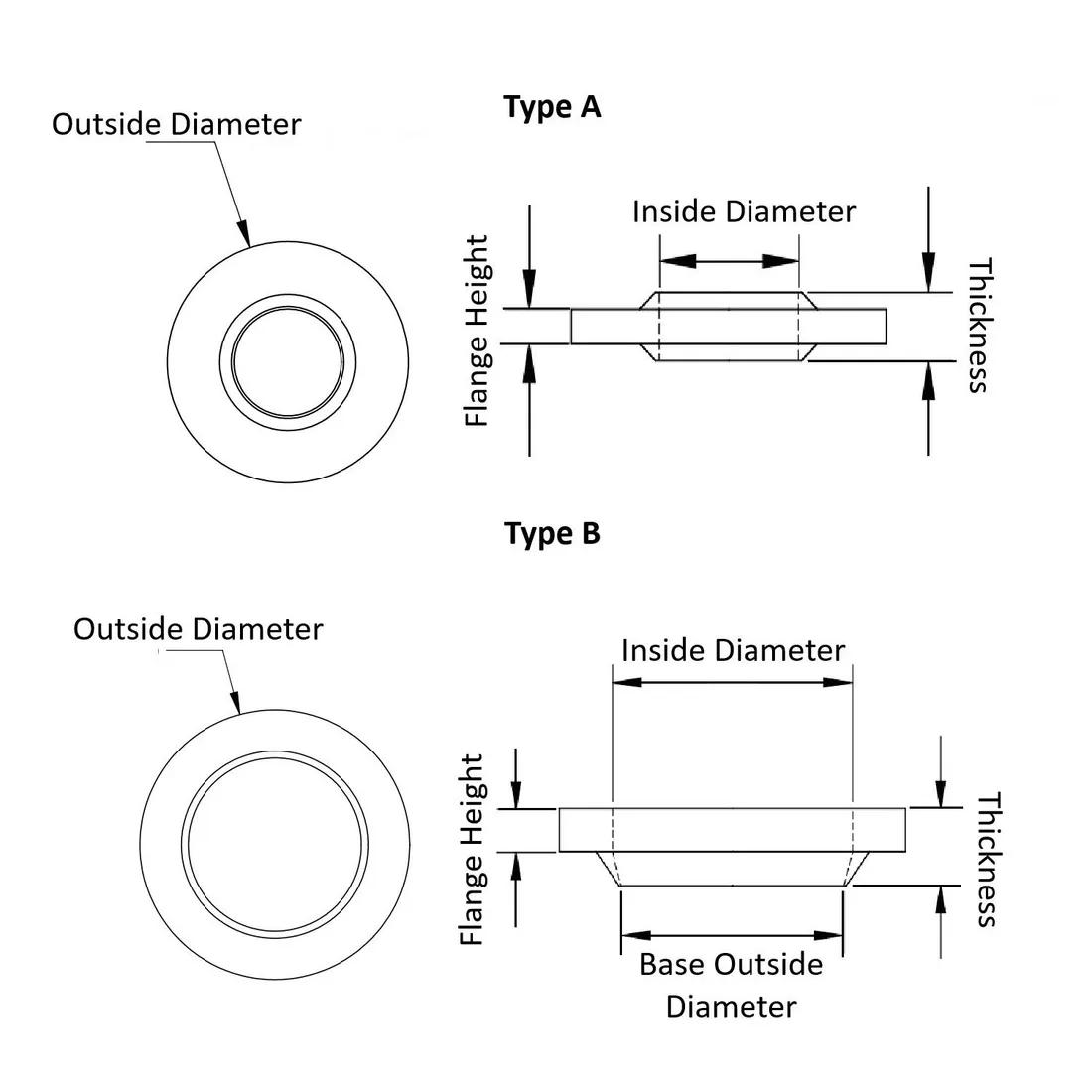

Item Code | Color | Inside Diameter | Minimum Outside Diameter | Thickness | Base Height | Outside Diameter | Maximum Operating Temperature | Material Flammability Standard | Screw Size | Minimum Operating Temperature | Material | Maximum Outside Diameter | Flange Height | Base Outside Diameter | Tooth Location | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
16MLSW060120160 | Natural | 6.1 mm | 4.0 mm | 4.0 mm | 1.2 mm | 12.0 mm | 185 °F | UL94 V-2 | #12, M6 | -40 °F | Nylon 6/6 | 12.0 mm | 1.6 mm | - | - | |
16MLSW040090125 | Natural | 4.2 mm | 11.2 mm | 2.8 mm | 0.75 mm | 9.0 mm | 185 °F | UL94 V-2 | #8, M4 | -40 °F | Nylon 6/6 | 22.2 mm | 1.3 mm | - | - | |
16MLSW042090120 | Natural | 4.2 mm | 3.7 mm | 3.0 mm | 1.8 mm | 9.0 mm | 185 °F | UL94 V-2 | #6, M3.5 | -40 °F | Nylon 6/6 | 9.0 mm | 1.2 mm | 3.7 mm | - | |
16MLSW060125150 | Natural | 6.3 mm | 4.9 mm | 2.8 mm | 1.3 mm | 12.5 mm | 185 °F | UL94 V-2 | #10, M5 | -40 °F | Nylon 6/6 | 12.5 mm | 1.5 mm | 5.0 mm | - | |
16MLSW048100150 | Natural | 4.8 mm | 4.1 mm | 3.2 mm | 1.7 mm | 10.0 mm | 185 °F | UL94 V-2 | M4 | -40 °F | Nylon 6/6 | 10.0 mm | 1.5 mm | 4.1 mm | - | |
16MLSW050104140 | Natural | 5.2 mm | 3.5 mm | 3.5 mm | 1.05 mm | 10.4 mm | 185 °F | UL94 V-2 | #10, M5 | -40 °F | Nylon 6/6 | 10.4 mm | 1.4 mm | - | - | |
16MLSW100196210 | Natural | 10.0 mm | 5.3 mm | 5.3 mm | 1.6 mm | 19.6 mm | 185 °F | UL94 V-2 | 3/8 in, M10 | -40 °F | Nylon 6/6 | 19.6 mm | 2.1 mm | - | - | |
16MLSW132190250 | Natural | 13.2 mm | 4.5 mm | 4.5 mm | 2.0 mm | 19.0 mm | 185 °F | UL94 V-2 | R 1/4 in | -40 °F | Nylon 6/6 | 19.0 mm | 2.5 mm | 12.2 mm | - | |
16MLSW080160160 | Natural | 8.2 mm | 3.1 mm | 3.1 mm | 1.5 mm | 16.0 mm | 185 °F | UL94 V-2 | 1/4 in, M7 | -40 °F | Nylon 6/6 | 16.0 mm | 1.6 mm | 7.0 mm | - |
Per page:
1-10 of 16
1–5 of 16 variants
Per page:
16MLSW060120160
Color
Natural
Inside Diameter
6.1 mm
Minimum Outside Diameter
4.0 mm
Thickness
4.0 mm
16MLSW040090125
Color
Natural
Inside Diameter
4.2 mm
Minimum Outside Diameter
11.2 mm
Thickness
2.8 mm
16MLSW042090120
Color
Natural
Inside Diameter
4.2 mm
Minimum Outside Diameter
3.7 mm
Thickness
3.0 mm
16MLSW060125150
Color
Natural
Inside Diameter
6.3 mm
Minimum Outside Diameter
4.9 mm
Thickness
2.8 mm
Per page:
1–5 of 17
