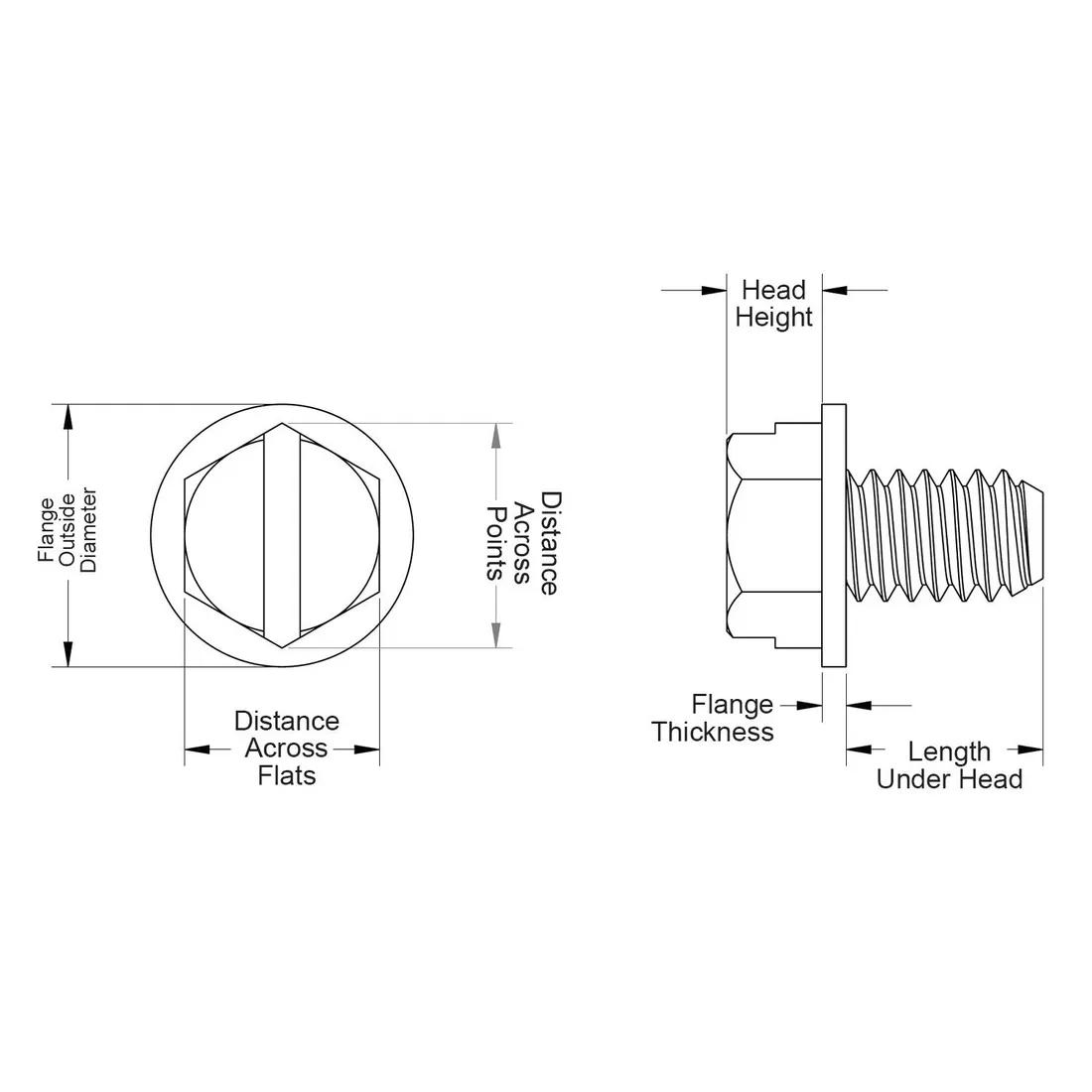

Item Code | Material Flammability Standard | Color | Length Under Head | Distance Across Flats | Head Height | Distance Across Points | Flange Outside Diameter | Thread Size | Material | Style | Flange Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
401017B | UL94 V-2 | Black | 0.375 in | 0.371 in | 0.181 in | 0.424 in | 0.500 in | 1/4-20 | Nylon 6/6 | Hexagonal | 0.046 in | |
401016B | UL94 V-2 | Black | 0.625 in | 0.371 in | 0.181 in | 0.424 in | 0.500 in | 1/4-20 | Nylon 6/6 | Hexagonal | 0.046 in | |
401017 | UL94 V-2 | Natural | 0.375 in | 0.371 in | 0.181 in | 0.424 in | 0.500 in | 1/4-20 | Nylon 6/6 | Slotted Hex Flange | 0.046 in | |
401016 | UL94 V-2 | Natural | 0.625 in | 0.371 in | 0.181 in | 0.424 in | 0.500 in | 1/4-20 | Nylon 6/6 | Slotted Hex Flange | 0.046 in |
Material Flammability Standard
UL94 V-2
Color
Black
Length Under Head
0.375 in
Distance Across Flats
0.371 in
Material Flammability Standard
UL94 V-2
Color
Black
Length Under Head
0.625 in
Distance Across Flats
0.371 in
Material Flammability Standard
UL94 V-2
Color
Natural
Length Under Head
0.375 in
Distance Across Flats
0.371 in
Material Flammability Standard
UL94 V-2
Color
Natural
Length Under Head
0.625 in
Distance Across Flats
0.371 in
