SR50M - Metric Phillips Oval Head Screw
Showing 1-10 of 73
Per page:1-10 of 73

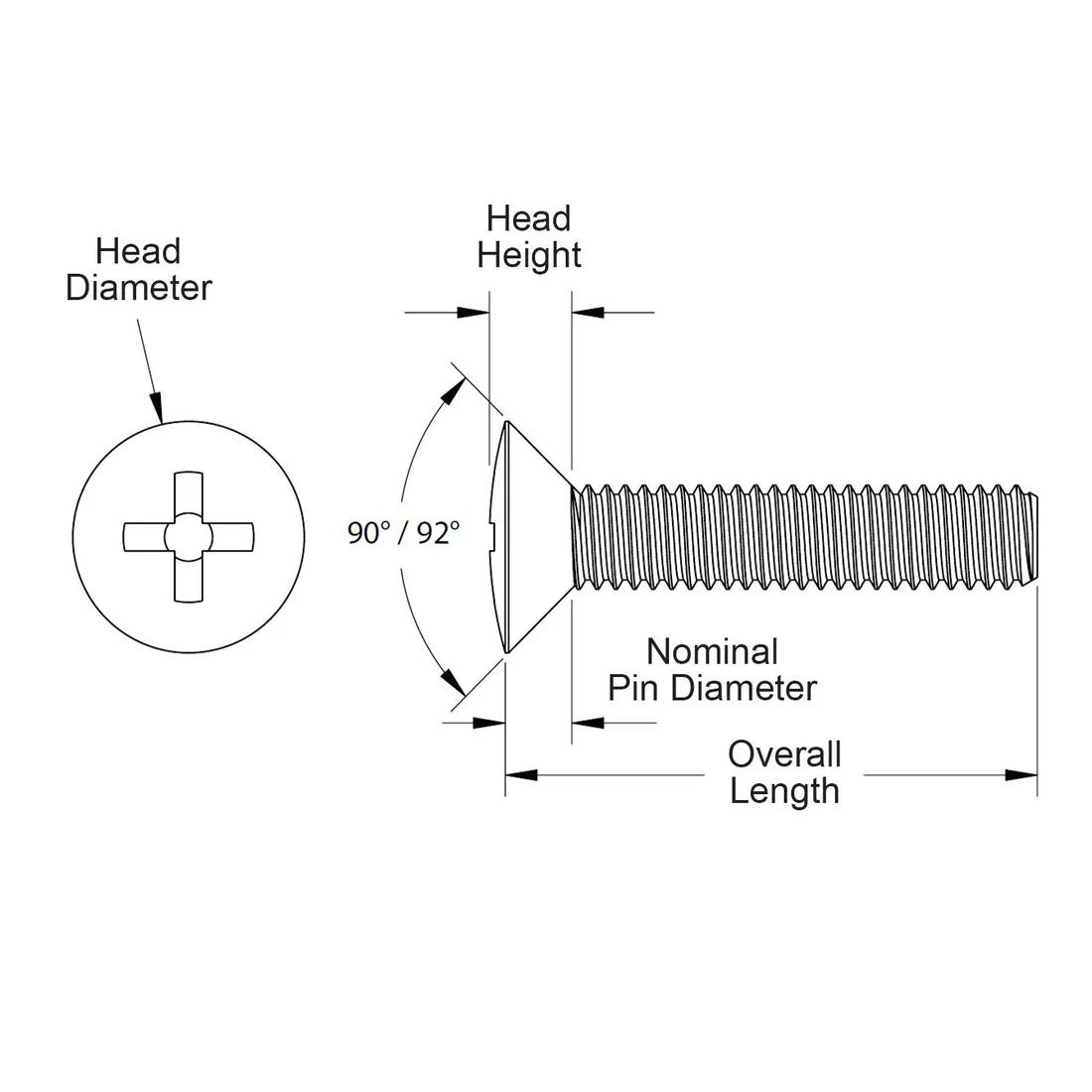

Item Code | Material Flammability Standard | Color | Countersunk Screw Degree | Overall Length | Head Diameter | Thread Size | Material | Head Height | Nominal Pin Diameter (Seed) | Style | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
50M030050M012B | UL94 V-2 | Black | 90 °/ 92 ° | 12.0 mm | 5.2 - 6.3 mm | M3 x 0.5 | Nylon 6/6 | - | - | - | |
50M035060M016B | UL94 V-2 | Black | 90 °/ 92 ° | 16.0 mm | 6.9 - 8.2 mm | M3.5 x 0.6 | Nylon 6/6 | - | - | - | |
50M035060M035B | UL94 V-2 | Black | 90 °/ 92 ° | 35.0 mm | 6.9 - 8.2 mm | M3.5 x 0.6 | Nylon 6/6 | - | - | - | |
50M030050M010B | UL94 V-2 | Black | 90 °/ 92 ° | 10.0 mm | 5.2 - 6.3 mm | M3 x 0.5 | Nylon 6/6 | - | - | - | |
50M030050M006B | UL94 V-2 | Black | 90 °/ 92 ° | 6.0 mm | 5.2 - 6.3 mm | M3 x 0.5 | Nylon 6/6 | - | - | - | |
50M040070M025B | UL94 V-2 | Black | 90 °/ 92 ° | 25.0 mm | 8.0 - 9.4 mm | M4 x 0.7 | Nylon 6/6 | - | - | - | |
50M040070M016B | UL94 V-2 | Black | 90 °/ 92 ° | 16.0 mm | 8.0 - 9.4 mm | M4 x 0.7 | Nylon 6/6 | - | - | - | |
50M040070M010B | UL94 V-2 | Black | 90 °/ 92 ° | 10.0 mm | 8.0 - 9.4 mm | M4 x 0.7 | Nylon 6/6 | - | - | - | |
50M035060M020B | UL94 V-2 | Black | 90 °/ 92 ° | 20.0 mm | 6.9 - 8.2 mm | M3.5 x 0.6 | Nylon 6/6 | - | - | - |
Per page:
1-10 of 73
1–5 of 73 variants
Per page:
50M030050M012B
Material Flammability Standard
UL94 V-2
Color
Black
Countersunk Screw Degree
90 °/ 92 °
Overall Length
12.0 mm
50M035060M016B
Material Flammability Standard
UL94 V-2
Color
Black
Countersunk Screw Degree
90 °/ 92 °
Overall Length
16.0 mm
50M035060M035B
Material Flammability Standard
UL94 V-2
Color
Black
Countersunk Screw Degree
90 °/ 92 °
Overall Length
35.0 mm
50M030050M010B
Material Flammability Standard
UL94 V-2
Color
Black
Countersunk Screw Degree
90 °/ 92 °
Overall Length
10.0 mm
Per page:
1–5 of 74
