SR50J - Metric Hex Unslotted Screw

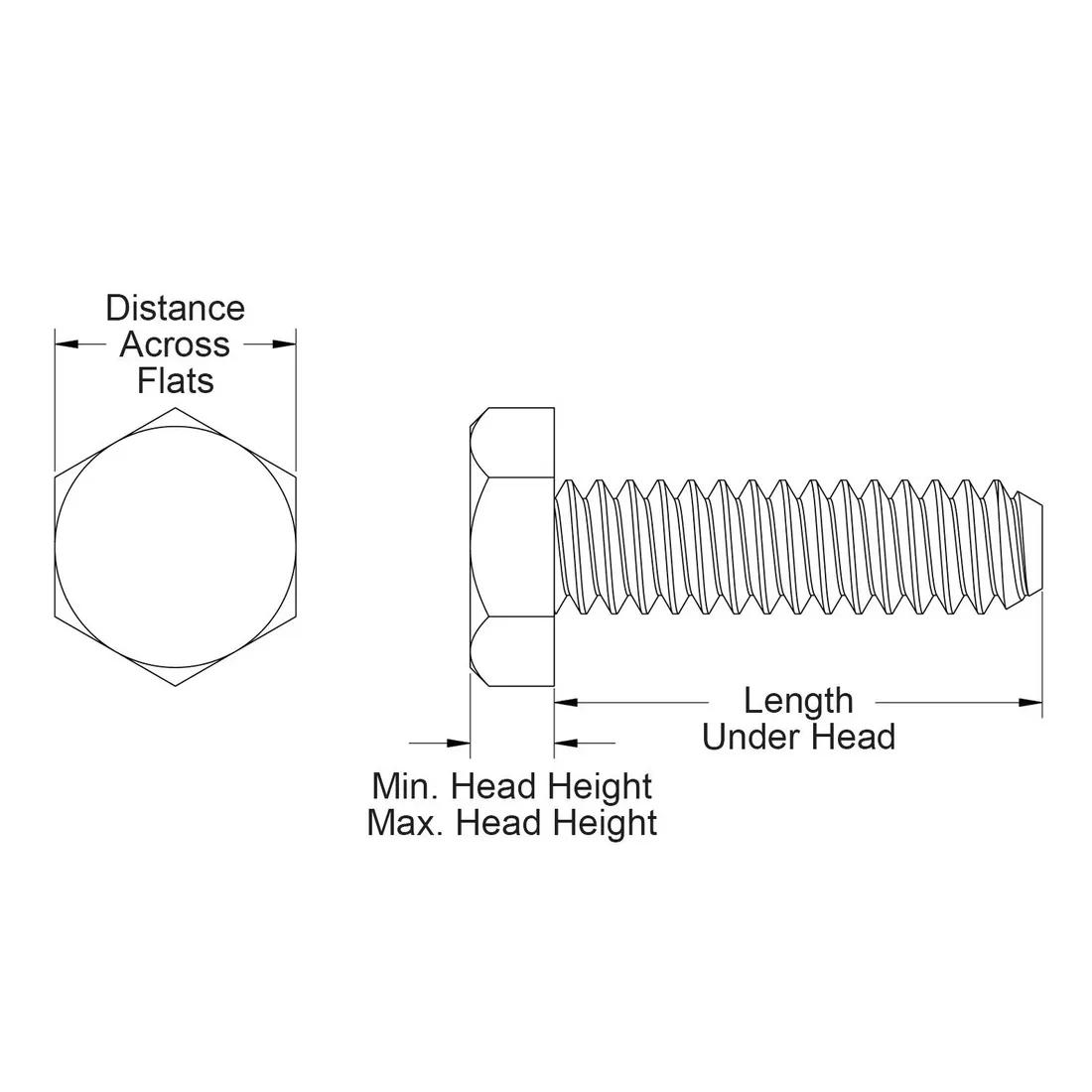

Item Code | Drive Type | Material Flammability Standard | Color | Length Under Head | Screw Type | Overall Length | Distance Across Flats | Head Height | Thread Length | Rivet Head Shape | Style | Pitch/TPI | Head Type | Thread Size | Material | Maximum Head Height | Minimum Head Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
50M035060J010B | External Hexagonal Unslotted Drive | UL94 V-2 | Black | 10.0 mm | Part Threaded Screw | 12.6 mm | 5.5 mm | 2.6 mm | 10.0 mm | Hexagonal | Hex | 0.6 mm | Hexagonal Head | M3.5 x 0.6 | Nylon 6/6 | - | - | |
50M030050J020B | External Hexagonal Unslotted Drive | UL94 V-2 | Black | 20.0 mm | Part Threaded Screw | 22.3 mm | 5.0 mm | 2.3 mm | 20.0 mm | Hexagonal | Hex | 0.5 mm | Hexagonal Head | M3 x 0.5 | Nylon 6/6 | - | - | |
50M040070J012B | External Hexagonal Unslotted Drive | UL94 V-2 | Black | 12.0 mm | Part Threaded Screw | 15.0 mm | 7.0 mm | 3.0 mm | 12.0 mm | Hexagonal | Hex | 0.7 mm | Hexagonal Head | M4 x 0.7 | Nylon 6/6 | - | - | |
50M035060J008B | External Hexagonal Unslotted Drive | UL94 V-2 | Black | 8.0 mm | Part Threaded Screw | 10.6 mm | 5.5 mm | 2.6 mm | 8.0 mm | Hexagonal | Hex | 0.6 mm | Hexagonal Head | M3.5 x 0.6 | Nylon 6/6 | - | - | |
50M120175J035B | External Hexagonal Unslotted Drive | UL94 V-2 | Black | 35.0 mm | Fully Threaded Screw | 44.0 mm | 18.0 mm | 9.0 mm | 35.0 mm | Hexagonal | Hex | 1.75 mm | Hexagonal Head | M12 x 1.75 | Nylon 6/6 | 9.0 mm | 7.8 mm | |
50M050080J070B | External Hexagonal Unslotted Drive | UL94 V-2 | Black | 70.0 mm | Fully Threaded Screw | 73.8 mm | 8.0 mm | 3.8 mm | 70.0 mm | Hexagonal | Hex | 0.8 mm | Hexagonal Head | M5 x 0.8 | Nylon 6/6 | 3.8 mm | 3.3 mm | |
50M035060J020B | External Hexagonal Unslotted Drive | UL94 V-2 | Black | 20.0 mm | Part Threaded Screw | 22.6 mm | 5.5 mm | 2.6 mm | 20.0 mm | Hexagonal | Hex | 0.6 mm | Hexagonal Head | M3.5 x 0.6 | Nylon 6/6 | - | - | |
50M100150J050B | External Hexagonal Unslotted Drive | UL94 V-2 | Black | 50.0 mm | Part Threaded Screw | 57.5 mm | 16.0 mm | 7.5 mm | 50.0 mm | Hexagonal | Hex | 1.5 mm | Hexagonal Head | M10 x 1.5 | Nylon 6/6 | - | - | |
50M100150J060B | External Hexagonal Unslotted Drive | UL94 V-2 | Black | 60.0 mm | Part Threaded Screw | 67.5 mm | 16.0 mm | 7.5 mm | 60.0 mm | Hexagonal | Hex | 1.5 mm | Hexagonal Head | M10 x 1.5 | Nylon 6/6 | - | - |
50M035060J010B
Drive Type
External Hexagonal Unslotted Drive
Material Flammability Standard
UL94 V-2
Color
Black
Length Under Head
10.0 mm
50M030050J020B
Drive Type
External Hexagonal Unslotted Drive
Material Flammability Standard
UL94 V-2
Color
Black
Length Under Head
20.0 mm
50M040070J012B
Drive Type
External Hexagonal Unslotted Drive
Material Flammability Standard
UL94 V-2
Color
Black
Length Under Head
12.0 mm
50M035060J008B
Drive Type
External Hexagonal Unslotted Drive
Material Flammability Standard
UL94 V-2
Color
Black
Length Under Head
8.0 mm
