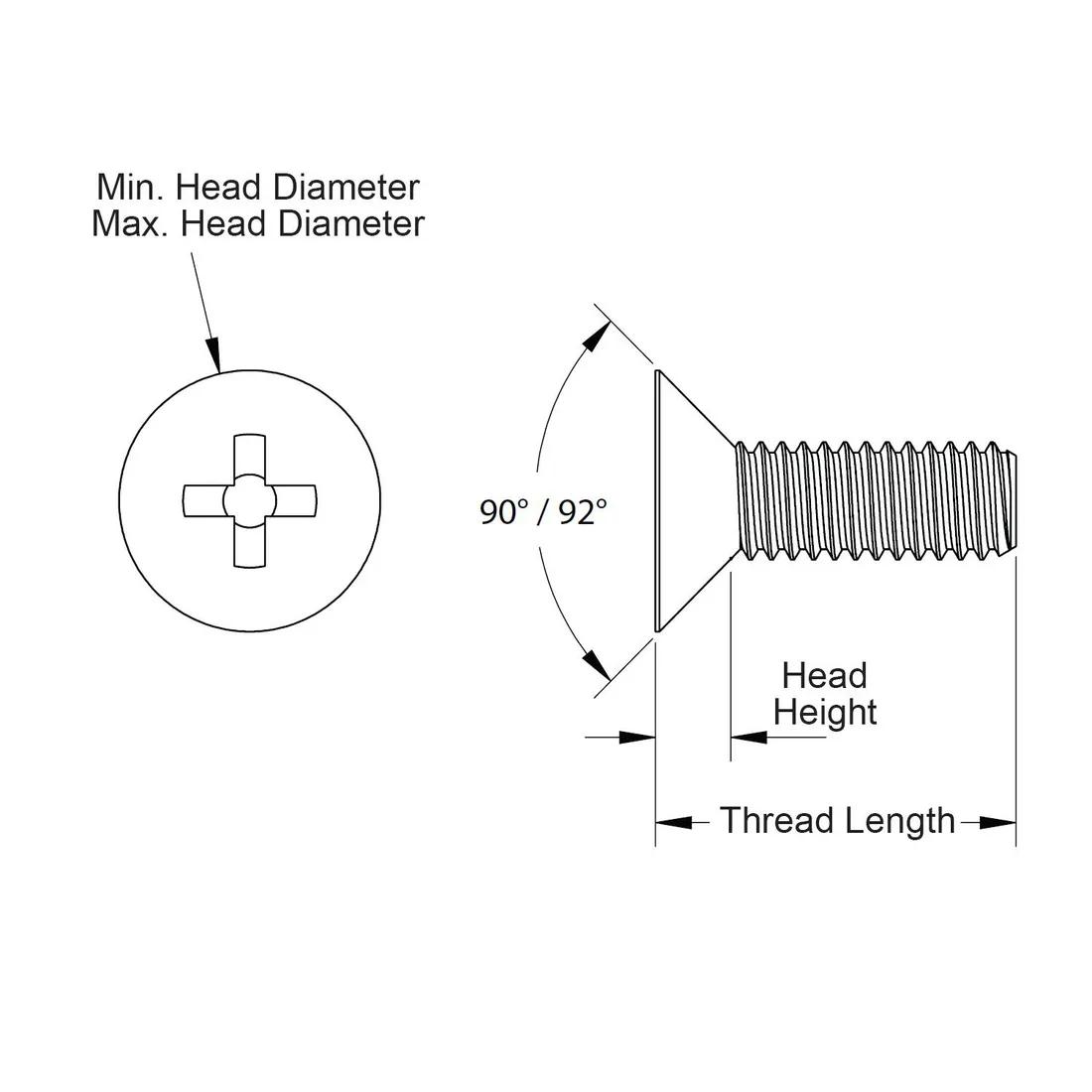

SR50I - Metric Phillips Flat Head Screw
Item Code | Material Flammability Standard | Color | Maximum Head Diameter (Seed) | Countersunk Screw Degree | Overall Length | Head Height | Style | Minimum Head Diameter (Seed) | Thread Size | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
50M080125I020B | UL94 V-2 | Black | 17.3 mm | 90 °/ 92 ° | 20.0 mm | 4.6 mm | 90°/92° avellanado | 15.4 mm | M8 x 1.25 | Nylon 6/6 | |
50M040070I008B | UL94 V-2 | Black | 9.4 mm | 90 °/ 92 ° | 8.0 mm | 2.7 mm | 90°/92° avellanado | 8.0 mm | M4 x 0.7 | Nylon 6/6 | |
50M050080I016B | UL94 V-2 | Black | 10.4 mm | 90 °/ 92 ° | 16.0 mm | 2.7 mm | 90°/92° avellanado | 8.9 mm | M5 x 0.8 | Nylon 6/6 | |
50M035060I020B | UL94 V-2 | Black | 8.2 mm | 90 °/ 92 ° | 20.0 mm | 2.3 mm | 90°/92° avellanado | 6.9 mm | M3.5 x 0.6 | Nylon 6/6 | |
50M025045I025B | UL94 V-2 | Black | 5.5 mm | 90 °/ 92 ° | 25.0 mm | 1.5 mm | 90°/92° avellanado | 4.4 mm | M2.5 x 0.45 | Nylon 6/6 | |
50M080125I010B | UL94 V-2 | Black | 17.3 mm | 90 °/ 92 ° | 10.0 mm | 4.6 mm | 90°/92° avellanado | 15.4 mm | M8 x 1.25 | Nylon 6/6 | |
50M050080I040B | UL94 V-2 | Black | 10.4 mm | 90 °/ 92 ° | 40.0 mm | 2.7 mm | 90°/92° avellanado | 8.9 mm | M5 x 0.8 | Nylon 6/6 | |
50M080125I016B | UL94 V-2 | Black | 17.3 mm | 90 °/ 92 ° | 16.0 mm | 4.6 mm | 90°/92° avellanado | 15.4 mm | M8 x 1.25 | Nylon 6/6 | |
50M030050I012B | UL94 V-2 | Black | 6.3 mm | 90 °/ 92 ° | 12.0 mm | 1.7 mm | - | 5.2 mm | M3 x 0.5 | Nylon 6/6 |
50M080125I020B
Material Flammability Standard
UL94 V-2
Color
Black
Maximum Head Diameter (Seed)
17.3 mm
Countersunk Screw Degree
90 °/ 92 °
50M040070I008B
Material Flammability Standard
UL94 V-2
Color
Black
Maximum Head Diameter (Seed)
9.4 mm
Countersunk Screw Degree
90 °/ 92 °
50M050080I016B
Material Flammability Standard
UL94 V-2
Color
Black
Maximum Head Diameter (Seed)
10.4 mm
Countersunk Screw Degree
90 °/ 92 °
50M035060I020B
Material Flammability Standard
UL94 V-2
Color
Black
Maximum Head Diameter (Seed)
8.2 mm
Countersunk Screw Degree
90 °/ 92 °
