SR50H - Metric Slotted Flat Head Screw

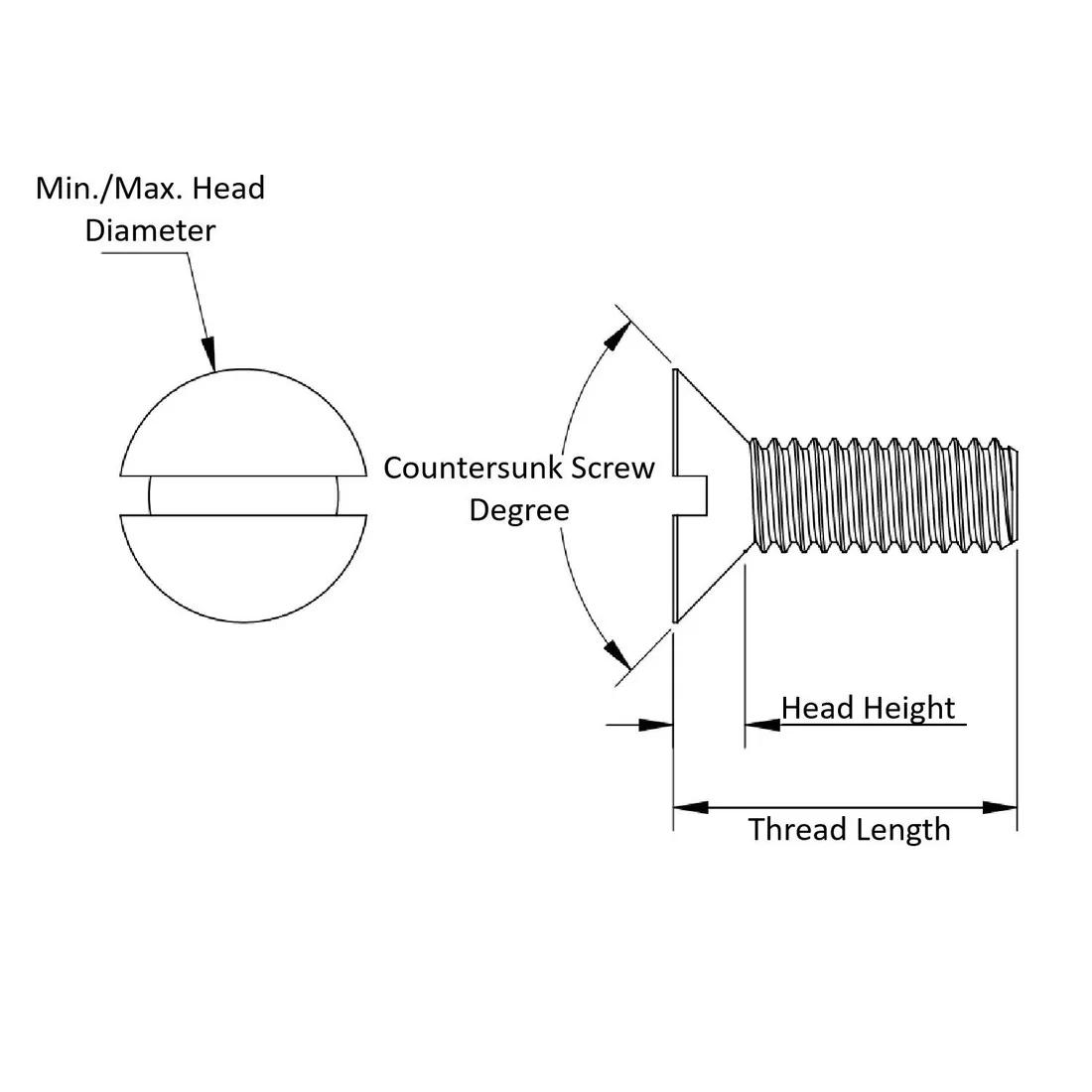

Item Code | Material Flammability Standard | Color | Maximum Head Diameter (Seed) | Countersunk Screw Degree | Head Height | Minimum Head Diameter (Seed) | Thread Size | Material | Style | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
50M060100H008B | UL94 V-2 | Black | 12.6 mm | 90 °/ 92 ° | 3.3 mm | 10.9 mm | M6 x 1.0 | Nylon 6/6 | - | |
50M025045H006B | UL94 V-2 | Black | 5.5 mm | 90 °/ 92 ° | 1.5 mm | 4.4 mm | M2.5 x 0.45 | Nylon 6/6 | - | |
50M025045H008B | UL94 V-2 | Black | 5.5 mm | 90 °/ 92 ° | 1.5 mm | 4.4 mm | M2.5 x 0.45 | Nylon 6/6 | - | |
50M035060H010B | UL94 V-2 | Black | 8.2 mm | 90 °/ 92 ° | 2.3 mm | 6.9 mm | M3.5 x 0.6 | Nylon 6/6 | - | |
50M050080H008B | UL94 V-2 | Black | 10.4 mm | 90 °/ 92 ° | 2.7 mm | 8.9 mm | M5 x 0.8 | Nylon 6/6 | - | |
50M050080H012B | UL94 V-2 | Black | 10.4 mm | 90 °/ 92 ° | 2.7 mm | 8.9 mm | M5 x 0.8 | Nylon 6/6 | - | |
50M060100H012B | UL94 V-2 | Black | 12.6 mm | 90 °/ 92 ° | 3.3 mm | 10.9 mm | M6 x 1.0 | Nylon 6/6 | - | |
50M040070H010B | UL94 V-2 | Black | 9.4 mm | 90 °/ 92 ° | 2.7 mm | 8.0 mm | M4 x 0.7 | Nylon 6/6 | - | |
50M030050H025B | UL94 V-2 | Black | 6.3 mm | 90 °/ 92 ° | 1.7 mm | 5.2 mm | M3 x 0.5 | Nylon 6/6 | - |
50M060100H008B
Material Flammability Standard
UL94 V-2
Color
Black
Maximum Head Diameter (Seed)
12.6 mm
Countersunk Screw Degree
90 °/ 92 °
50M025045H006B
Material Flammability Standard
UL94 V-2
Color
Black
Maximum Head Diameter (Seed)
5.5 mm
Countersunk Screw Degree
90 °/ 92 °
50M025045H008B
Material Flammability Standard
UL94 V-2
Color
Black
Maximum Head Diameter (Seed)
5.5 mm
Countersunk Screw Degree
90 °/ 92 °
50M035060H010B
Material Flammability Standard
UL94 V-2
Color
Black
Maximum Head Diameter (Seed)
8.2 mm
Countersunk Screw Degree
90 °/ 92 °
