SR27SCP - Slotted Pan Spin Clips
Showing 1-10 of 10
Per page:1-10 of 10

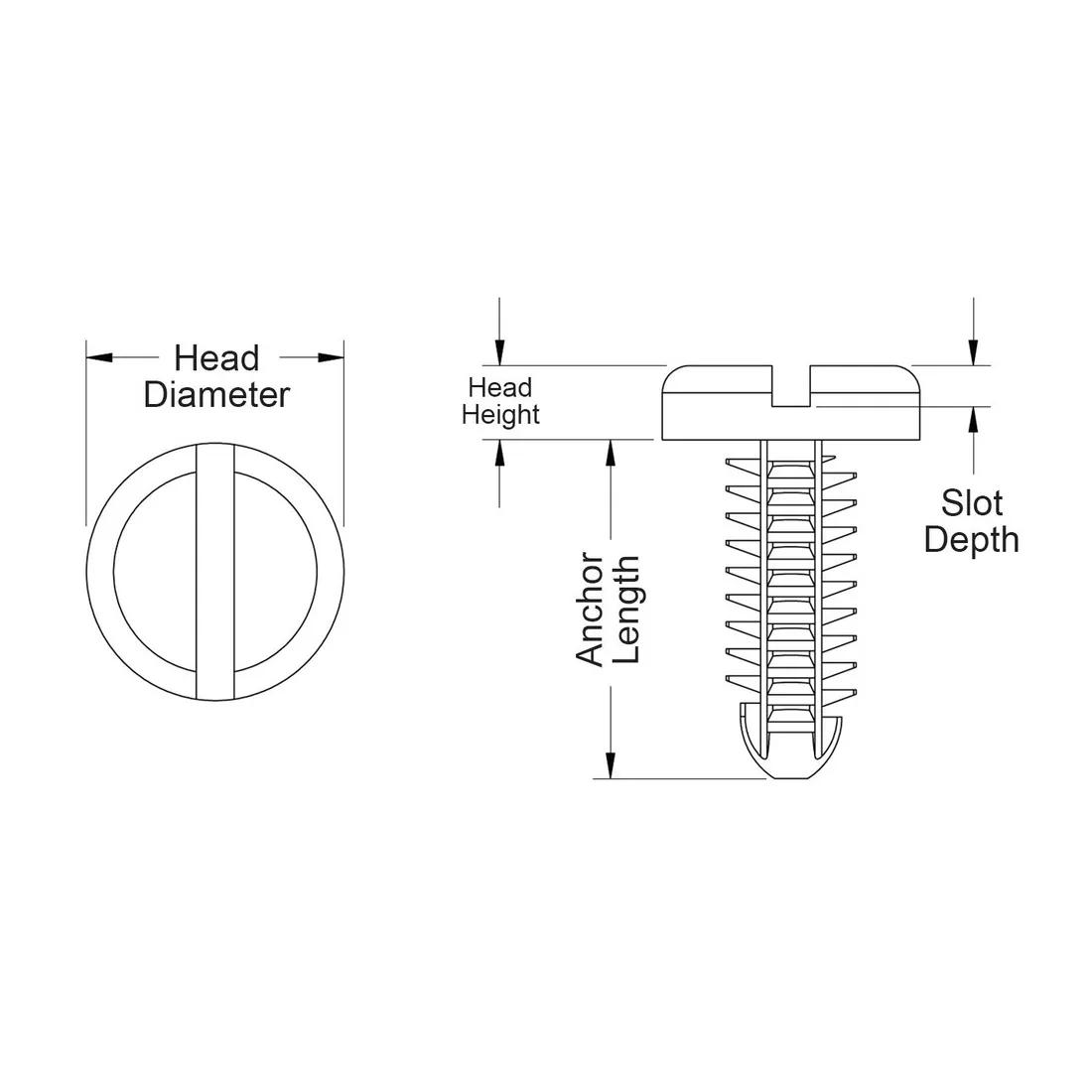

Item Code | Slot Depth | Color | Material | Head Diameter | Head Height | Overall Height | Material Flammability Standard | Screw Size | UL/CSA Description | Anchor Length | Maximum Hole Diameter | Maximum Operating Temperature | Minimum Operating Temperature | Maximum Panel Thickness | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
27SC2520P037B | 0.075 in | Black | Nylon 6/6 | 0.475 in | 0.137 in | 0.512 in | UL94 V-2 | 1/4-20 | UL E70062 | 0.375 in | - | - | - | - | - | |
27SC2520P100B | 0.075 in | Black | Nylon 6/6 | 0.475 in | 0.137 in | 1.137 in | UL94 V-2 | 1/4-20 | UL E70062 | 1.000 in | - | - | - | - | - | |
27SC2520P062 | 0.075 in | Natural | Nylon | 0.475 | 0.137 | 0.762 in | UL94 V-2 | - | UL E70062 | 0.625 | 5.2 mm | 85 | -40 | 15.9 mm | - | |
27SC2520P037 | 0.075 in | Natural | Nylon | 0.475 | 0.137 | 0.512 in | UL94 V-2 | - | UL E70062 | 0.375 | 5.2 mm | 85 | -40 | 3.5 mm | 19.1 mm | |
27SC2520P075 | 0.075 in | Natural | Nylon | 0.475 | 0.137 | 0.887 in | UL94 V-2 | - | UL E70062 | 0.750 | 5.2 mm | 85 | -40 | 19.1 mm | - | |
27SC2520P100 | 0.075 in | Natural | Nylon | 0.475 | 0.137 | 1.137 in | UL94 V-2 | - | UL E70062 | 1.000 | 5.2 mm | 85 | -40 | 25.4 mm | - | |
27SC2520P050 | 0.075 in | Natural | Nylon | 0.475 | 0.137 | 0.637 in | UL94 V-2 | - | UL E70062 | 0.500 | 5.2 mm | 85 | -40 | 12.7 mm | - | |
27SC2520P050B | 0.075 in | Black | Nylon 6/6 | 0.475 in | 0.137 in | 0.637 in | UL94 V-2 | 1/4-20 | UL E70062 | 0.500 in | - | - | - | - | - | |
27SC2520P062B | 0.075 in | Black | Nylon 6/6 | 0.475 in | 0.137 in | 0.762 in | UL94 V-2 | 1/4-20 | UL E70062 | 0.625 in | - | - | - | - | - |
Per page:
1-10 of 10
1–5 of 10 variants
Per page:
27SC2520P037B
Slot Depth
0.075 in
Color
Black
Material
Nylon 6/6
Head Diameter
0.475 in
27SC2520P100B
Slot Depth
0.075 in
Color
Black
Material
Nylon 6/6
Head Diameter
0.475 in
27SC2520P062
Slot Depth
0.075 in
Material Flammability Standard
UL94 V-2
Color
Natural
Maximum Hole Diameter
5.2 mm
27SC2520P037
Slot Depth
0.075 in
Material Flammability Standard
UL94 V-2
Color
Natural
Maximum Hole Diameter
5.2 mm
Per page:
1–5 of 11
