SR27SCK - Knurled Spin Clip
Showing 1-10 of 10
Per page:1-10 of 10

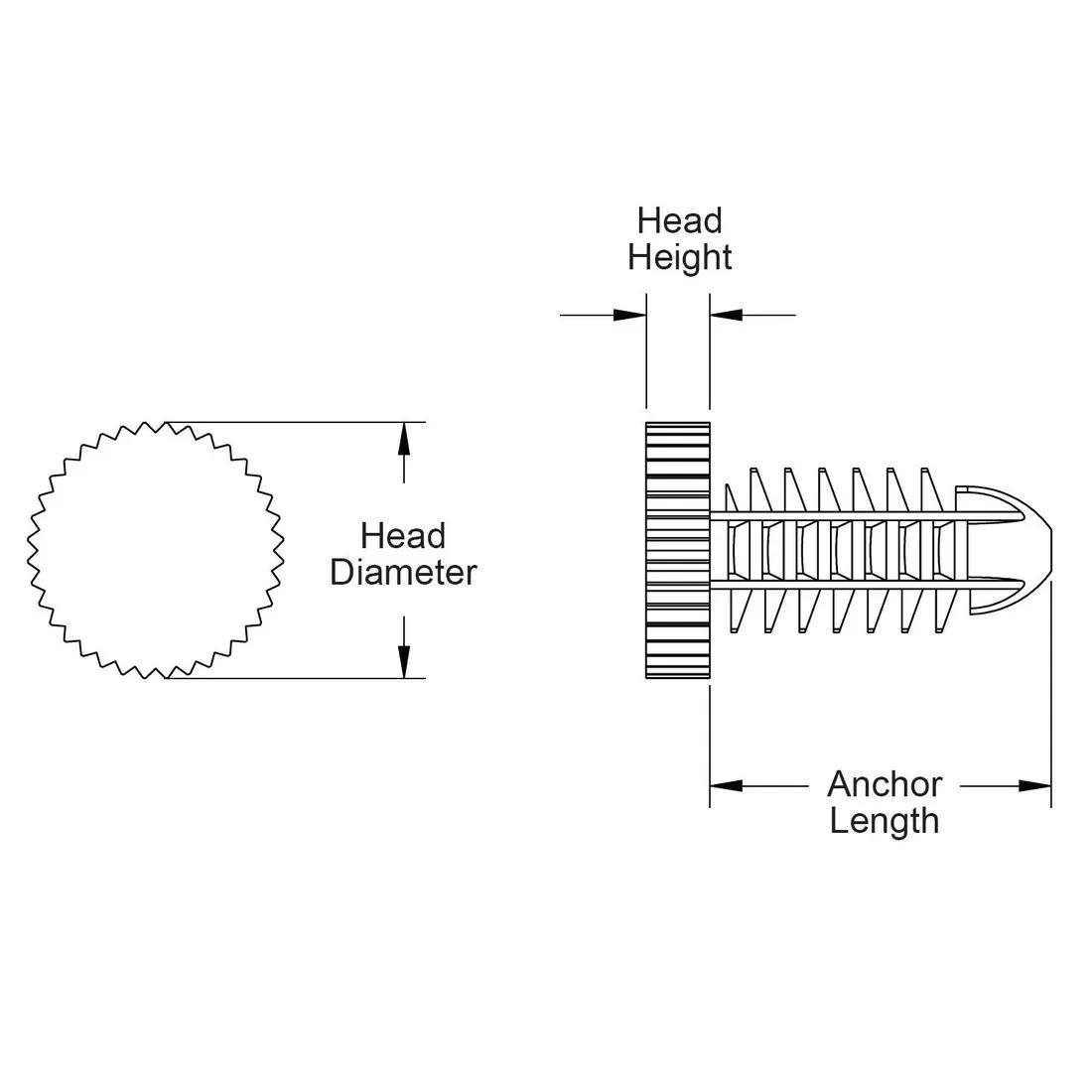

Item Code | Color | Material | Head Diameter | Head Height | Material Flammability Standard | Screw Size | UL/CSA Description | Anchor Length | Maximum Hole Diameter | Overall Height | Maximum Operating Temperature | Minimum Operating Temperature | Maximum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
27SC2520K062B | Black | Nylon 6/6 | 0.375 in | 0.093 in | UL94 V-2 | 1/4-20 | UL E70062 | 0.625 in | - | - | - | - | - | |
27SC2520K075 | Natural | Nylon | 0.375 | 0.093 | UL94 V-2 | - | UL E70062 | 0.750 | 5.2 mm | 0.843 in | 85 | -40 | 19.1 mm | |
27SC2520K050 | Natural | Nylon | 0.375 | 0.093 | UL94 V-2 | - | UL E70062 | 0.500 | 5.2 mm | 0.593 in | 85 | -40 | 12.7 mm | |
27SC2520K037 | Natural | Nylon | 0.375 | 0.093 | UL94 V-2 | - | UL E70062 | 0.375 | 5.2 mm | 0.468 in | 85 | -40 | 23.6 mm | |
27SC2520K100 | Natural | Nylon | 0.375 | 0.093 | UL94 V-2 | - | UL E70062 | 1.000 | 5.2 mm | 1.093 in | 85 | -40 | 25.4 mm | |
27SC2520K062 | Natural | Nylon | 0.375 | 0.093 | UL94 V-2 | - | UL E70062 | 0.625 | 5.2 mm | 0.718 in | 85 | -40 | 15.9 mm | |
27SC2520K037B | Black | Nylon 6/6 | 0.375 in | 0.093 in | UL94 V-2 | 1/4-20 | UL E70062 | 0.375 in | - | - | - | - | - | |
27SC2520K100B | Black | Nylon 6/6 | 0.375 in | 0.093 in | UL94 V-2 | 1/4-20 | UL E70062 | 1.000 in | - | - | - | - | - | |
27SC2520K075B | Black | Nylon 6/6 | 0.375 in | 0.093 in | UL94 V-2 | 1/4-20 | UL E70062 | 0.750 in | - | - | - | - | - |
Per page:
1-10 of 10
1–5 of 10 variants
Per page:
27SC2520K062B
Color
Black
Material
Nylon 6/6
Head Diameter
0.375 in
Head Height
0.093 in
27SC2520K075
Material Flammability Standard
UL94 V-2
Color
Natural
Maximum Hole Diameter
5.2 mm
Head Height
0.093
27SC2520K050
Material Flammability Standard
UL94 V-2
Color
Natural
Maximum Hole Diameter
5.2 mm
Head Height
0.093
27SC2520K037
Material Flammability Standard
UL94 V-2
Color
Natural
Maximum Hole Diameter
5.2 mm
Head Height
0.093
Per page:
1–5 of 11
