SR01WF - Phillips Fillister Head Screw
Showing 1-10 of 149
Per page:1-10 of 149

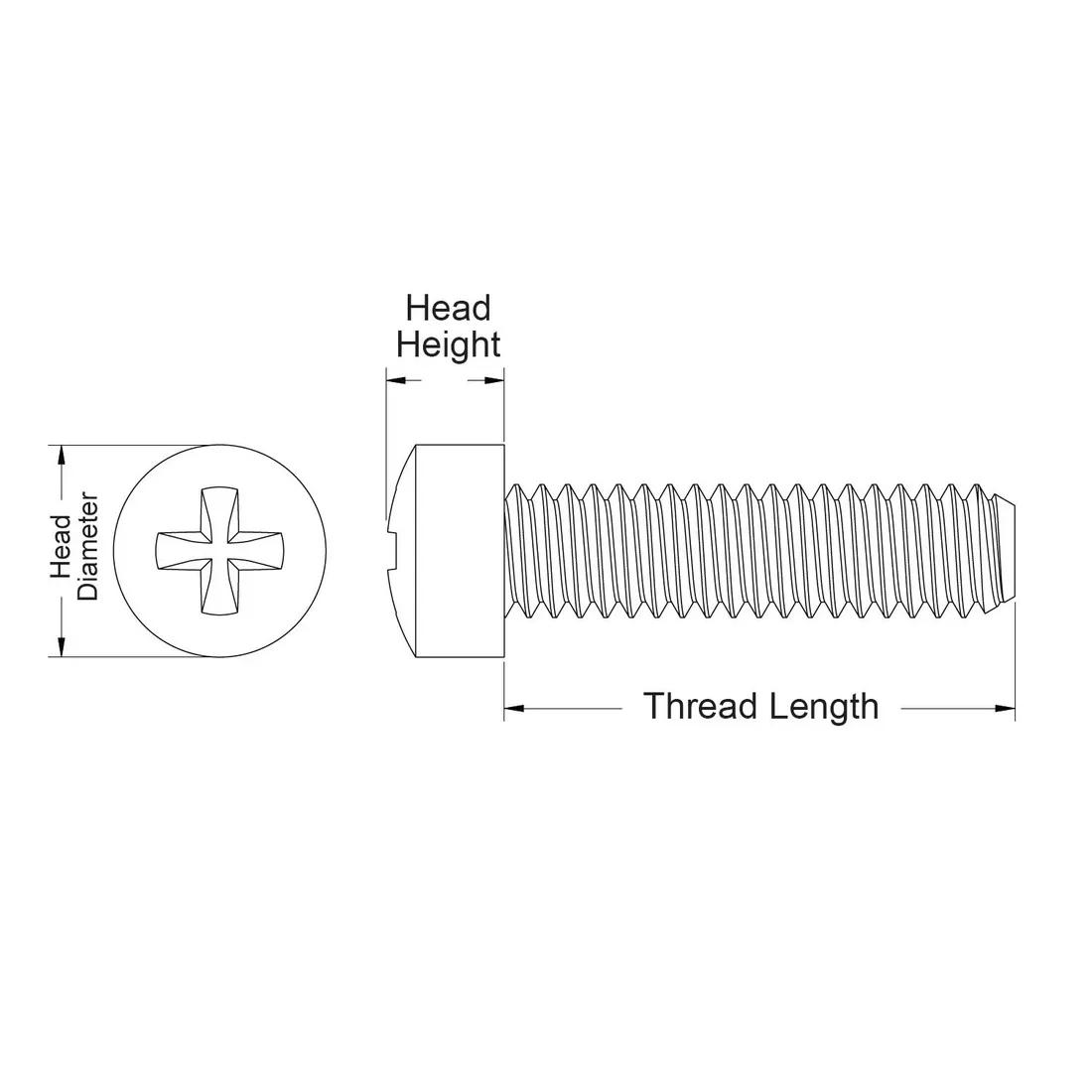

Item Code | Material Flammability Standard | Color | Head Diameter | Head Height | Thread Length | Thread Size | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|
010440WF031B | UL94 V-2 | Black | 0.183 in | 0.107 in | 0.313 in | #4-40 | Nylon 6/6 | |
010440WF014B | UL94 V-2 | Black | 0.183 in | 0.107 in | 0.141 in | #4-40 | Nylon 6/6 | |
010440WF009B | UL94 V-2 | Black | 0.183 in | 0.107 in | 0.094 in | #4-40 | Nylon 6/6 | |
010440WF012B | UL94 V-2 | Black | 0.183 in | 0.107 in | 0.125 in | #4-40 | Nylon 6/6 | |
010440WF025B | UL94 V-2 | Black | 0.183 in | 0.107 in | 0.250 in | #4-40 | Nylon 6/6 | |
010440WF028B | UL94 V-2 | Black | 0.183 in | 0.107 in | 0.281 in | #4-40 | Nylon 6/6 | |
010440WF050B | UL94 V-2 | Black | 0.183 in | 0.107 in | 0.500 in | #4-40 | Nylon 6/6 | |
010440WF062B | UL94 V-2 | Black | 0.183 in | 0.107 in | 0.625 in | #4-40 | Nylon 6/6 | |
010440WF043B | UL94 V-2 | Black | 0.183 in | 0.107 in | 0.438 in | #4-40 | Nylon 6/6 |
Per page:
1-10 of 149
1–5 of 149 variants
Per page:
010440WF031B
Material Flammability Standard
UL94 V-2
Color
Black
Head Diameter
0.183 in
Head Height
0.107 in
010440WF014B
Material Flammability Standard
UL94 V-2
Color
Black
Head Diameter
0.183 in
Head Height
0.107 in
010440WF009B
Material Flammability Standard
UL94 V-2
Color
Black
Head Diameter
0.183 in
Head Height
0.107 in
010440WF012B
Material Flammability Standard
UL94 V-2
Color
Black
Head Diameter
0.183 in
Head Height
0.107 in
Per page:
1–5 of 150
