SR01H - Hex Unslotted Head Screw
Showing 1-10 of 149
Per page:1-10 of 149

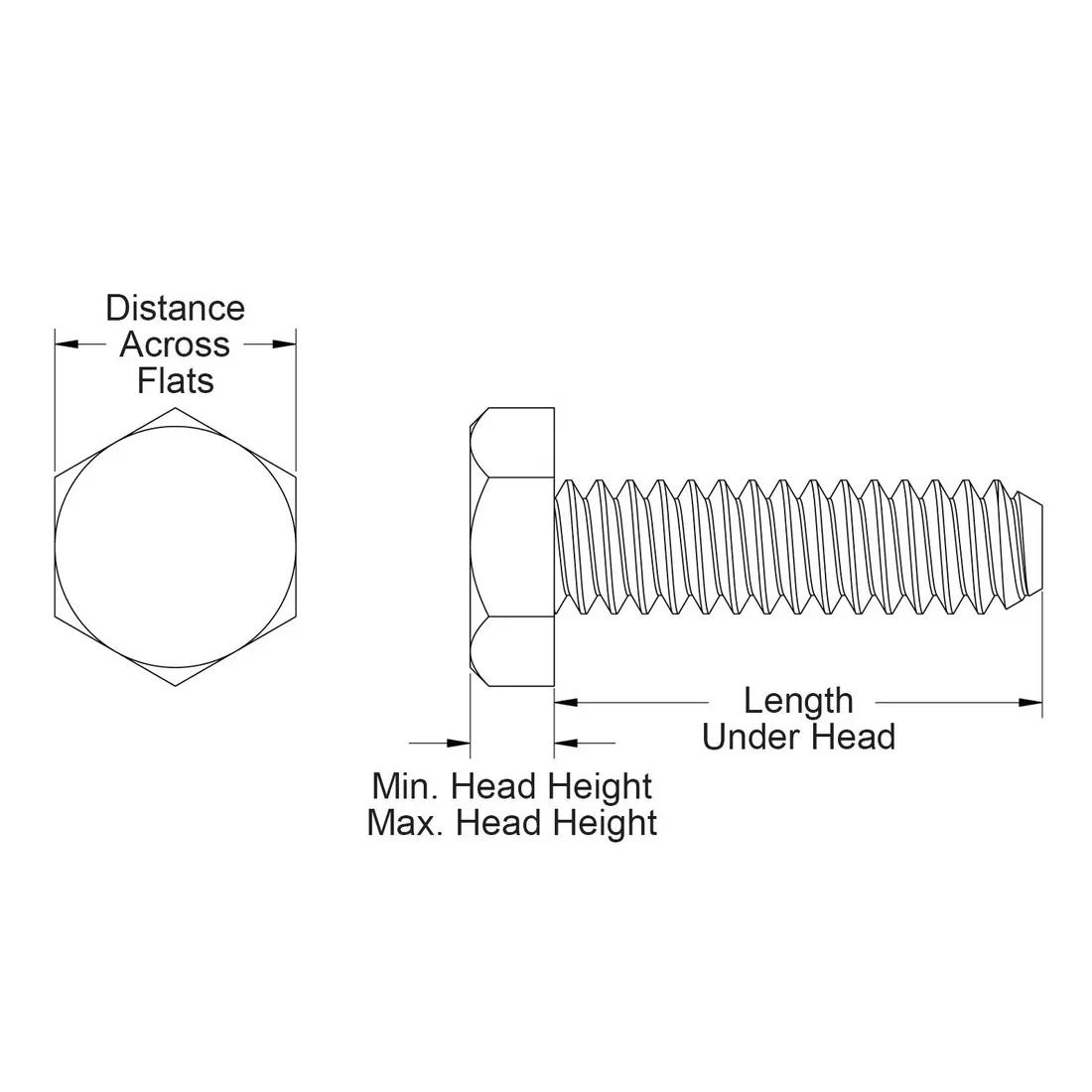

Item Code | Material Flammability Standard | Color | Length Under Head | Distance Across Flats | Thread Length | Style | Minimum Head Height | Maximum Head Height | Thread Size | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
010080H018B | UL94 V-2 | Black | 0.188 in | 0.125 in | 0.188 in | Hexagonal | 0.040 in | 0.048 in | #0-80 | Nylon 6/6 | |
010080H012B | UL94 V-2 | Black | 0.125 in | 0.125 in | 0.125 in | Hexagonal | 0.040 in | 0.048 in | #0-80 | Nylon 6/6 | |
010256H012B | UL94 V-2 | Black | 0.125 in | 0.125 in | 0.125 in | Hexagonal | 0.040 in | 0.050 in | #2-56 | Nylon 6/6 | |
010256H009B | UL94 V-2 | Black | 0.094 in | 0.125 in | 0.094 in | Hexagonal | 0.040 in | 0.050 in | #2-56 | Nylon 6/6 | |
010832H075B | UL94 V-2 | Black | 0.750 in | 0.250 in | 0.750 in | Hexagonal | 0.096 in | 0.110 in | #8-32 | Nylon 6/6 | |
010256H015B | UL94 V-2 | Black | 0.156 in | 0.125 in | 0.156 in | Hexagonal | 0.040 in | 0.050 in | #2-56 | Nylon 6/6 | |
010256H050B | UL94 V-2 | Black | 0.500 in | 0.125 in | 0.500 in | Hexagonal | 0.040 in | 0.050 in | #2-56 | Nylon 6/6 | |
010256H018B | UL94 V-2 | Black | 0.188 in | 0.125 in | 0.188 in | Hexagonal | 0.040 in | 0.050 in | #2-56 | Nylon 6/6 | |
010080H025B | UL94 V-2 | Black | 0.250 in | 0.125 in | 0.250 in | Hexagonal | 0.040 in | 0.048 in | #0-80 | Nylon 6/6 |
Per page:
1-10 of 149
1–5 of 149 variants
Per page:
010080H018B
Material Flammability Standard
UL94 V-2
Color
Black
Length Under Head
0.188 in
Distance Across Flats
0.125 in
010080H012B
Material Flammability Standard
UL94 V-2
Color
Black
Length Under Head
0.125 in
Distance Across Flats
0.125 in
010256H012B
Material Flammability Standard
UL94 V-2
Color
Black
Length Under Head
0.125 in
Distance Across Flats
0.125 in
010256H009B
Material Flammability Standard
UL94 V-2
Color
Black
Length Under Head
0.094 in
Distance Across Flats
0.125 in
Per page:
1–5 of 150
