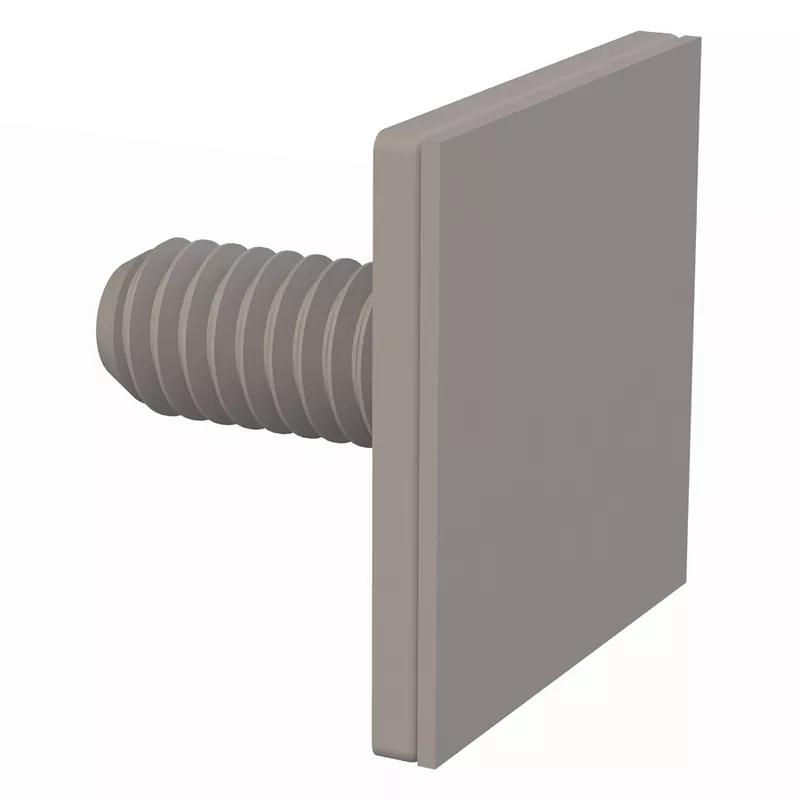

SR01ABTS - Adhesive Mount Threaded Stud
Showing 1-8 of 8
Per page:1-8 of 8

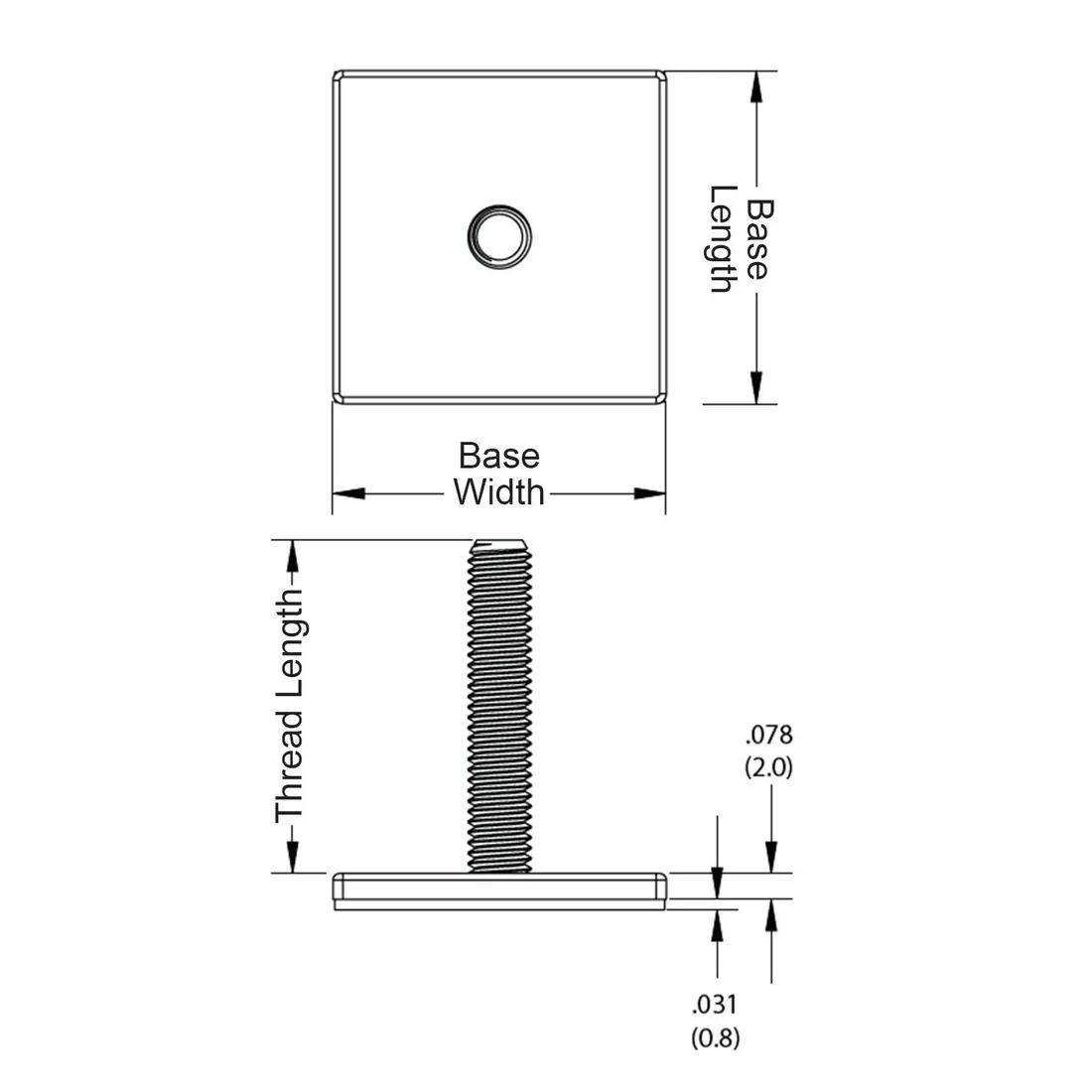

Item Code | Color | Overall Length | Base Width | Thread Length | Base Length | Tape Material | Material Flammability Standard | Mounting Method | Thread Size | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
012520ABTS050 | Natural | 0.578 in | 1.000 in | 0.500 in | 1.000 in | Very High Bond | UL94 V-2 | Adhesive | 1/4-20 | Nylon 6/6 | |
013118ABTS050 | Natural | 0.578 in | 1.000 in | 0.500 in | 1.000 in | Very High Bond | UL94 V-2 | Adhesive | 5/16-18 | Nylon 6/6 | |
012520ABTS100 | Natural | 1.078 in | 1.000 in | 1.000 in | 1.000 in | Very High Bond | UL94 V-2 | Adhesive | 1/4-20 | Nylon 6/6 | |
013118ABTS075 | Natural | 0.828 in | 1.000 in | 0.750 in | 1.000 in | Very High Bond | UL94 V-2 | Adhesive | 5/16-18 | Nylon 6/6 | |
012520ABTS075 | Natural | 0.828 in | 1.000 in | 0.750 in | 1.000 in | Very High Bond | UL94 V-2 | Adhesive | 1/4-20 | Nylon 6/6 | |
011032ABTS075 | Natural | 0.828 in | 1.000 in | 0.750 in | 1.000 in | Very High Bond | UL94 V-2 | Adhesive | #10-32 | Nylon 6/6 | |
013118ABTS100 | Natural | 1.078 in | 1.000 in | 1.000 in | 1.000 in | Very High Bond | UL94 V-2 | Adhesive | 5/16-18 | Nylon 6/6 | |
011032ABTS100 | Natural | 1.078 in | 1.000 in | 1.000 in | 1.000 in | Very High Bond | UL94 V-2 | Adhesive | #10-32 | Nylon 6/6 |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
012520ABTS050
Color
Natural
Overall Length
0.578 in
Base Width
1.000 in
Thread Length
0.500 in
013118ABTS050
Color
Natural
Overall Length
0.578 in
Base Width
1.000 in
Thread Length
0.500 in
012520ABTS100
Color
Natural
Overall Length
1.078 in
Base Width
1.000 in
Thread Length
1.000 in
013118ABTS075
Color
Natural
Overall Length
0.828 in
Base Width
1.000 in
Thread Length
0.750 in
Per page:
1–5 of 9
