SR07LN - Lock Nuts
Showing 1-10 of 18
Per page:1-10 of 18

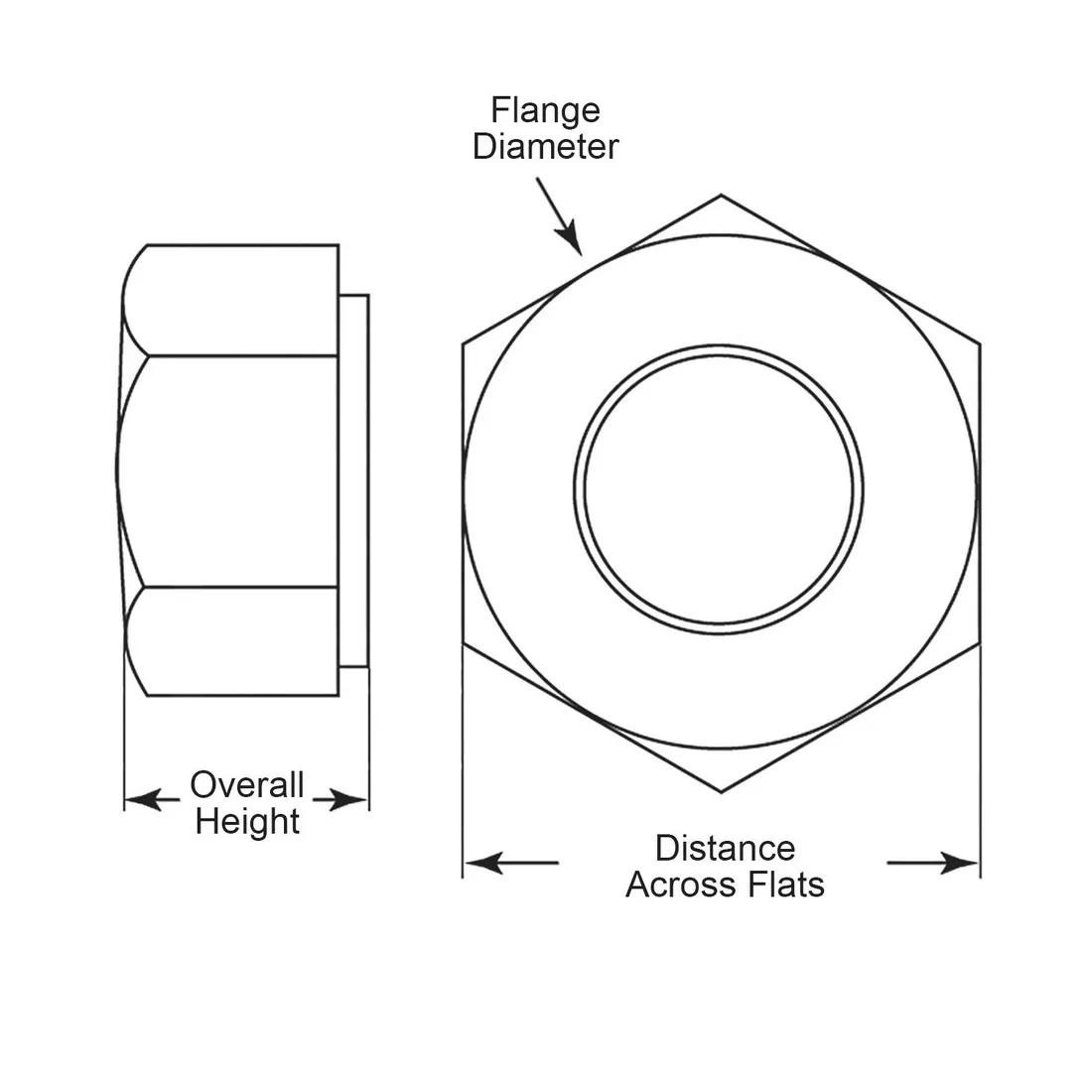

Item Code | Material Flammability Standard | Color | Flange Diameter | Distance Across Flats | Nut Form | Overall Height | Thread Size | Material | Tolerance | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
0700832LNB | UL94 V-2 | Black | 0.385 in | 0.335 in | Rebordeado | 0.230 in | #8-32 | Nylon 6/6 | - | |
0700632LNB | UL94 V-2 | Black | 0.350 in | 0.305 in | Rebordeado | 0.200 in | #6-32 | Nylon 6/6 | - | |
0700440LNB | UL94 V-2 | Black | 0.285 in | 0.250 in | Rebordeado | 0.180 in | #4-40 | Nylon 6/6 | - | |
0700256LNB | UL94 V-2 | Black | 0.205 in | 0.180 in | Rebordeado | 0.140 in | #2-56 | Nylon 6/6 | - | |
0725020LNB | UL94 V-2 | Black | 0.510 in | 0.425 in | Rebordeado | 0.275 in | 1/4-20 | Nylon 6/6 | - | |
0701024LNB | UL94 V-2 | Black | 0.425 in | 0.365 in | Rebordeado | 0.250 in | #10-24 | Nylon 6/6 | - | |
0725028LNB | UL94 V-2 | Black | 0.510 in | 0.425 in | Rebordeado | 0.275 in | 1/4-28 | Nylon 6/6 | - | |
0701032LNB | UL94 V-2 | Black | 0.425 in | 0.365 in | Rebordeado | 0.250 in | #10-32 | Nylon 6/6 | - | |
07M060100LNB | UL94 V-2 | Black | 0.429 in | 10.9 mm | Rebordeado | 6.7 mm | M6 x 1.0 | Nylon 6/6 | - |
Per page:
1-10 of 18
1–5 of 18 variants
Per page:
0700832LNB
Material Flammability Standard
UL94 V-2
Color
Black
Flange Diameter
0.385 in
Distance Across Flats
0.335 in
0700632LNB
Material Flammability Standard
UL94 V-2
Color
Black
Flange Diameter
0.350 in
Distance Across Flats
0.305 in
0700440LNB
Material Flammability Standard
UL94 V-2
Color
Black
Flange Diameter
0.285 in
Distance Across Flats
0.250 in
0700256LNB
Material Flammability Standard
UL94 V-2
Color
Black
Flange Diameter
0.205 in
Distance Across Flats
0.180 in
Per page:
1–5 of 19
