SR06WNA - Wing Nuts
Showing 1-8 of 8
Per page:1-8 of 8

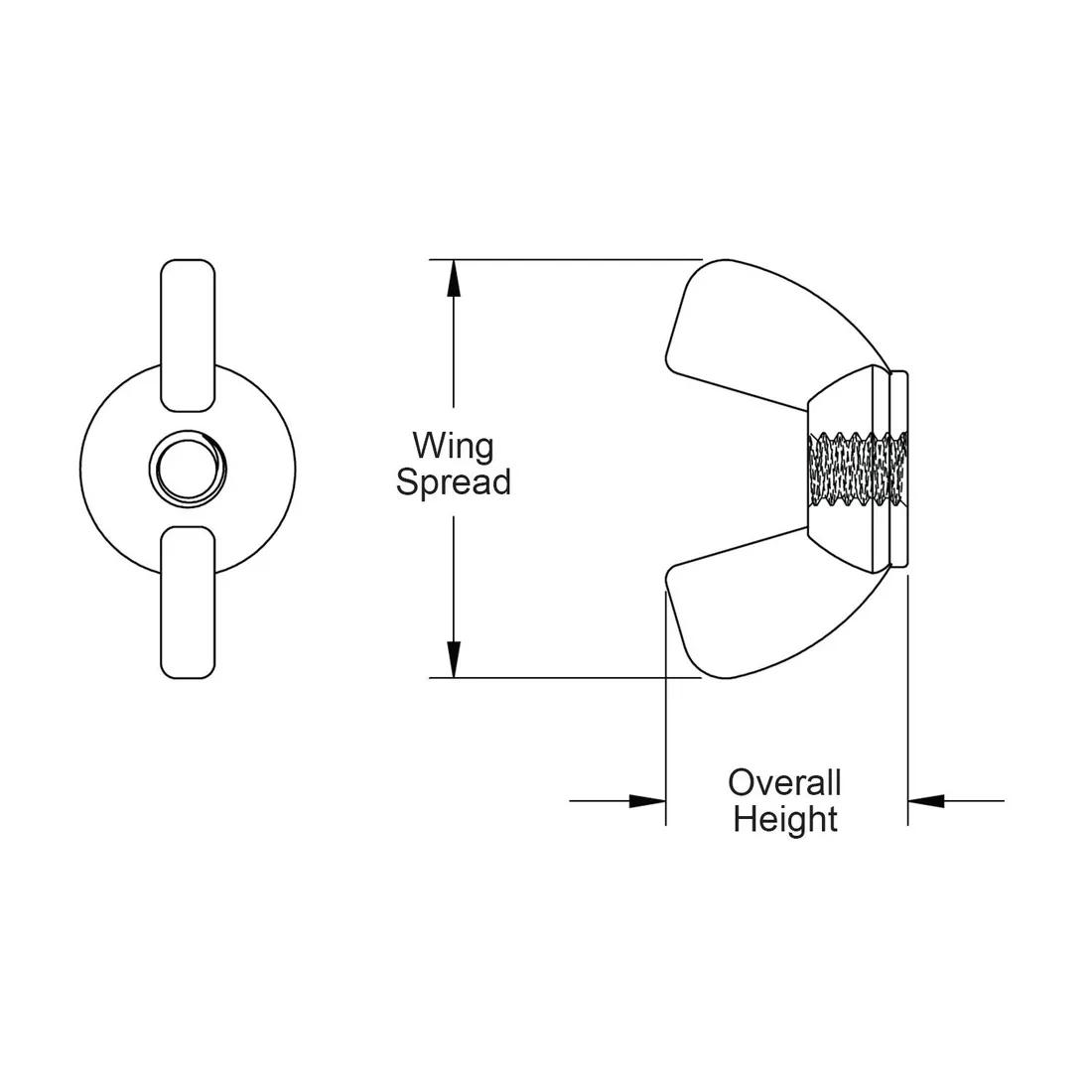

Item Code | Material Flammability Standard | Color | Wing Spread | Overall Height | Thread Size | Material | Base Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|
0625020WNAB | UL94 V-2 | Black | 1.090 in | 0.630 in | 1/4-20 | Nylon 6/6 | - | |
0601032WNAB | UL94 V-2 | Black | 1.090 in | 0.630 in | #10-32 | Nylon 6/6 | - | |
0601024WNAB | UL94 V-2 | Black | 1.090 in | 0.630 in | #10-24 | Nylon 6/6 | - | |
0625028WNA | UL94 V-2 | Natural | 1.090 in | 0.630 in | 1/4-28 | Nylon 6/6 | 0.560 in | |
0601024WNA | UL94 V-2 | Natural | 1.090 in | 0.630 in | #10-24 | Nylon 6/6 | 0.560 in | |
0601032WNA | UL94 V-2 | Natural | 1.090 in | 0.630 in | #10-32 | Nylon 6/6 | 0.560 in | |
0625020WNA | UL94 V-2 | Natural | 1.090 in | 0.630 in | 1/4-20 | Nylon 6/6 | 0.560 in | |
0625028WNAB | UL94 V-2 | Black | 1.090 in | 0.630 in | 1/4-28 | Nylon 6/6 | - |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
0625020WNAB
Material Flammability Standard
UL94 V-2
Color
Black
Wing Spread
1.090 in
Overall Height
0.630 in
0601032WNAB
Material Flammability Standard
UL94 V-2
Color
Black
Wing Spread
1.090 in
Overall Height
0.630 in
0601024WNAB
Material Flammability Standard
UL94 V-2
Color
Black
Wing Spread
1.090 in
Overall Height
0.630 in
0625028WNA
Material Flammability Standard
UL94 V-2
Color
Natural
Wing Spread
1.090 in
Base Diameter
0.560 in
Per page:
1–5 of 9
