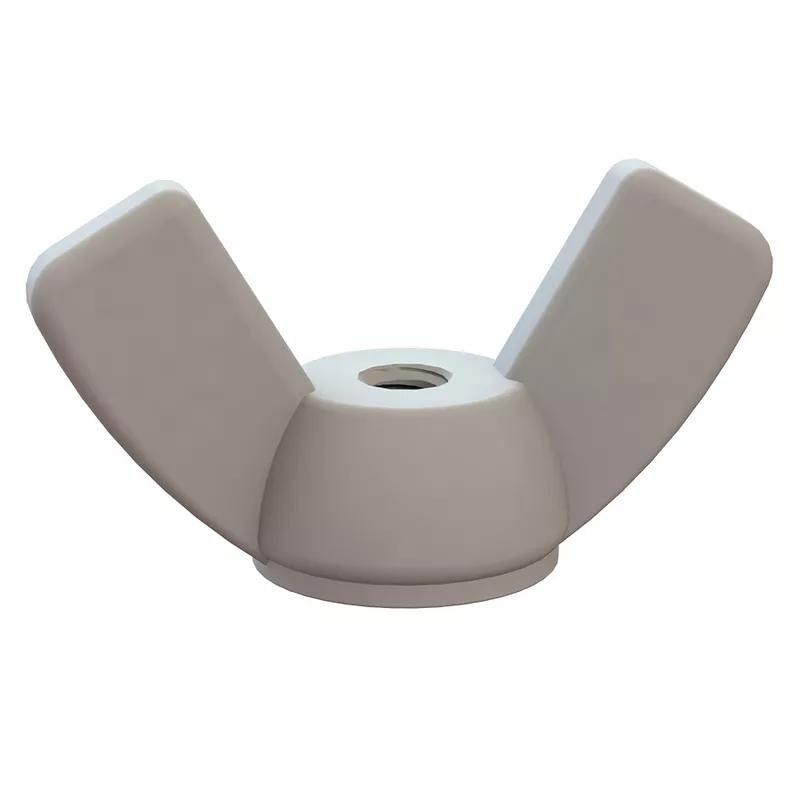

SR06WN - Series Wing Nuts
Showing 1-10 of 38
Per page:1-10 of 38

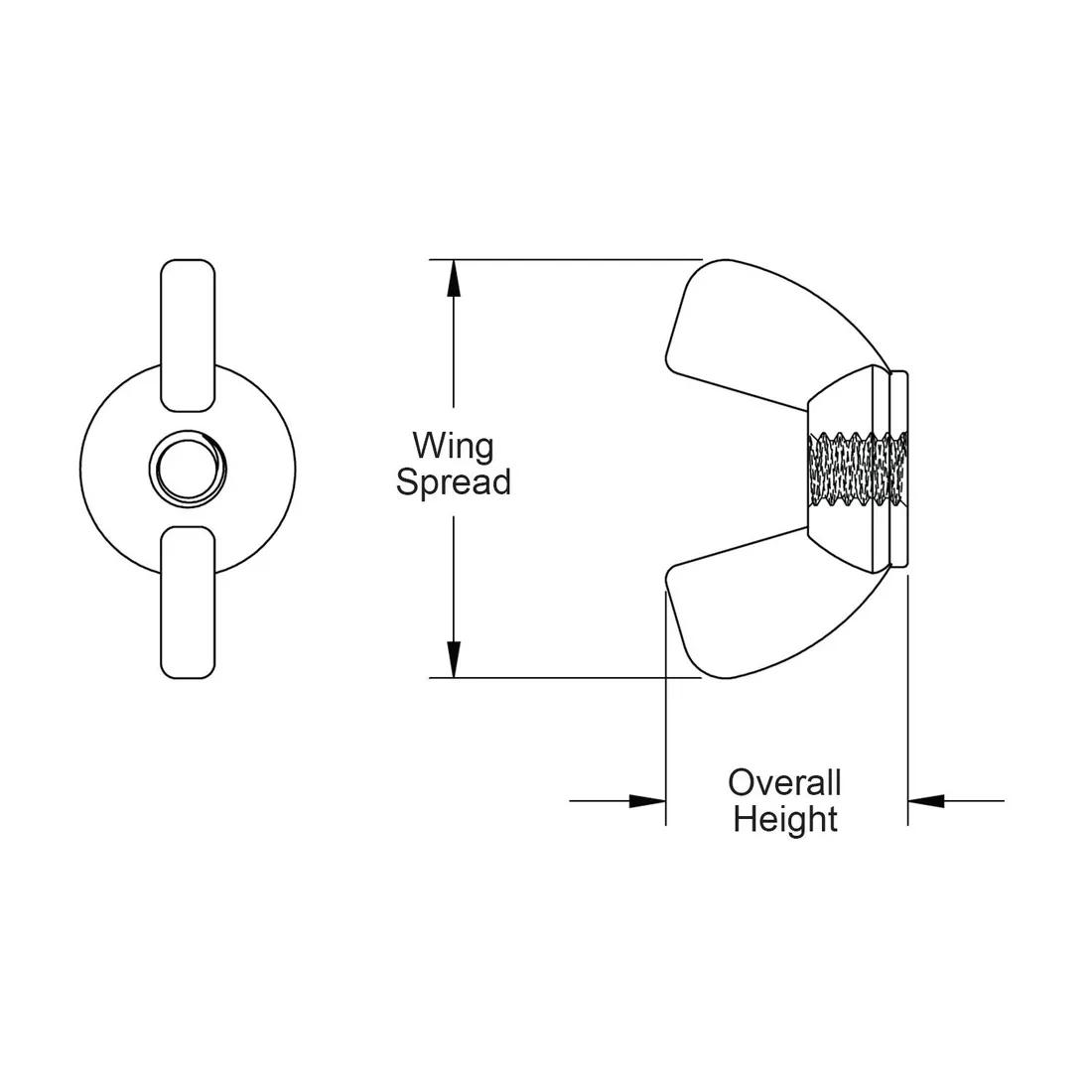

Item Code | Material Flammability Standard | Color | Wing Spread | Overall Height | Thread Size | Material | Base Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|
06M050080WN | UL94 V-2 | Natural | 22.8 mm | 12.2 mm | M5 x 0.8 | Nylon 6/6 | - | |
06M080125WNB | UL94 V-2 | Black | 34.8 mm | 18.3 mm | M8 x 1.25 | Nylon 6/6 | - | |
06M080125WN | UL94 V-2 | Natural | 34.8 mm | 18.3 mm | M8 x 1.25 | Nylon 6/6 | - | |
06M120175WN | UL94 V-2 | Natural | 14.15 mm | 22.56 mm | M12 x 1.75 | Nylon 6/6 | - | |
06M060100WN | UL94 V-2 | Natural | 27.7 mm | 16.0 mm | M6 x 1.0 | Nylon 6/6 | - | |
06M040070WN | UL94 V-2 | Natural | 22.8 mm | 12.2 mm | M4 x 0.7 | Nylon 6/6 | - | |
06M100150WN | UL94 V-2 | Natural | 34.8 mm | 18.3 mm | M10 x 1.5 | Nylon 6/6 | - | |
06M100150WNB | UL94 V-2 | Black | 34.8 mm | 18.3 mm | M10 x 1.5 | Nylon 6/6 | - | |
0643714WNB | UL94 V-2 | Black | 1.760 in | 0.900 in | 7/16-14 | Nylon 6/6 | - |
Per page:
1-10 of 38
1–5 of 38 variants
Per page:
06M050080WN
Material Flammability Standard
UL94 V-2
Color
Natural
Wing Spread
22.8 mm
Overall Height
12.2 mm
06M080125WNB
Material Flammability Standard
UL94 V-2
Color
Black
Wing Spread
34.8 mm
Overall Height
18.3 mm
06M080125WN
Material Flammability Standard
UL94 V-2
Color
Natural
Wing Spread
34.8 mm
Overall Height
18.3 mm
06M120175WN
Material Flammability Standard
UL94 V-2
Color
Natural
Wing Spread
14.15 mm
Overall Height
22.56 mm
Per page:
1–5 of 39
