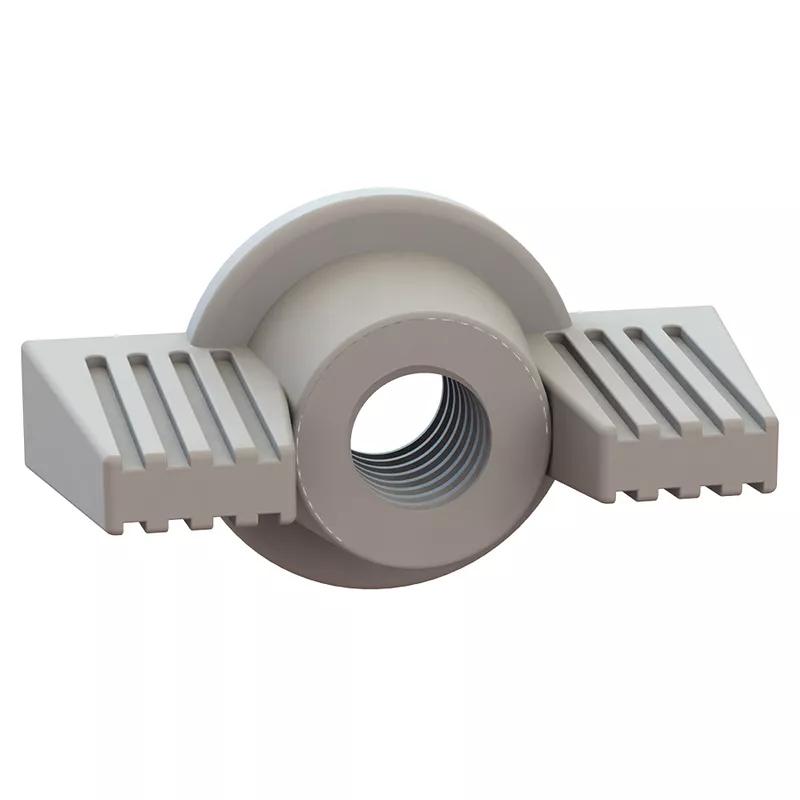

SR06DLWN - Locking Deco Wing Nuts
Showing 1-10 of 17
Per page:1-10 of 17

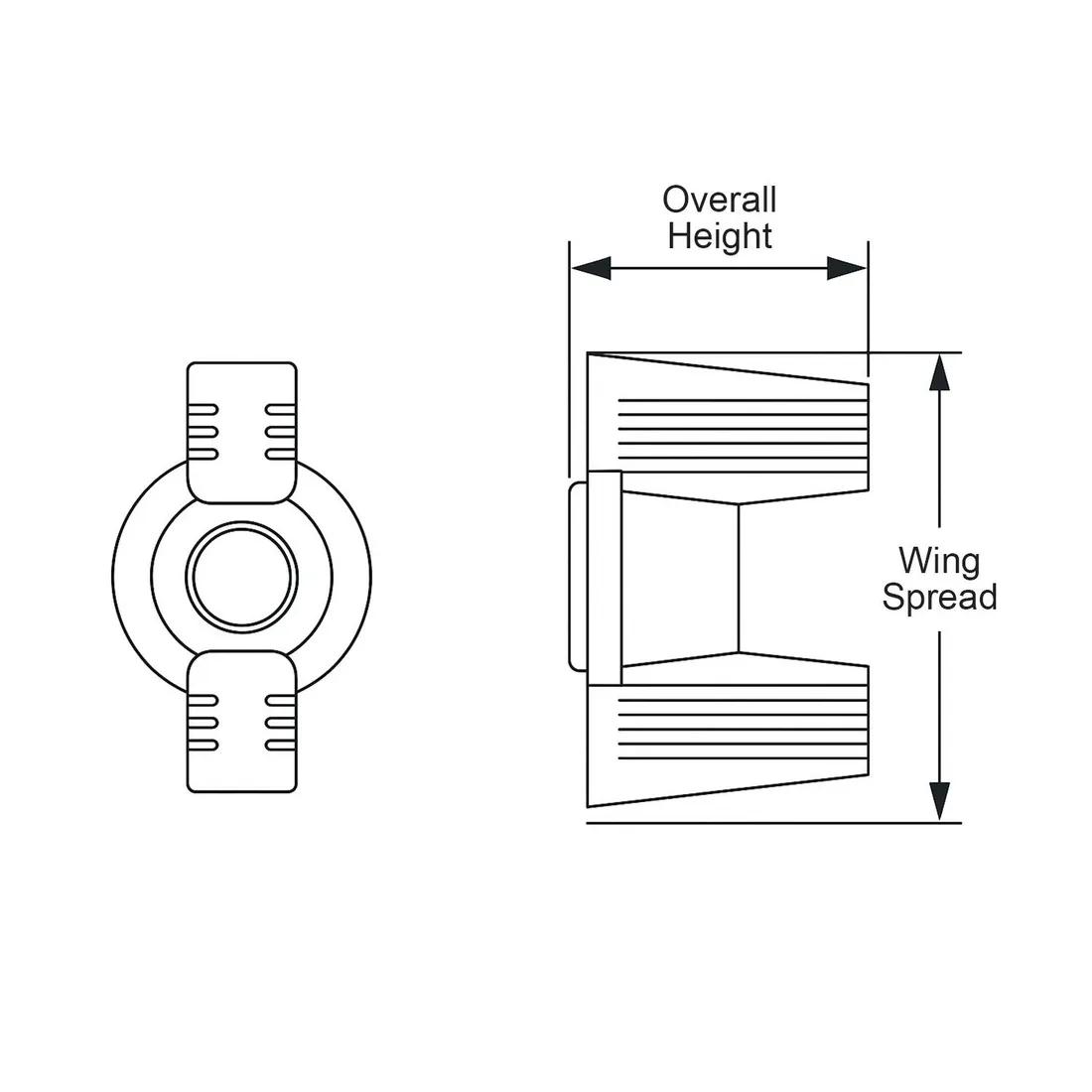

Item Code | Material Flammability Standard | Color | Wing Spread | Overall Height | Thread Size | Material | Base Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|
06M060100DLWNB | UL94 V-2 | Black | 29.7 mm | 13.4 mm | M6 | Nylon 6/6 | - | |
06M060100DLWN | UL94 V-2 | Natural | 29.7 mm | 13.4 mm | M6 | Nylon 6/6 | - | |
06M040070DLWN | UL94 V-2 | Natural | 16.0 mm | 8.0 mm | M4 | Nylon 6/6 | - | |
0601024DLWNB | UL94 V-2 | Black | 0.875 in | 0.438 in | #10-24 | Nylon 6/6 | - | |
0631218DLWNB | UL94 V-2 | Black | 1.563 in | 0.453 in | 5/16-18 | Nylon 6/6 | - | |
0625020DLWNB | UL94 V-2 | Black | 1.172 in | 0.531 in | 1/4-20 | Nylon 6/6 | - | |
0601032DLWNB | UL94 V-2 | Black | 0.875 in | 0.438 in | #10-32 | Nylon 6/6 | - | |
0600832DLWNB | UL94 V-2 | Black | 0.625 in | 0.313 in | #8-32 | Nylon 6/6 | - | |
0600632DLWNB | UL94 V-2 | Black | 0.625 in | 0.313 in | #6-32 | Nylon 6/6 | - |
Per page:
1-10 of 17
1–5 of 17 variants
Per page:
06M060100DLWNB
Material Flammability Standard
UL94 V-2
Color
Black
Wing Spread
29.7 mm
Overall Height
13.4 mm
06M060100DLWN
Material Flammability Standard
UL94 V-2
Color
Natural
Wing Spread
29.7 mm
Overall Height
13.4 mm
06M040070DLWN
Material Flammability Standard
UL94 V-2
Color
Natural
Wing Spread
16.0 mm
Overall Height
8.0 mm
0601024DLWNB
Material Flammability Standard
UL94 V-2
Color
Black
Wing Spread
0.875 in
Overall Height
0.438 in
Per page:
1–5 of 18
