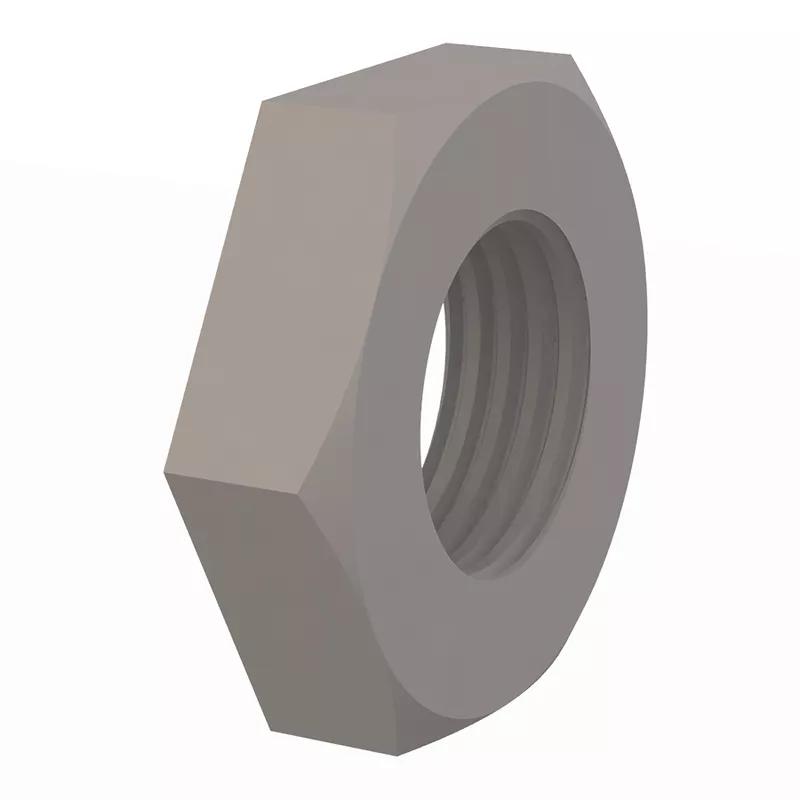

SR04PJN - NPT Hex Jam Nut
Showing 1-10 of 13
Per page:1-10 of 13

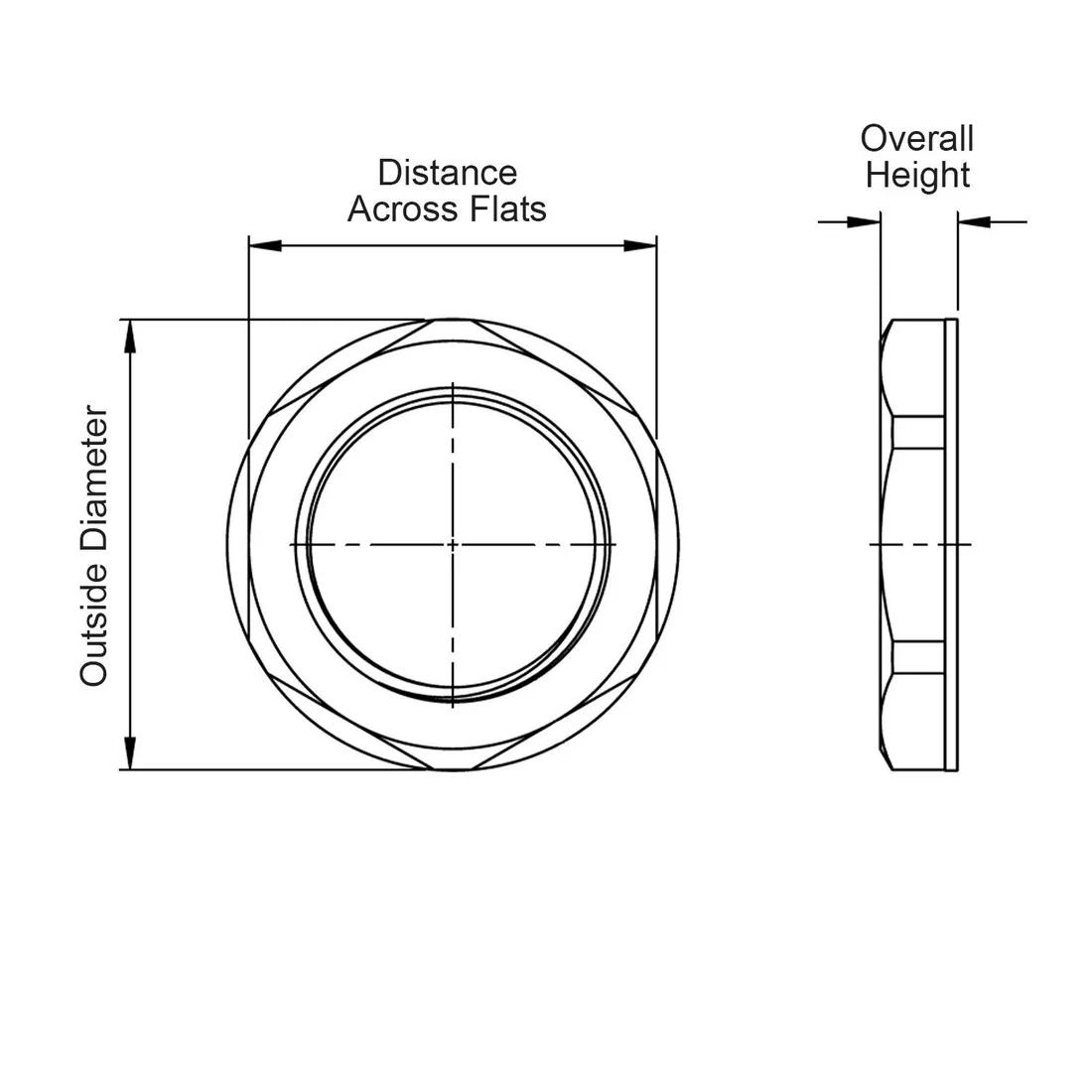

Item Code | Material Flammability Standard | Color | Distance Across Flats | Overall Height | Thread Size | Material | Outside Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|
0437518PJNB | UL94 V-2 | Black | 1.000 in | 0.280 in | 3/8-18 | Nylon 6/6 | - | |
0425018PJNB | UL94 V-2 | Black | 0.740 in | 0.187 in | 1/4-18 | Nylon 6/6 | - | |
0412527PJNB | UL94 V-2 | Black | 0.560 in | 0.110 in | 1/8-27 | Nylon 6/6 | - | |
0475014PJNB | UL94 V-2 | Black | 1.480 in | 0.410 in | 3/4-14 | Nylon 6/6 | - | |
0450014PJNB | UL94 V-2 | Black | 1.250 in | 0.340 in | 1/2-14 | Nylon 6/6 | - | |
0410011PJNB | UL94 V-2 | Black | 1.656 in | 0.313 in | 1-11-1/2 | Nylon 6/6 | - | |
0412511PJN | UL94 V-2 | Natural | 2.125 in | 0.375 in | 1-1/4-11-1/2 | Nylon 6/6 | 2.344 in | |
0410011PJN | UL94 V-2 | Natural | 1.656 in | 0.313 in | 1-11-1/2 | Nylon 6/6 | 1.844 in | |
0412527PJN | UL94 V-2 | Natural | 0.560 in | 0.110 | 1/8-27 | Nylon 6/6 | - |
Per page:
1-10 of 13
1–5 of 13 variants
Per page:
0437518PJNB
Material Flammability Standard
UL94 V-2
Color
Black
Distance Across Flats
1.000 in
Overall Height
0.280 in
0425018PJNB
Material Flammability Standard
UL94 V-2
Color
Black
Distance Across Flats
0.740 in
Overall Height
0.187 in
0412527PJNB
Material Flammability Standard
UL94 V-2
Color
Black
Distance Across Flats
0.560 in
Overall Height
0.110 in
0475014PJNB
Material Flammability Standard
UL94 V-2
Color
Black
Distance Across Flats
1.480 in
Overall Height
0.410 in
Per page:
1–5 of 14
