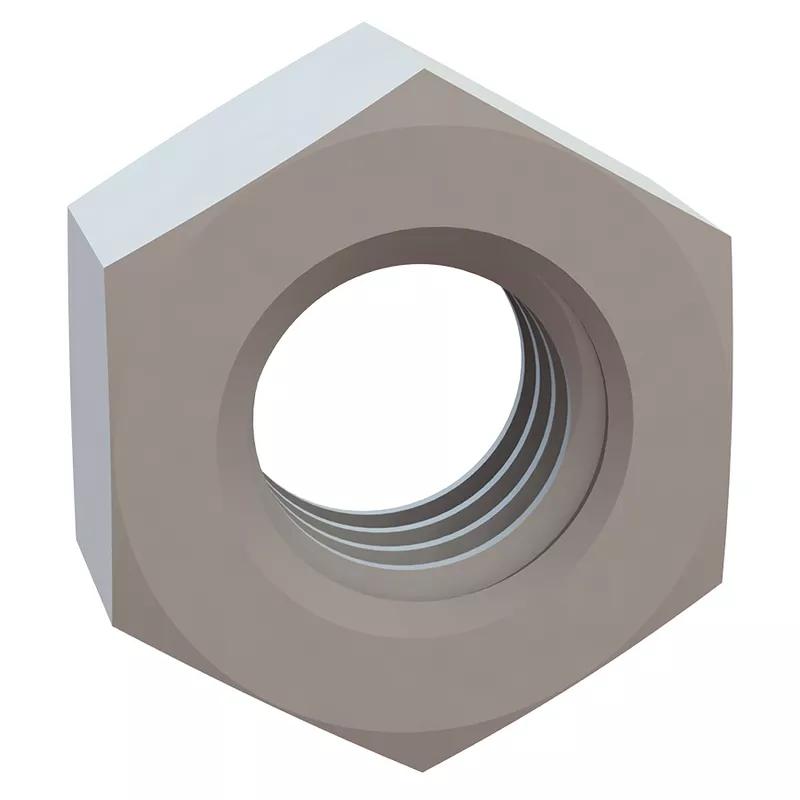

SR04HNDIN34814 - Metric Hex Nut DIN 34814
Showing 1-10 of 11
Per page:1-10 of 11

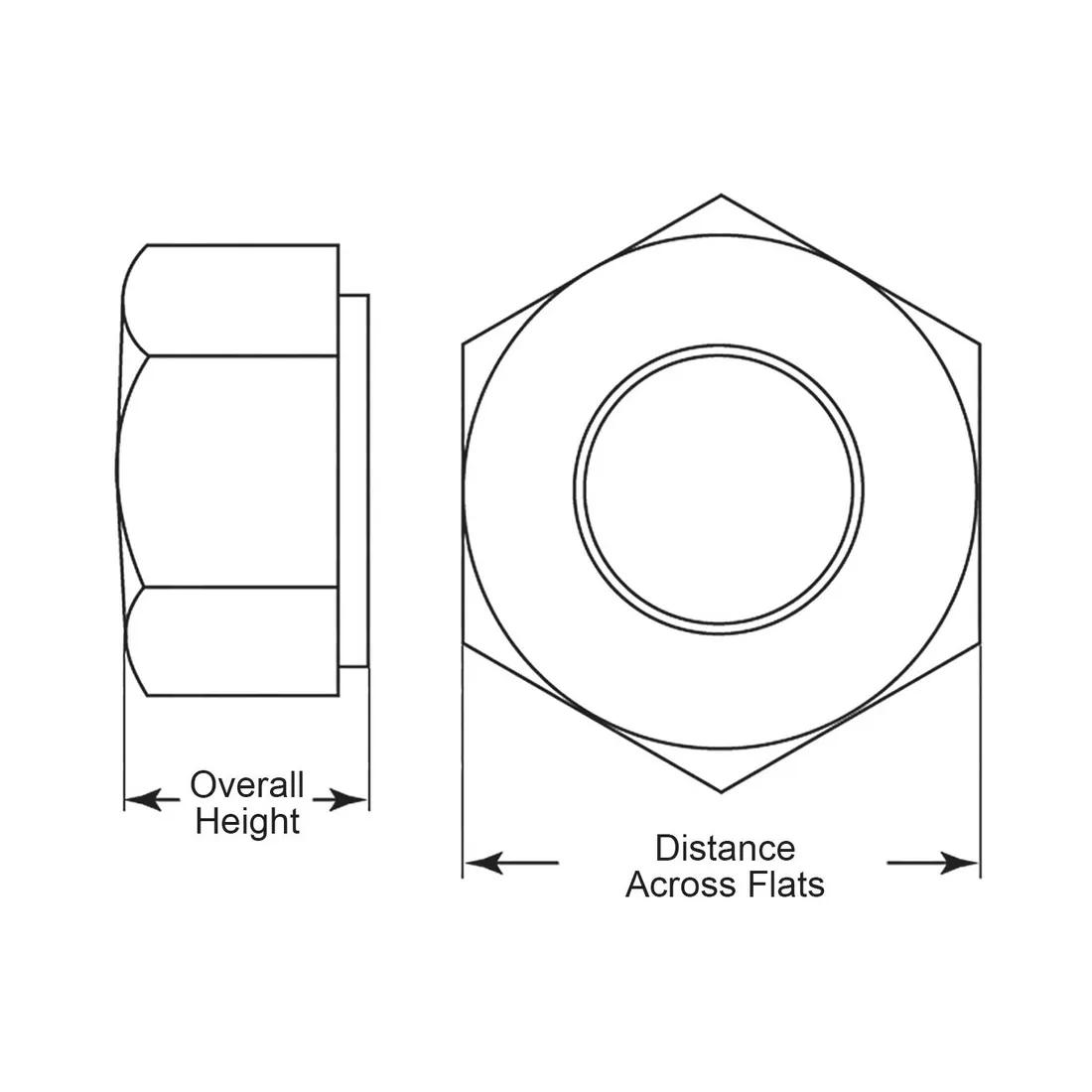

Item Code | Material Flammability Standard | Color | Distance Across Flats | Overall Height | Thread Size | Material | Request Quote |
|---|---|---|---|---|---|---|---|
04M040070HNDIN34814B | UL94 V-2 | Black | 7.0 mm | 3.2 mm | M4 x 0.7 | Nylon 6/6 | |
04M050080HNDIN34814B | UL94 V-2 | Black | 8.0 mm | 4.7 mm | M5 x 0.8 | Nylon 6/6 | |
04M030050HNDIN34814B | UL94 V-2 | Black | 5.5 mm | 2.4 mm | M3 x 0.5 | Nylon 6/6 | |
04M030050HNDIN34814 | UL94 V-2 | Natural | 5.5 mm | 2.4 mm | M3 x 0.5 | Nylon 6/6 | |
04M050080HNDIN34814 | UL94 V-2 | Natural | 8.0 mm | 4.7 mm | M5 x 0.8 | Nylon 6/6 | |
04M060100HNDIN34814 | UL94 V-2 | Natural | 10.0 mm | 5.2 mm | M6 x 1.0 | Nylon 6/6 | |
04M120175HNDIN34814 | UL94 V-2 | Natural | 18.0 mm | 10.8 mm | M12 x 1.75 | Nylon 6/6 | |
04M100150HNDIN34814 | UL94 V-2 | Natural | 16.0 mm | 8.4 mm | M10 x 1.5 | Nylon 6/6 | |
04M080125HNDIN34814 | UL94 V-2 | Natural | 13.0 mm | 6.8 mm | M8 x 1.25 | Nylon 6/6 |
Per page:
1-10 of 11
1–5 of 11 variants
Per page:
04M040070HNDIN34814B
Material Flammability Standard
UL94 V-2
Color
Black
Distance Across Flats
7.0 mm
Overall Height
3.2 mm
04M050080HNDIN34814B
Material Flammability Standard
UL94 V-2
Color
Black
Distance Across Flats
8.0 mm
Overall Height
4.7 mm
04M030050HNDIN34814B
Material Flammability Standard
UL94 V-2
Color
Black
Distance Across Flats
5.5 mm
Overall Height
2.4 mm
04M030050HNDIN34814
Material Flammability Standard
UL94 V-2
Color
Natural
Distance Across Flats
5.5 mm
Overall Height
2.4 mm
Per page:
1–5 of 12
