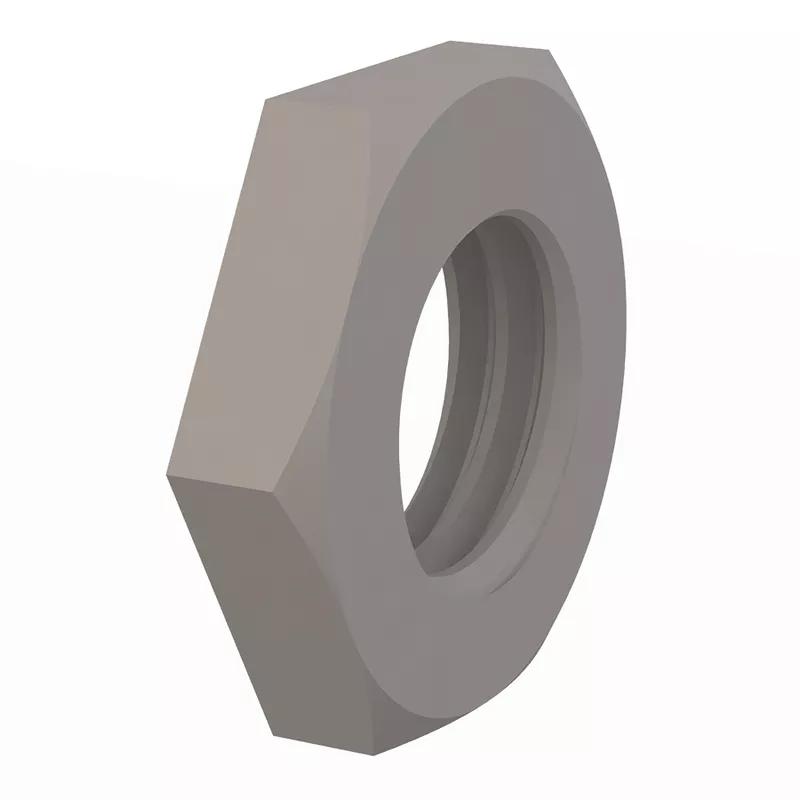

SR04HJN - Hex Jam Nut
Showing 1-10 of 48
Per page:1-10 of 48

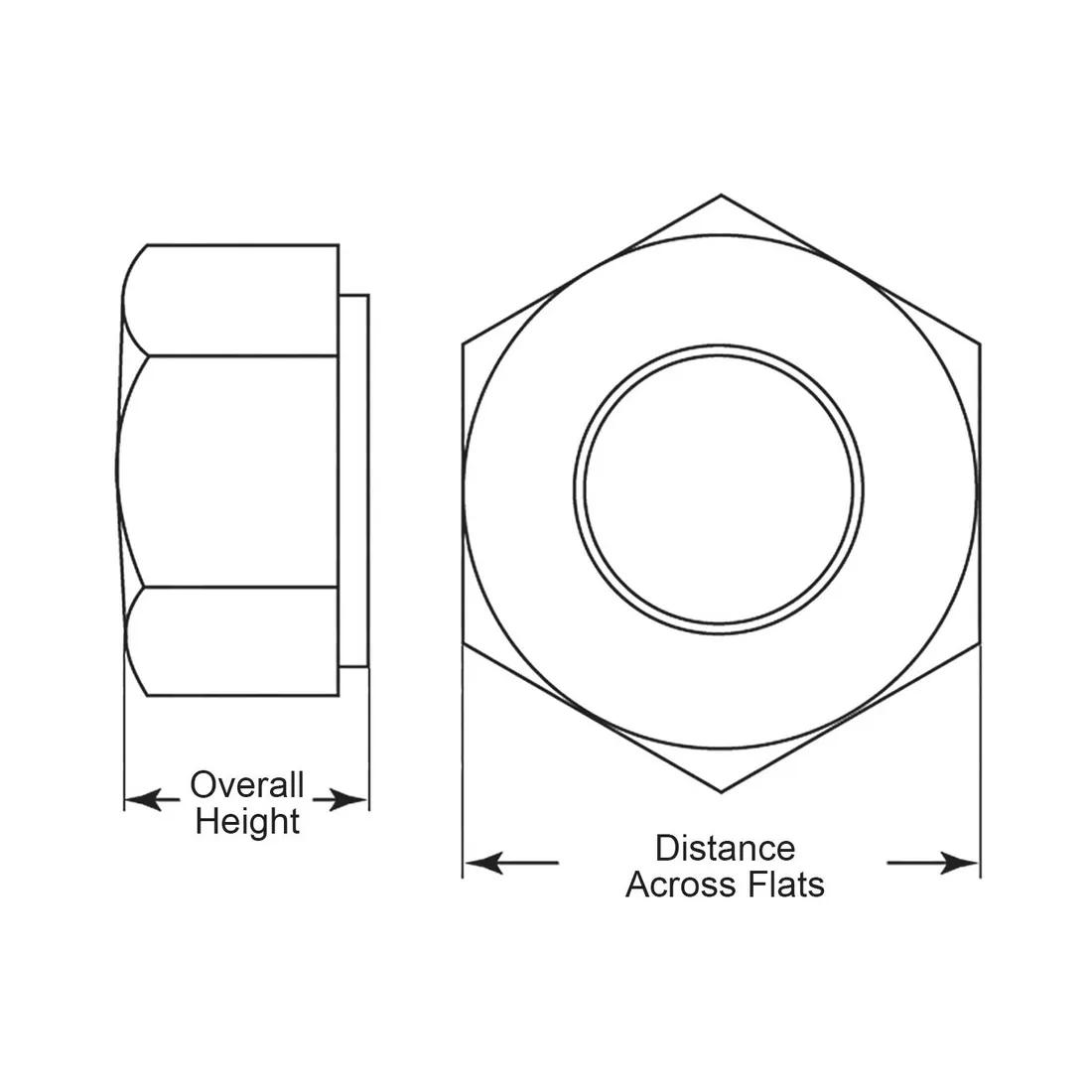

Item Code | Material Flammability Standard | Color | Distance Across Flats | Overall Height | Thread Size | Material | Request Quote |
|---|---|---|---|---|---|---|---|
0431218HJNB | UL94 V-2 | Black | 0.500 in | 0.190 in | 5/16-18 | Nylon 6/6 | |
0437516HJNB | UL94 V-2 | Black | 0.500 in | 0.125 in | 3/8-16 | Nylon 6/6 | |
0425020HJNB | UL94 V-2 | Black | 0.437 in | 0.158 in | 1/4-20 | Nylon 6/6 | |
0456218HJNB | UL94 V-2 | Black | 0.750 in | 0.250 in | 9/16-18 | Nylon 6/6 | |
0431224HJNB | UL94 V-2 | Black | 0.500 in | 0.190 in | 5/16-24 | Nylon 6/6 | |
0462518HJNB | UL94 V-2 | Black | 0.937 in | 0.375 in | 5/8-18 | Nylon 6/6 | |
0450024HJNB | UL94 V-2 | Black | 0.687 in | 0.220 in | 1/2-24 | Nylon 6/6 | |
0437532HJNB | UL94 V-2 | Black | 0.500 in | 0.125 in | 3/8-32 | Nylon 6/6 | |
0410008HJNB | UL94 V-2 | Black | 1.480 in | 0.410 in | #1-8 | Nylon 6/6 |
Per page:
1-10 of 48
1–5 of 48 variants
Per page:
0431218HJNB
Material Flammability Standard
UL94 V-2
Color
Black
Distance Across Flats
0.500 in
Overall Height
0.190 in
0437516HJNB
Material Flammability Standard
UL94 V-2
Color
Black
Distance Across Flats
0.500 in
Overall Height
0.125 in
0425020HJNB
Material Flammability Standard
UL94 V-2
Color
Black
Distance Across Flats
0.437 in
Overall Height
0.158 in
0456218HJNB
Material Flammability Standard
UL94 V-2
Color
Black
Distance Across Flats
0.750 in
Overall Height
0.250 in
Per page:
1–5 of 49
