SR04HFN - Hex Flange Nut
Showing 1-10 of 32
Per page:1-10 of 32

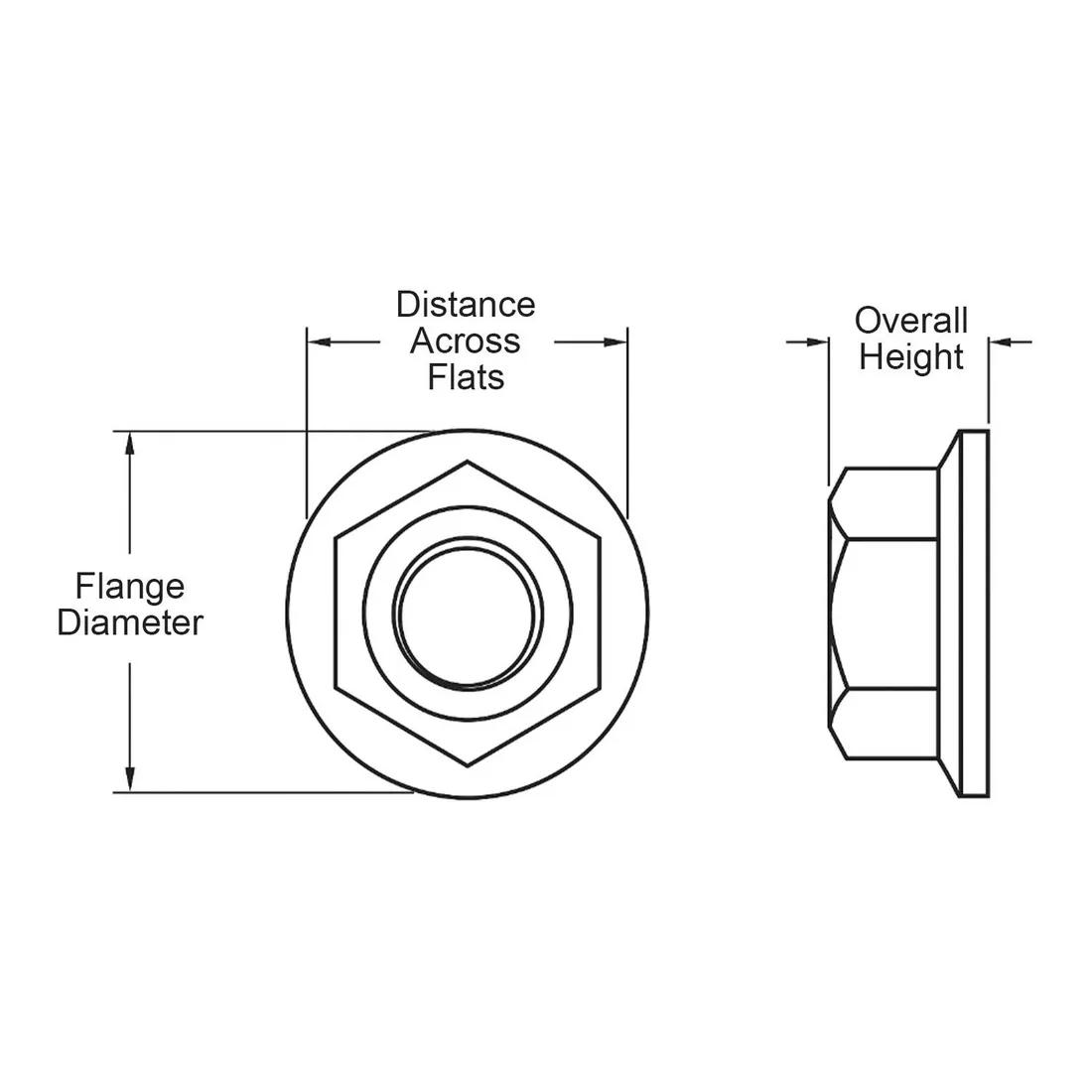

Item Code | Material Flammability Standard | Color | Flange Diameter | Distance Across Flats | Nut Form | Overall Height | Thread Size | Material | Contact Surface | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
04M160150WFHNB | UL94 V-2 | Black | 22.0 mm | 18.9 mm | Rebordeado | 6.7 mm | M16 x 1.5 | Nylon 6/6 | - | |
04M050080WFHNB | UL94 V-2 | Black | 9.8 mm | 7.9 mm | Rebordeado | 5.2 mm | M5 x 0.8 | Nylon 6/6 | - | |
04M160200WFHNB | UL94 V-2 | Black | 39.0 mm | 24.0 mm | Rebordeado | 19.5 mm | M16 x 2.0 | Nylon 6/6 | - | |
04M030050WFHNB | UL94 V-2 | Black | 6.6 mm | 5.5 mm | Rebordeado | 3.1 mm | M3 x 0.5 | Nylon 6/6 | - | |
04M320150WFHNB | UL94 V-2 | Black | 42.0 mm | 36.5 mm | Rebordeado | 9.0 mm | M32 x 1.5 | Nylon 6/6 | - | |
0462511HFNB | UL94 V-2 | Black | 1.265 in | 0.930 in | Rebordeado | 0.557 in | 5/8-11 | Nylon 6/6 | - | |
04M250150WFHNB | UL94 V-2 | Black | 32.0 mm | 27.9 mm | Rebordeado | 9.0 mm | M25 x 1.5 | Nylon 6/6 | - | |
04M060100WFHNB | UL94 V-2 | Black | 13.0 mm | 10.0 mm | Rebordeado | 6.0 mm | M6 x 1.0 | Nylon 6/6 | - | |
04M120175WFHNB | UL94 V-2 | Black | 27.0 mm | 19.0 mm | Rebordeado | 14.5 mm | M12 x 1.75 | Nylon 6/6 | - |
Per page:
1-10 of 32
1–5 of 32 variants
Per page:
04M160150WFHNB
Material Flammability Standard
UL94 V-2
Color
Black
Flange Diameter
22.0 mm
Distance Across Flats
18.9 mm
04M050080WFHNB
Material Flammability Standard
UL94 V-2
Color
Black
Flange Diameter
9.8 mm
Distance Across Flats
7.9 mm
04M160200WFHNB
Material Flammability Standard
UL94 V-2
Color
Black
Flange Diameter
39.0 mm
Distance Across Flats
24.0 mm
04M030050WFHNB
Material Flammability Standard
UL94 V-2
Color
Black
Flange Diameter
6.6 mm
Distance Across Flats
5.5 mm
Per page:
1–5 of 33
