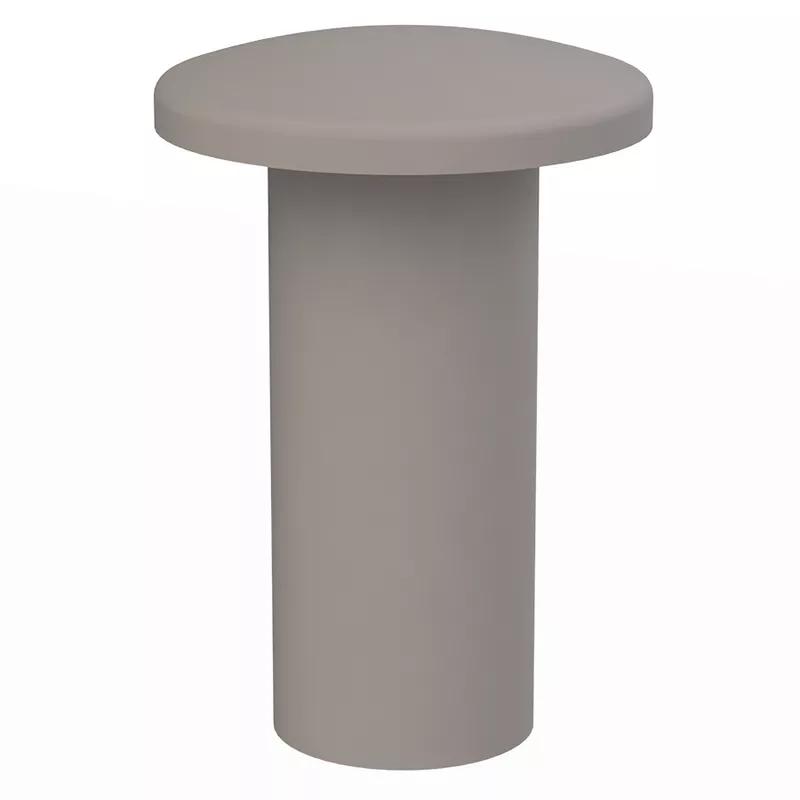

SR27POSTNT - Post and Pin
Showing 1-5 of 5
Per page:1-5 of 5

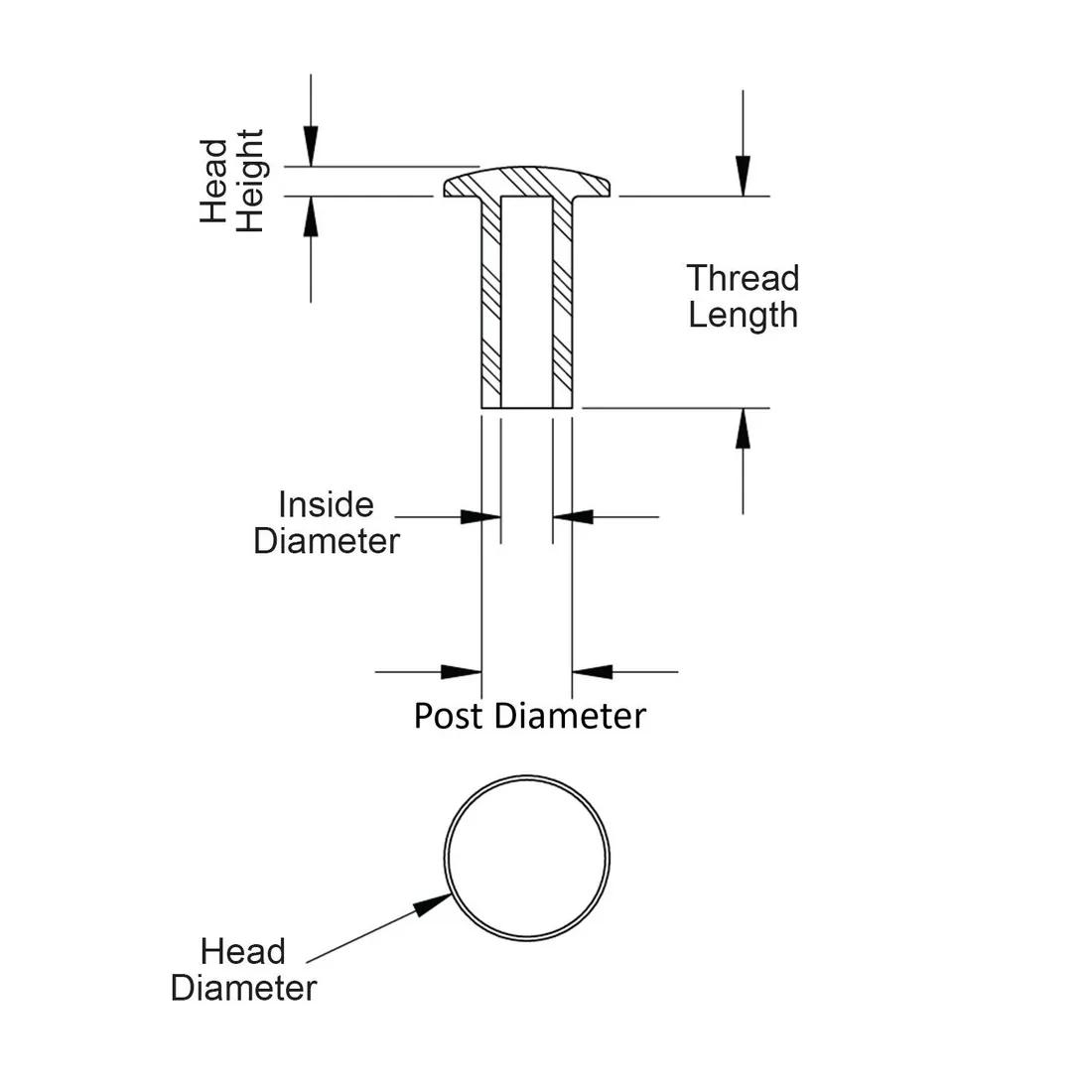

Item Code | Material Flammability Standard | Color | Material | Inside Diameter | Head Diameter | Head Height | Thread Length | Request Quote |
|---|---|---|---|---|---|---|---|---|
27POSTNT0625 | UL94 V-2 | White | PE | 3.1 mm | 9.9 mm | 1.8 mm | 15.9 mm | |
27POSTNT0500 | UL94 V-2 | White | PE | 3.1 mm | 9.9 mm | 1.8 mm | 12.7 mm | |
27POSTNT1250 | UL94 V-2 | White | PE | 3.1 mm | 9.9 mm | 1.8 mm | 31.8 mm | |
27POSTNT1000 | UL94 V-2 | White | PE | 3.1 mm | 9.9 mm | 1.8 mm | 25.4 mm | |
27POSTNT0750 | UL94 V-2 | White | PE | 3.1 mm | 9.9 mm | 1.8 mm | 19.1 mm |
Per page:
1-5 of 5
1–5 of 5 variants
Per page:
27POSTNT0625
Material Flammability Standard
UL94 V-2
Color
White
Material
PE
Inside Diameter
3.1 mm
27POSTNT0500
Material Flammability Standard
UL94 V-2
Color
White
Material
PE
Inside Diameter
3.1 mm
27POSTNT1250
Material Flammability Standard
UL94 V-2
Color
White
Material
PE
Inside Diameter
3.1 mm
27POSTNT1000
Material Flammability Standard
UL94 V-2
Color
White
Material
PE
Inside Diameter
3.1 mm
