SR60SPG - Closed Screw Spacer Grommet Nuts
Showing 1-6 of 6
Per page:1-6 of 6

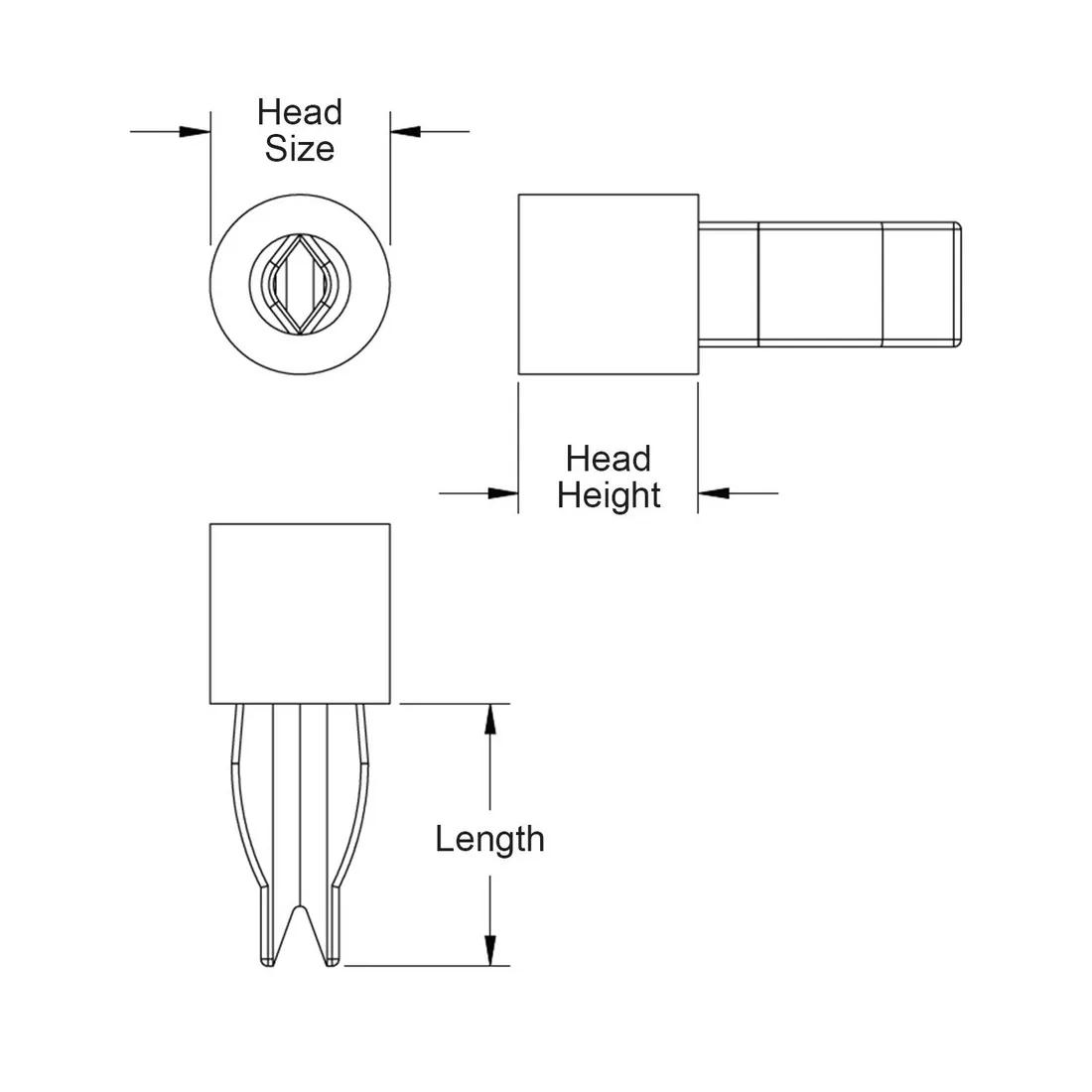

Item Code | Color | Head Length | Spacer Length | Hole Size | Head Height | Maximum Operating Temperature | Material Flammability Standard | Screw Size | Minimum Operating Temperature | Material | Maximum Panel Thickness | Head Diameter | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
60SPG00001 | Natural | 0.375 in | 0.125 in | 6.9 x 7.4 mm | 0.125 | 185 °F | UL94 V-2 | #8;#10 | -40 °F | Nylon 6/6 | 3.6 | 0.375 in | 0.5 | |
60SPG00004 | Natural | 0.375 in | .312 in | 6.9 x 7.4 mm | 0.312 | 185 °F | UL94 V-2 | #8;#10 | -40 °F | Nylon 6/6 | 3.6 | 0.375 in | 0.5 | |
60SPG00005 | Natural | 0.375 in | .375 in | 6.9 x 7.4 mm | 0.375 | 185 °F | UL94 V-2 | #8;#10 | -40 °F | Nylon 6/6 | 3.6 | 0.375 in | 0.5 | |
60SPG00002 | Natural | 0.375 in | 0.187 in | 6.9 x 7.4 mm | 0.187 | 185 °F | UL94 V-2 | #8;#10 | -40 °F | Nylon 6/6 | 3.6 | 0.375 in | 0.5 | |
60SPG00003 | Natural | 0.375 in | 0.250 in | 6.9 x 7.4 mm | 0.250 | 185 °F | UL94 V-2 | #8;#10 | -40 °F | Nylon 6/6 | 3.6 | 0.375 in | 0.5 | |
60SPG00006 | Natural | 0.375 in | 0.500 in | 6.9 x 7.4 mm | 0.500 | 185 °F | UL94 V-2 | #8;#10 | -40 °F | Nylon 6/6 | 3.6 | 0.375 in | 0.5 |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
60SPG00001
Color
Natural
Head Length
0.375 in
Spacer Length
0.125 in
Hole Size
6.9 x 7.4 mm
60SPG00004
Color
Natural
Head Length
0.375 in
Spacer Length
.312 in
Hole Size
6.9 x 7.4 mm
60SPG00005
Color
Natural
Head Length
0.375 in
Spacer Length
.375 in
Hole Size
6.9 x 7.4 mm
60SPG00002
Color
Natural
Head Length
0.375 in
Spacer Length
0.187 in
Hole Size
6.9 x 7.4 mm
Per page:
1–5 of 7
